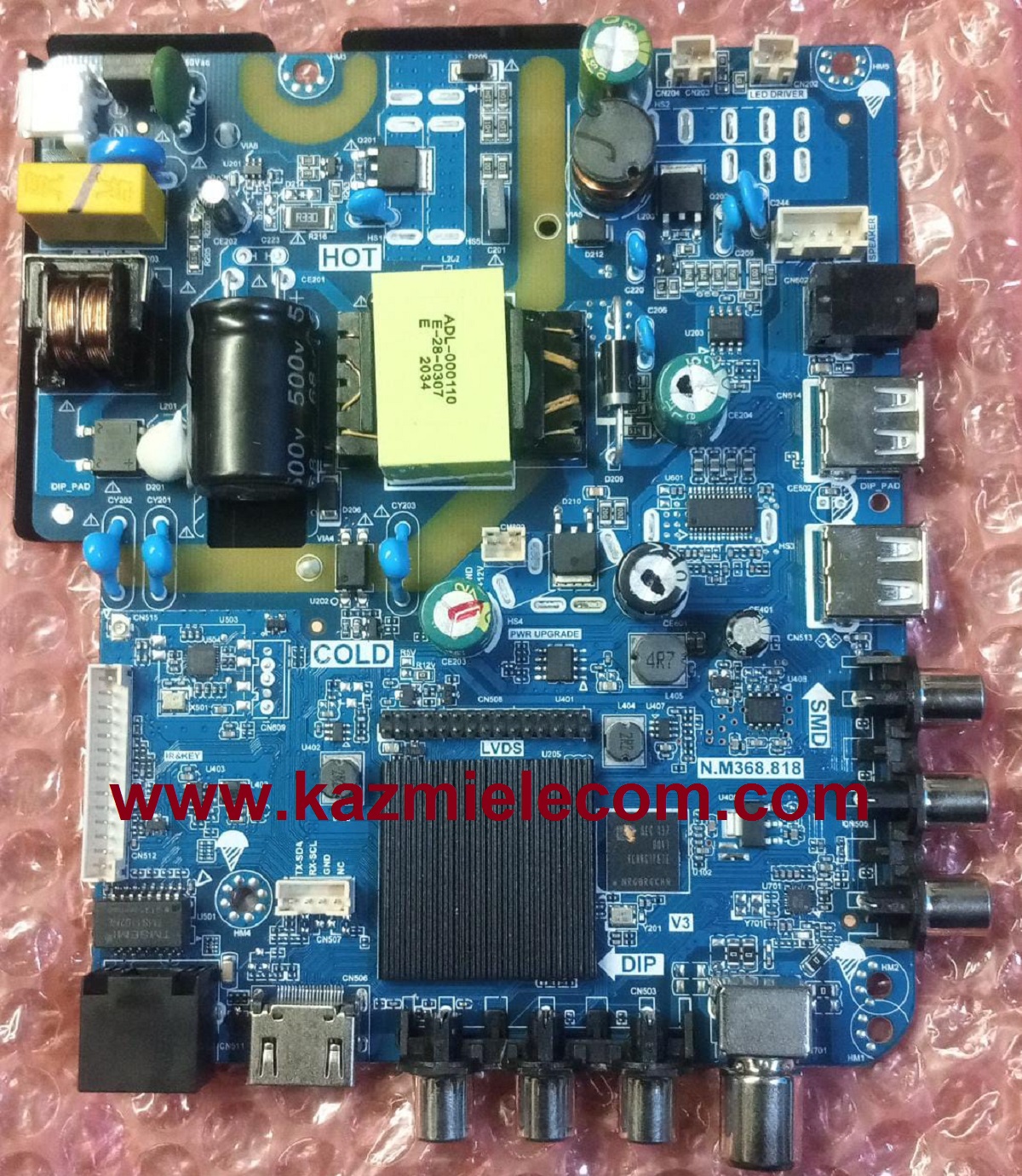

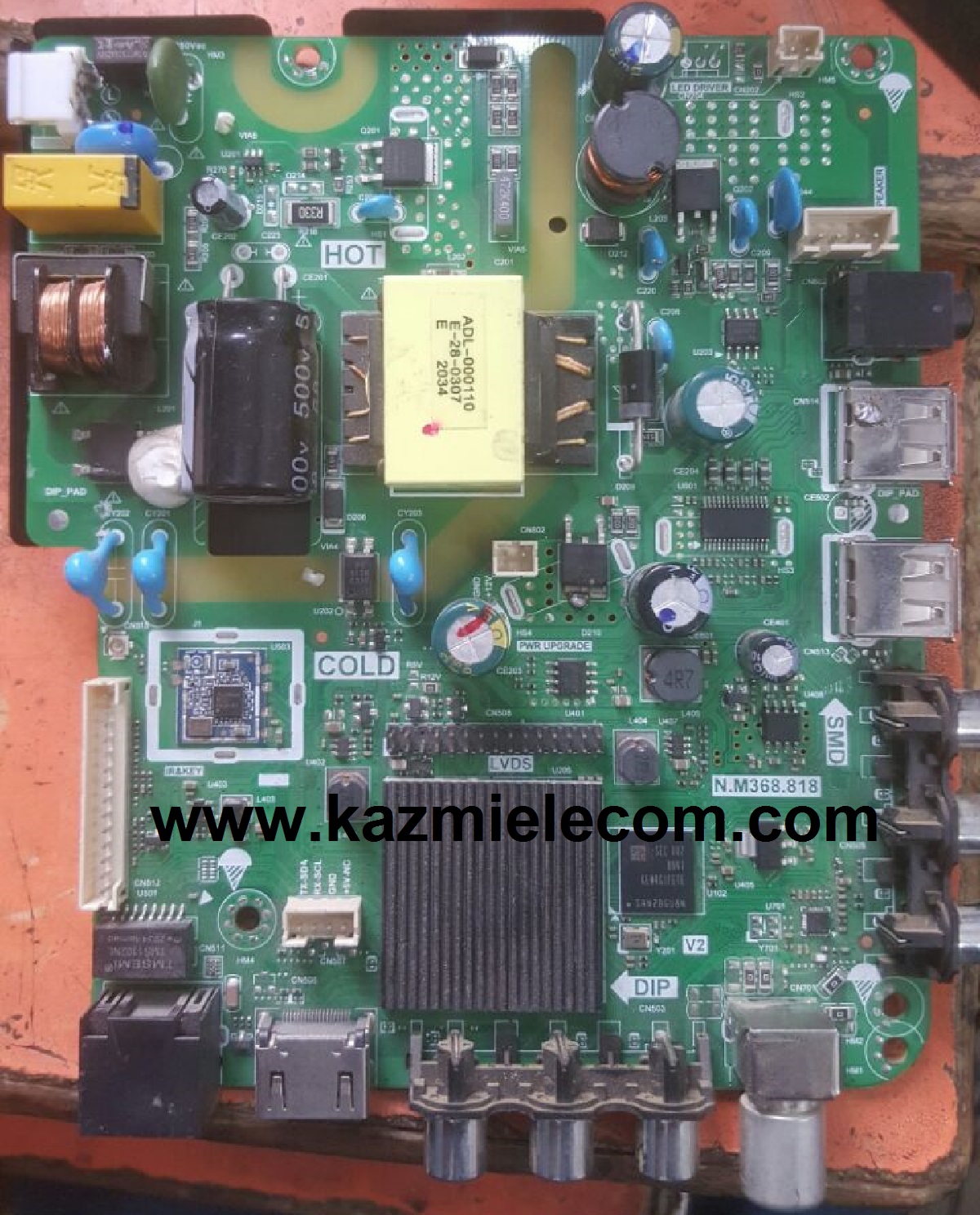

N.M368.818 Android Board
N.M368.818 is a smart android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, with maximum resolution up to 1920×1080 FHD. N_M368_818 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board integrated into a single motherboard. N-M368-818 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It also builtin a Wireless interface.
N.M368.818 came with some brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files. N M368 818 supports analog TV signals, and digital TV (DVB-C/T/T2). N-M368-818 firmware file is given below for the technician’s support. If you are facing any issue during firmware installation then visit and read here first.
General Specifications:
Model: N.M358.818
Main Chipset: MSD6A368
Resolution Supported: 1920×1080
CPU: Quad-core ARM core processor A53
GPU: Dual Core
OS: Android 9.0
Ram: 512 MByte /1 GByte
Rom: 4GByte/8GByte emmc flash
Audio Output Power: 2X8 W (8Ω)
Backlight: 54-64v 350mA
Backlight Power: 48w
Service Code: Menu 1147
Firmware File: MstarUpgrade368.bin
Firmware Type: USB upgradeable Firmware
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware.
How to Download Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here is below N.M368.818 Firmware files for Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | N.M368.818_1366X768_512M_4G_SAMSUNG.part1 | Download |
| N.M368.818_1366X768_512M_4G_SAMSUNG.part2 | Download | |
| N.M368.818_1366X768_512M_4G_SAMSUNG.part3 | Download | |
| 2 | N.M368.818 1920X1080_512M_4G_SAMSUNG.part1 | Download |
| N.M368.818 1920X1080_512M_4G_SAMSUNG.part2 | Download | |
| N.M368.818 1920X1080_512M_4G_SAMSUNG.part3 | Download |
sir pleaz 1920x 1080 n.m368.818
NA
Sir (N. M368. 818) ka 3 parts hn in 3no ko download kry or ohir 3no ko extract kr k pen drive m copy kryn? Ya phir koi ak. Same hn?
all 3
Sir kya android 9 se android ko update kr sakhta hai is wali board ko
No
N.M368.818 1920×1080 hy ksi bhai k pas
Sir I need resolution code
N.m368 818
sir softwear download hu gaya. magar led run nahi kar rahi hy. 3 parts lykar extract bhi kar liye hy.
https://www.kazmielecom.tech/how-to-load-firmware/
Sir meri led sirf cable chala rahi hai os k elawa na setting show kr rahi hai aur logo sirf black ho jati cable py agar vol + kro to jahan tk vol signe hota hai wahan tk display deti pir jab khatam ho jata hai to pora display deti hai
Sir meri led sirf cable chala rahi hai os k elawa na setting show kr rahi hai aur logo sirf black ho jati cable py agar vol + kro to jahan tk vol signe hota hai wahan tk display deti pir jab khatam ho jata hai to pora display deti hai
Dukan py chack krai to kehta software problum hai
reset karen
pleas softwar N.M368-818 chahiya
download
KK.M368.818
HD 512
Software required sir
Meri led ka board nuber hai N.M368.818
N.H352.818 USB FROMWIRE SOFTWARE
Sir reset nhe ho raha jab menu press krta hn to screen black ho jati hai kuch show nhe krta is lye reset nhe ho skta ab kia kro
load software
PLEASE SIR SEND ME SOFTWARE OF N.M368.818 AND TELL ME ABOUT HOW LOAD IT
THANKS
download from the site and read the following:
https://www.kazmielecom.tech/how-to-load-firmware/
Please sir if you don’t mind agar app N.M368.818 board ka software load ka ek clip bana k post kar den to app ki bohot mehrbani ho gi kyo k meri led boot nhe kar rahi
please ek video is board ki bhi bana den please
Hi i need this mother board specification. and i need same mother board software of 1GB/8GB
Assalam o alaikum
Sir
N.M368.818 ka software load krny k bad remot nhe chal raha ab kia kro
Aur language py aa k settting roki hoi hai botton se kam nhe chal raha
w.salam use universal remote control
aslam u alikum
Need
n.m368.818 1920 x 1080
Softwear
Sir software boot kese kare ga usb m file rakhe h boot nh kr rahi
https://www.kazmielecom.tech/how-to-load-firmware/
Is bord ka volt data bhjo bhai
Sir aslam alekum sir mene n.m368.818 board working condition me board thaa per mene software upgrade kia usb se apki sit se download kia per board red light per on nahi ho rah hai please sir koi solution bata dee
software sahi se load nai hua. ab isko jtag karen
Dear Kazmi,
Brother I Need This
( Software Version: svn563
Board Software:- NM368_818 in 1920*1080 )
Latest 2023/2022 update.
I Already Using ( 23/11/2021 ) Version But Alot bug in this software.
not update auto, not open youtube, not login gmail, So
if You Have software Please Share The Software
Regards,
Dear Husnain,
can not update chinese boards firmware. installed version is final
hello Kazmi sir can you please provide resolution code for this board N.M368.818 for 1920×1080 resolution ?
resolution code not available for this board
Sir i have an little problem with my tv Whenever I play a 1080p video on YouTube, my TV starts malfunctioning. It presses the source button on its own and begins switching to ATV by itself. Can you help me understand why this is happening? I have also tried reinstalling the software, but that did not resolve the problem 🙂
maybe a hardware issue, better to visit the technician
N.H352.819 usb update
thanks you
AoA sir, All files in these folders have same name how can i send all at once to USB with same name?
https://www.kazmielecom.tech/how-to-load-firmware/
Sallam boss
Boss mujy NM368-818 ka update version chaiye mery pass Jo hai wo android 10.0 or 21 10 2022 ka software version hai , jis ki Waja sy Netflix nahi chal raha hai
Update not available
n.m358-818 ka latest firmware chahiye android 9 ya 10 ho
isme android version upgrade nai hota
Doran Flash light chali gayi ab yeh dead card flash karwana
jtag hoga programmer se kisi technician se karwa len ya phir latest version ka new board lagwa len
