N.M358.809 Firmware Free Download

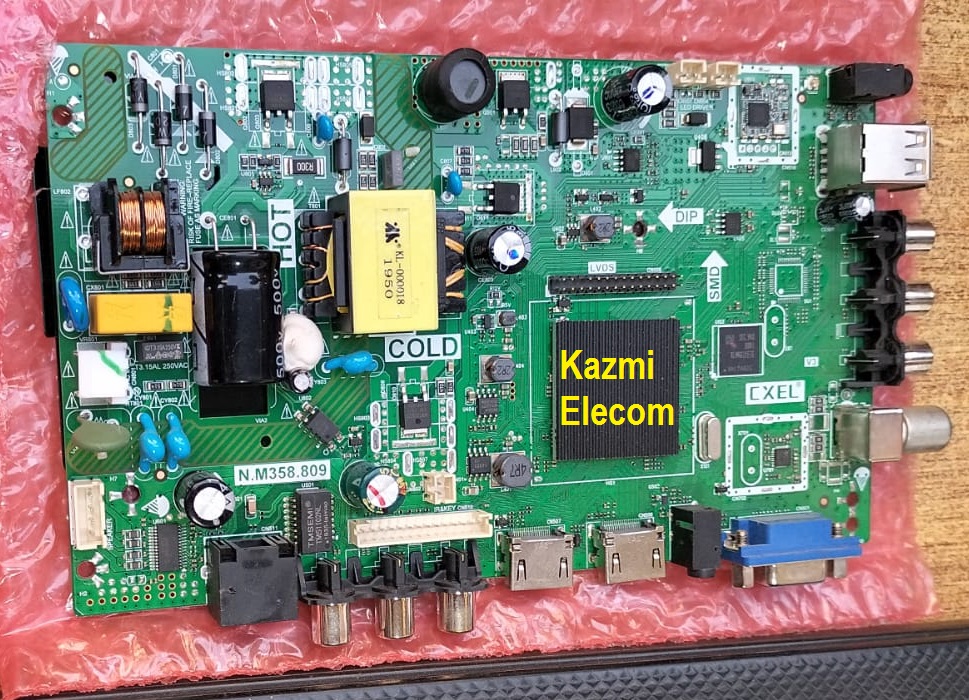

N.M358.809 Smart Android Board

N.M358.809 is a smart android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, maximum resolution up to 1920*1080. N_M358_809 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board is integrated into a single motherboard. N-M358-809 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It also builtin a Wireless interface. N M358 809 came with some brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files.

N.M358.809 support for analog TV signals, digital TV (DVB-C/T/T2). N.T.M358.809 firmware file is given below for the technician’s support. If you are facing any issue during firmware installation then visit and read here first.

N.m358.809_Firmware

General Specifications:

Model: N.M358.809

Main Chipset: MSD6A358ATG-8-003D

Resolution Supported: 1920×1080

CPU: Quad-core ARM core processor A53

GPU: Dual Core

OS: Android 4.4/8.0

Ram: 512 MByte (Android 4.4)/1 GByte (Android 8.0)

Rom: 4GByte/8GByte emmc flash

Audio Output Power: 2X8 W (8Ω)

Backlight: 54-64v 350mA

Backlight Power: 48w

Service Code: Menu 1147

Firmware File: MstarUpgrade358.bin

Firmware Type: USB upgradeable Firmware

Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware.

How to Download N.M358.809 Firmware Files:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here

Here is below N.M358.809 Firmware files for Free Download:



S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1N.M358.809_1366X768_512M_4G_PAKISTAN.part1Download
2N.M358.809_1366X768_512M_4G_PAKISTAN.part2Download
3N.M358.809_1366X768_512M_4G_PAKISTAN.part3Download
