N.M358.803 Software Free Download

N.M358.803 Smart Android Board

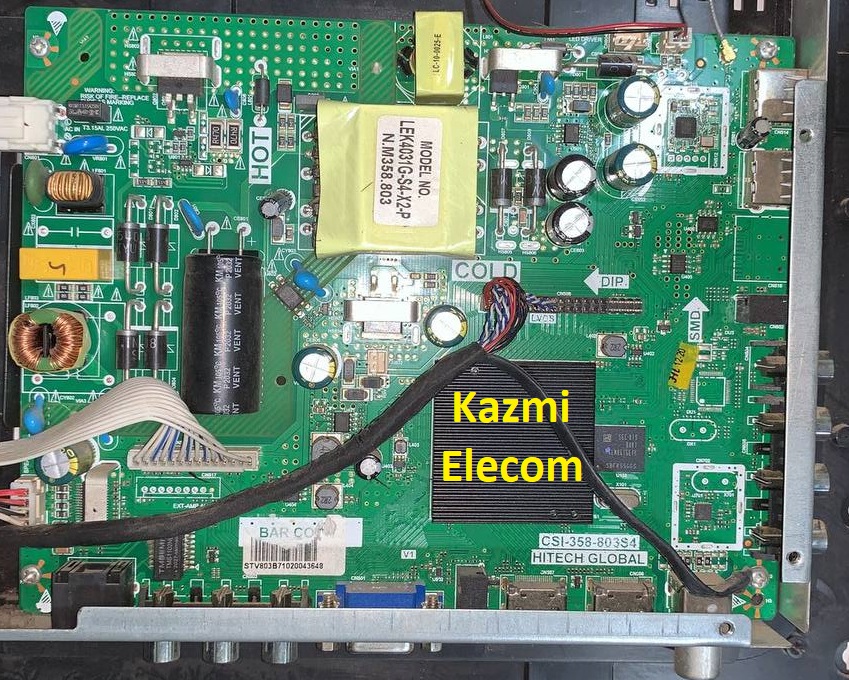

N.M358.803 is a smart Android Intelligent Network LCD/LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, with maximum resolution up to 1920*1080. N_M358_803 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board integrated into a single motherboard. N-M358-803 has multiple input interface ports like USB, HDMI, AV, Scart port, and LAN port for wired internet connectivity. It is also built in a Wireless interface.

N.M358.803 came with some brand LED TVs. Its USB interface can be used for loading software as well as for playing multimedia files. N M358 803 supports analog TV signals, and digital TV (DVB-C/T/T2). N-M358-803 firmware file is given below for the technician’s support.

N.m358.803

General Specifications:

Model: N.M358.803 CSI-358-803S4 HITECH GLOBAL

Main Chipset: MSD6A358

Resolution Supported: 1920×1080

CPU: Quad-core ARM core processor A53

GPU: Dual Core

OS: Android 4.4/8.0

Ram: 512 MByte (Android 4.4)/1 GByte (Android 8.0)

Rom: 4GByte/8GByte emmc flash

Features: TV,DTV,RJ45,AV IN*2,HDMI IN*2,USB IN*2,VGA, PC AUDIO IN,COAX OUT, EARPHONE OUT

TV: PAL/DTMB/DVB-C/DVB-T/DVB-T2

Audio Output Power: 2X8 W (8Ω)

Backlight: 45-54.4v

Backlight Current: 680mA

Backlight Power: 45~65w

Service Code: Menu 1147

Firmware File: AutoMST358Upgrade.bin

Firmware Type: USB upgradeable Firmware

Note:  The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download N.M358.803 Firmware Files:

Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. For more details about the download process watch the video Click Here

N.M358.803 Firmware files for Free Download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
