MSTV2409-ZC01-01 Firmware Free Download

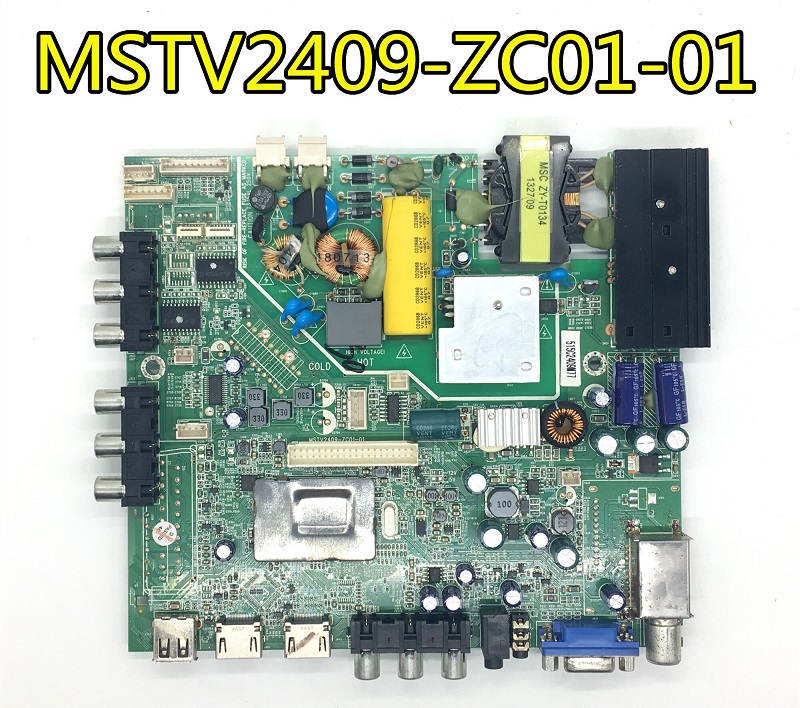

MSTV2409-ZC01-01 LED TV Board

MSTV2409-ZC01-01 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 39-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. TUSMV59.ZC01-01 has multiple HDMI ports that support 1.4 and its HDCP support 1.1. MSTV2409_ZC01_01 is compatible with Non-HD and FHD LCD/LED panel screens. MSTV2409-ZC01-01 is widescreen-supported and also has a multi-language option. MSTV2409-ZC01-01 has its special feature of Dual AV extendable.MSTV2409-ZC01-01 software collection is given below for free download.

Download Here

General Specifications:

Board Make: China

Board Model: MSTV2409-ZC01-01

Main Chipset: TSUMV59

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V DC (Default 12V)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Firmware Type: Backup Dump, USB Upgrade

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

MSTV2409-ZC01-01 Firmware Collection Free Download:

S.NO.	BOARD/DESCRIPTION	D.LINK-1	D.LINK-2
1	MSTV2409-ZC01-01_1366x768_AOC_Dump	Download	Download
2	MSTV2409-ZC01-01_1366x768_HAIER_Dump	Download	Download
3	MSTV2409-ZC01-01_1366x768_Orient_Dump	Download	Download
4	MSTV2409-ZC01-01_1366x768_Philips_Firmware	Download	Download
5	MSTV2409-ZC01-01_1366x768_TCL_Dump	Download	Download
6	MSTV2409-ZC01-01_1366x768_TCL_Firmware	Download	Download
7	MSTV2409-ZC01-01_1366x768_Videocon_Dump	Download	Download
