MSOV591-ZC01-01 Firmware Free Download

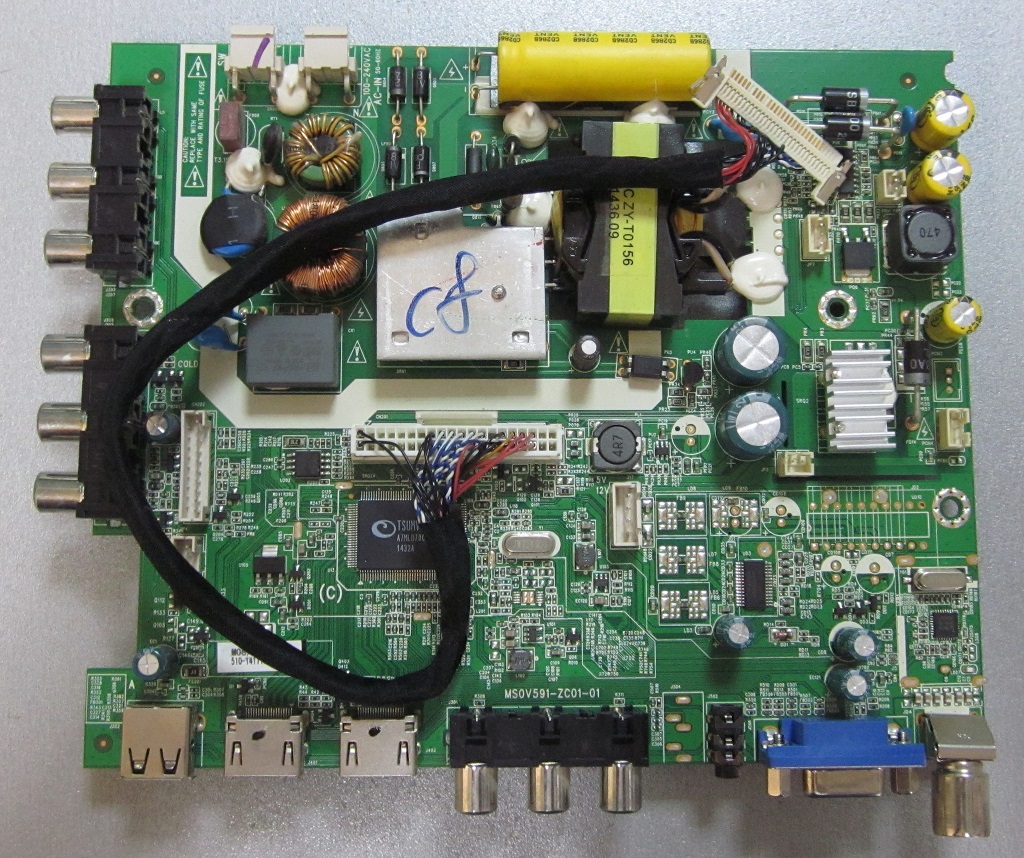

MSOV591-ZC01-01 LCD/LED Tv Driver Board

MSOV591-ZC01-01 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 42-Inches LED panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. MSOV591_ZC01_01 has multiple HDMI ports that support 1.4 and its HDCP support 1.1. MSOV591.ZC01.01 is compatible with Non-HD and FHD LCD/LED panel screens. MS0V591-ZC01-01 is widescreen-supported and also has a multi-language option. MSOV591-ZC01-01 has its special feature of  AV.MS0V591-ZC01-01 software collection is given below for free download.

Msov591-Zc01-01_Firmware

General Specifications:

Board Make: China

Board Model: MSOV591-ZC01-01

Main Chipset: TSUMV59XUS-Z1

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V DC (Default 12V)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Factory Code: Input/Source 2580

Firmware Type: Backup Dump

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download MSOV591-ZC01-01 Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

MSOV591-ZC01-01 Firmware Collection Free Download Here :

Kazmi-Elecom

S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1MSOV591-ZC01-01_1366x768_ELRYAN_Backup_DumpDownload
2MSOV591-ZC01-01_1366x768_Haier-R842_Mirror_DumpDownload
3MSOV591-ZC01-01_1366x768_Haier-R842_Normal_DumpDownload
4MSOV591-ZC01-01_1366x768_Orient-18275_Mirror_DumpDownload
5MSOV591-ZC01-01_1366x768_Orient-18275_Normal_DumpDownload
6MSOV591-ZC01-01_1366x768_Orient-R842_Mirror_DumpDownload
7MSOV591-ZC01-01_1366x768_Orient-R842_Normal_DumpDownload
8MSOV591-ZC01-01_TCL LED32D8810_Backup_DumpDownload

For video tutorials, visit “Kazmi Elecom” my youtube channel.
