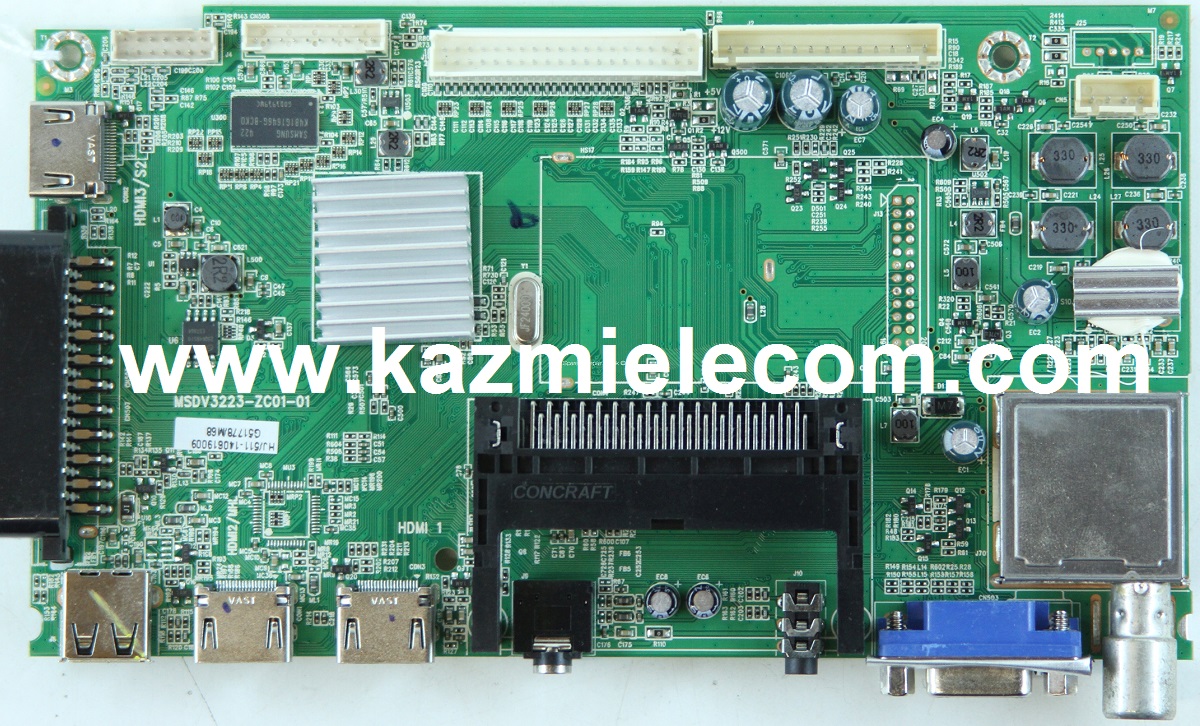

MSDV3223-ZC01-01 LED TV Board
MSDV3223-ZC01-01 is a simple ATV Driver Motherboard designed for LCD/LED TVs. MSDV3223_ZC01_01 board is suitable for the Asia Pacific and the Middle East markets. It is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately and an ATV card is builtin into this motherboard. MSDV3223 ZC01 01 has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.MSDV3223-ZC01-01 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: MSDV3223-ZC01-01
Main Chip:
Product: LED TV
LED Backlight:
Flash IC: 8Mb
Sound Chip:
Tuner IC:
Screen supported: 39-50 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Source/Input
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
How to Download Firmware Files:
Download all parts of the following firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
MSDV3223-ZC01-01 firmware for free download:
- MSDV3223_ZC01-01_1920x1080_HAIER
- MSDV3223_ZC01-01_1920x1080_JVC
- MSDV3223_ZC01-01_1920x1080_MGS
- MSDV3223_ZC01-01_1920x1080_MYSTERY
- MSDV3223_ZC01-01_1920x1080_YASIN
For video tutorials, visit “Kazmi Elecom” my youtube channel.
