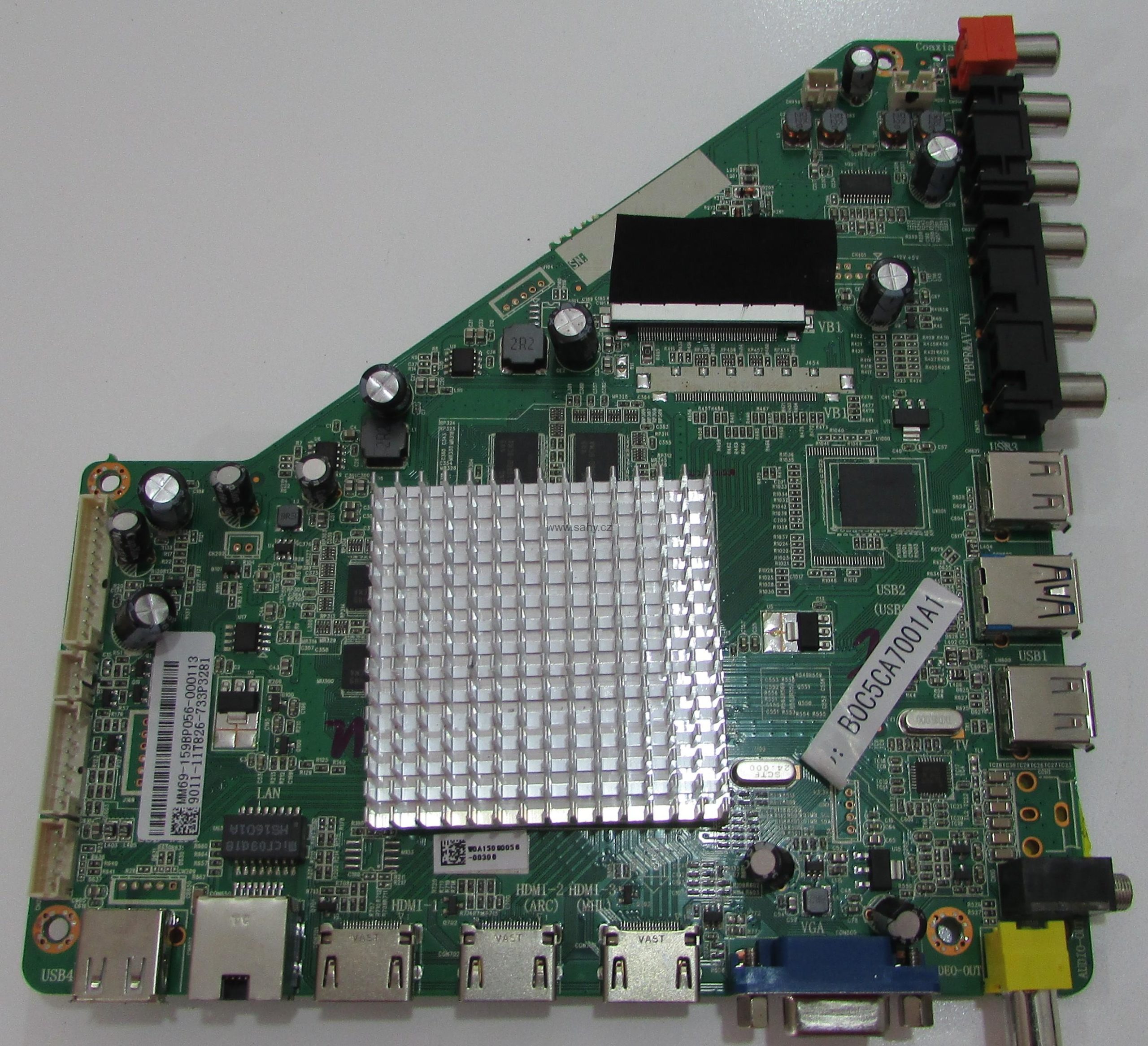

MSD6A918-T8E 4k Smart LED TV Board
MSD6A918-T8E is a smart Android 4K2K LCD/LED Driver Board. MSD6A918_T8E can support resolution up to 2K and 4K Panels. MSD6A918 T8E is a Multi-Purpose LED FHD TV Control Board. MSD6A918.T8E has multiple input/output interface ports like WIFI, RJ45, USB 2.0, HDM 2.0, VGA, AV, YPbPr, and Analog TV input, and also supports Optical and earphone output.
MSD6A918-T8E is based on the Operating System Android. MSD6A918.T8E firmware can be updated by the USB interface. Here is below MSD6A918.T8E firmware file available for the Technician’s support.
General Specifications:
Model No: MSD6A918_T8E
CHIPSET: MSD6A
POWER To Panel: 12V
CPU: Dual-Core
RAM:
ROM: EMMC Flash
Resolution Format: 1080,2160
OS: Android
Network: Support Ethernet, WIFI, 3G
System update: Support USB/SD update
AC Input Requirement: 100 ~ 240V
Low power consumable mode: standby≤0.5W
Factory Code: 8202
Firmware Name: MstarUpgrade.bin
Firmware Type: USB Upgradeable
Product: Sansui, Philips, India
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
MSD6A918-T8E firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | MSD6A918_T8E_Philips_42PUT7590_India.part1 | Download |
| MSD6A918_T8E_Philips_42PUT7590_India.part2 | Download | |
| MSD6A918_T8E_Philips_42PUT7590_India.part3 | Download | |
| MSD6A918_T8E_Philips_42PUT7590_India.part4 | Download | |
| MSD6A918_T8E_Philips_42PUT7590_India.part5 | Download | |
| 2 | MSD6A918-T8E-SANSUI-SNP40F618XAF-INDIA.part1 | Download |
| MSD6A918-T8E-SANSUI-SNP40F618XAF-INDIA.part2 | Download | |
| 3 | MSD6A918-T8E_Videocon_VML43QH0ZSA_India.part1 | Download |
| MSD6A918-T8E_Videocon_VML43QH0ZSA_India.part2 | Download | |
| MSD6A918-T8E_Videocon_VML43QH0ZSA_India.part3 | Download | |
| MSD6A918-T8E_Videocon_VML43QH0ZSA_India.part4 | Download | |
| MSD6A918-T8E_Videocon_VML43QH0ZSA_India.part5 | Download |
Hi
Thanks For Sharing This Files
1- Can I Use This Files To Changing Firmware Philips 65PUF6059/T3 (China) With Same MainBoard ?
2- After Change , Language is English Or Endian ?
3- How To Replace Firmware
Thank You Very Much My Friend
yes it is possible but on your own risk. this is Indian version and have English Language support
thx
dear site administruator
Hi
i have a question for you :
i have a PHILIPS 65PUF6059/T3 tv that has a smart system in chinese and i want to convert the firmware software of the tv to english .
my tv board is similar to the board of this tv,is it possible to use the software of this tv for my tv?
thanks
yes it is possible but on your own risk. first check the language option in setting may be it supports english
hi
thank you for answering my question.
please teach me the steps of installing update software through usb on philips 65puf5960/T3.
thank you very much
Hello
I have Videocon vmm55qh0zsa 55 /4k uhd android led with msd6a918 mainboard.
i am getting popup error continously as “unfortunately the process com.google.process.gapps has stopped” and i am not able to do anything. if I go in settings to reset device tv gets restart.
how to hard reset or reinstall its firmware/software.
menu 8202 is also not working
please tell me hot to boot from pendrive to update firmware which keys should i press for hard reset
reinstall firmware if you have the usb upgrade file for videocon
Thanks Sir, I have Noble 42 inch 4K tv and this tv is using MSD6A918-T8E motherboard. It was working fine but HDMI was started giving reverse current and all ports of HDMI stopped working. I thought to try other ports like VHF but before that, some error popped up which I was not able to read and TV stopped working, even light in power button itself not coming. There is no support available currently for my TV. Can you please help?
maybe hardware issue. you should visit a local technician
Thanks sir, I got my old motherboard, that has software issue. Its MSD6A918-T8E motherboard, and my Noble 4K 42 inch TV goes black and after sometime some flickering of boot screen is happening and then going black. Can you please provide software and instructions please? Thanks in advance
I think hardware issue, not the software
Can you please provide software for noble 4k tv having same motherboard. Also file for making UART on?
In case not available then can I install philips or sansui firmware. If yes then how..tried by putting bin file in usb but nothing happened
Sir, I am getting same motherboard but says it’s of videocon tv.. will it work in my noble TV?
can you provide me usb upgrade file for videocon vmm55qh0zsa
not available
Sir I update Philips firmware update now my remote not working pls help
not for update purpose. use universal remote
Thanks for quick reply I got universal Philips remote control it’s working fine
Now if you help me get an android update file for this Philips software 42put7590 which is currently android 4.3 would be very greatful
Thanks in advance
no need to update. Chinese boards have final version installed in it
hi my smart tv is stuck at the logo. it has msd6a838-t8e bord. Can you provide me the software for that
try to hard reset or bo0t to recovery mode. software not available
My Smat Tv has MSD6A838-T8E board. The software got corrupted not it is showing only android side for 2.5 minutes then turns off automatically. Can i get the software for that
software not available this time. you first try to hard reset
https://www.kazmielecom.tech/category/document/how-to-reset-lcd-led-tv
Hello Sir,
Can you please try to make software available for MSD6A838-T8E.
My Tv 55 inch is showing lines in the picture and also the image is shifted to right.
Please provide software whenever you can.
Thank you.
not available for this board
Thank you for your reply Sir.
Please provide software for MSD6A838-T8E if you get it in future.
Thank you
Not available
software for MSD6A838-T8E board. OS version is 6.0.
Dear sir:
i have a board panasonic msd6a648-t8e suggest me which type of software is better for this card please reply .
the installed version is final. no need to update
