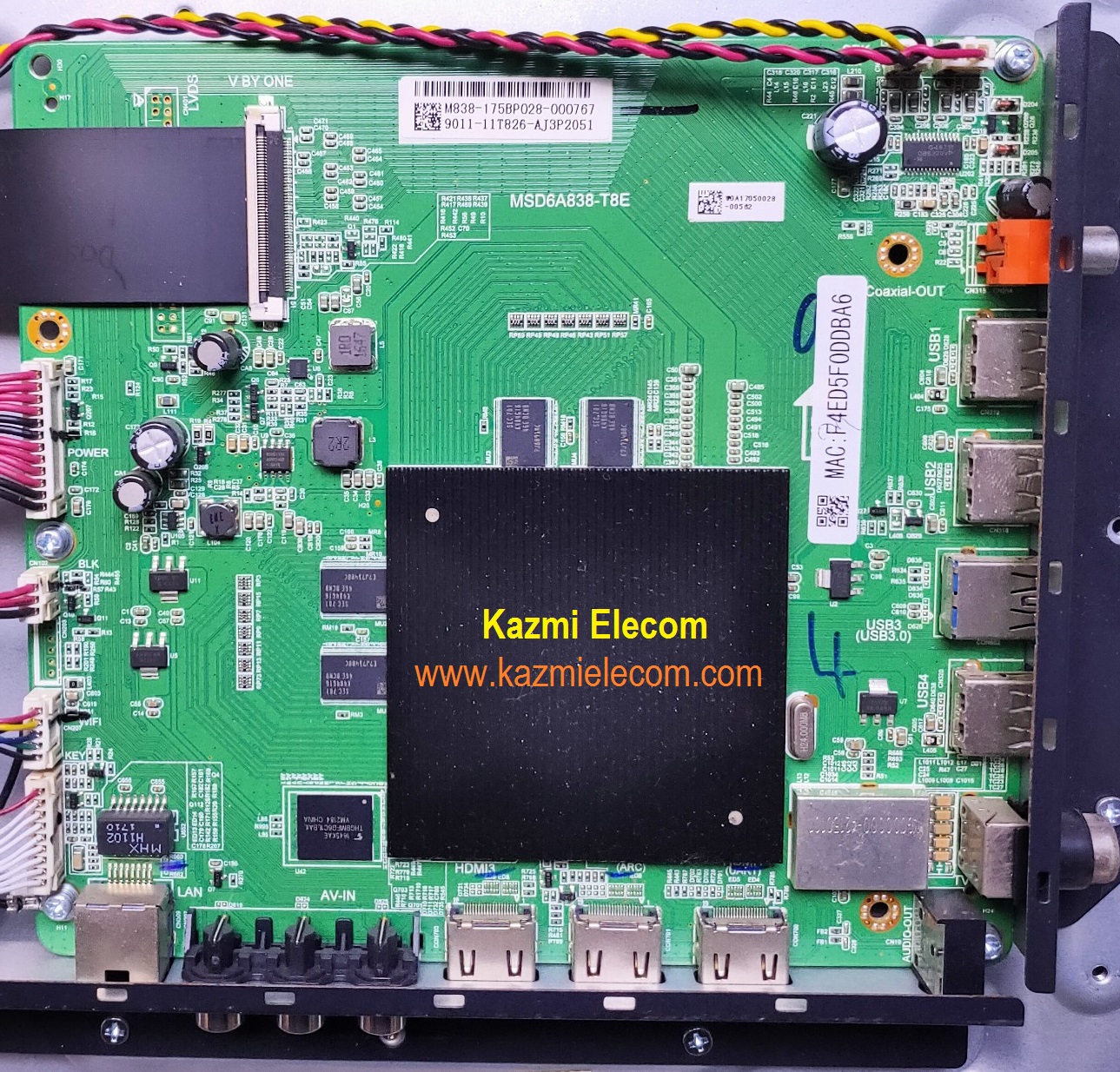

MSD6A838-T8E 4K TV Board
MSD6A838-T8E is an Intelligent smart 4K network driver LED TV board with an Integrated analog and digital terrestrial support resolution of 3840×2160. MSD6A838_T8E is dedicated to 120 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. MSD6A838.T8E has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. MSD6A838 T8E is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital tuner reception DVB-T/T2 (MPEG2, H.264/AVC) signal. MSD6A838- T8E Firmware file is given below for the Technician’s support.
General Features & Specifications:
Brand/Make: 4K Smart Driver Board
Model: MSD6A838-T8E 4704-M838T8-A2233G01
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 6.0
CPU: ARM Cortex-A53/1.5GHz/Quad-Core Pro
GPU: Mali T720MP2
RAM: 2GB
ROM: 8Gb
Sound Output: 10Wx2
Analog Tuner: World 17-System
Digital Tuner: DVB-T/T2 (MPEG2, H.264/AVC)
Video System: PAL/SECAM/NTSC
Power Input: 220-240 V AC
Power Consumption: 160W
Standby Power: 0.5W
Firmware: MstarUpgrade.bin
Firmware Type: USB Updateable Firmware, MSD6A838-T8E program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
- A separate WIFI Card Module and Power Supply Card Module are required for this board
How to Download Firmware:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
MSD6A838-T8E firmware file for free download:
