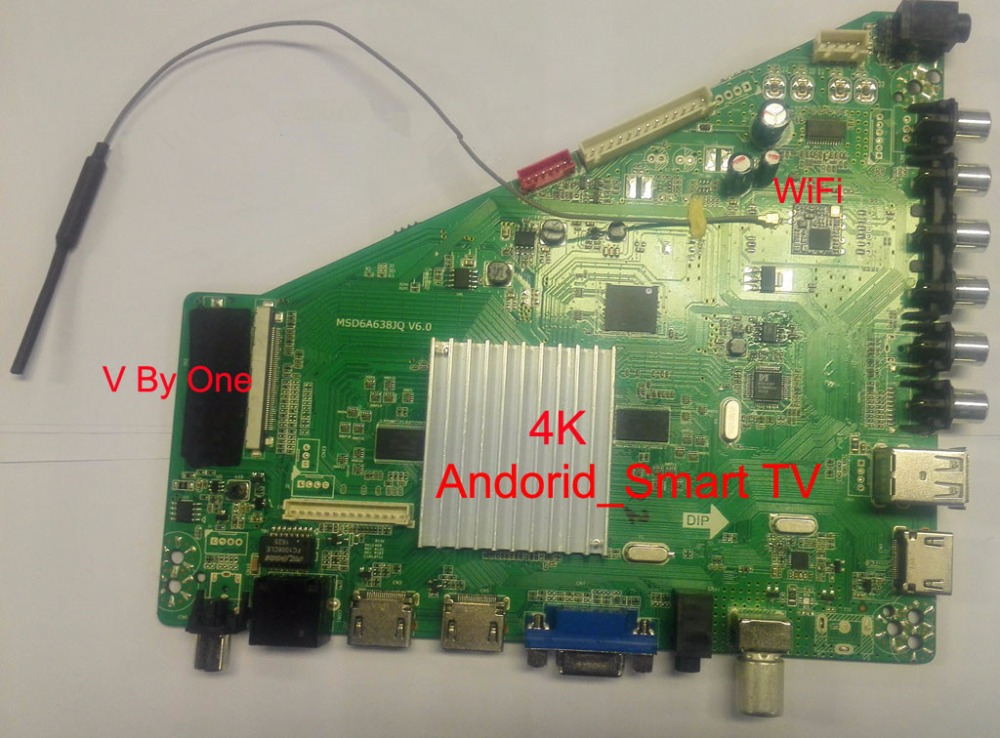

MSD6A638JQ V6.0 4K LED TV Board
MSD6A638JQ-V6.0 is an Intelligent smart 4K network driver LED TV board with an Integrated digital terrestrial receiver support resolution of 3840×2160. MSD6A638JQ_V6.0 is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. MSD6A638JQ.V6.0 has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity. Its USB interface can be used for Firmware upgrades as well as for multimedia playback.
MSD6A638JQ V6.0 is a digital and analog TV board, it can receive the analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2/C) signal. MSD6A638JQV6.0 Firmware file is given below for the Technician’s support.
General Features & Specifications:
Brand/Make: LCD/LED UHD Smart Driver Board
Model: MSD6A638JQ V6.0
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 5.1.1
CPU: ARM Cortex-A53/1.5GHz/Dual-core
GPU: Mali T720MP2/Dual core
RAM: 1GB DDR3 (768M optional)
ROM: 4Gb
Sound Output: 10Wx2 DOLBY
RF TUNER: DIGITAL TUNER DVB-C/C2/T/T2, HEVC (H.265)
Video System: PAL/SECAM/NTSC
Power Input: 220-240 V AC
Power Consumption: 100W
Standby Power: 0.5W
Firmware: MstarUpgrade.bin
Firmware Type: USB Update Firmware, MSD6A638JQV6.0 program data USB
Product: Utec ULDU6501SM
Firmware File:
X101_Kuwait_ULDU6501SM_082B_MSD6A638JQV60_PAL_NO-DTV_1G_4G_V650DJ4-QS5_T3_UTEC_At061_X101_007F_BH-17236_20180303_164050_No
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
- Separate Power Supply Card Module is required for this board
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
MSD6A638JQ V6.0 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | MSD6A638JQV6.0_3840x2160_4G_Utec_Kuwait.part01 | Download |
| MSD6A638JQV6.0_3840x2160_4G_Utec_Kuwait.part02 | Download | |
| MSD6A638JQV6.0_3840x2160_4G_Utec_Kuwait.part03 | Download |
hello sir
the files are missing
can you help me get them
thank you
updated
thank you sir I dl them and install
but I get a split screen and I like to enter service mode but i do not know the service code
the menue is in arabic and i do not know how to change to english.
can you help me
thanks
try one by one menu option to change language
https://www.kazmielecom.tech/category/document/service-menu-codes/
thank you
the major problem i have is the double screens that I can’t change
i succeeded in changing to English but did not find a way to change the double screens
check panel division in service menu otherwise change software
thank you sir
i try all the service cods and no one works.
the only problem i have now is the 2 screens .that i cant change.
