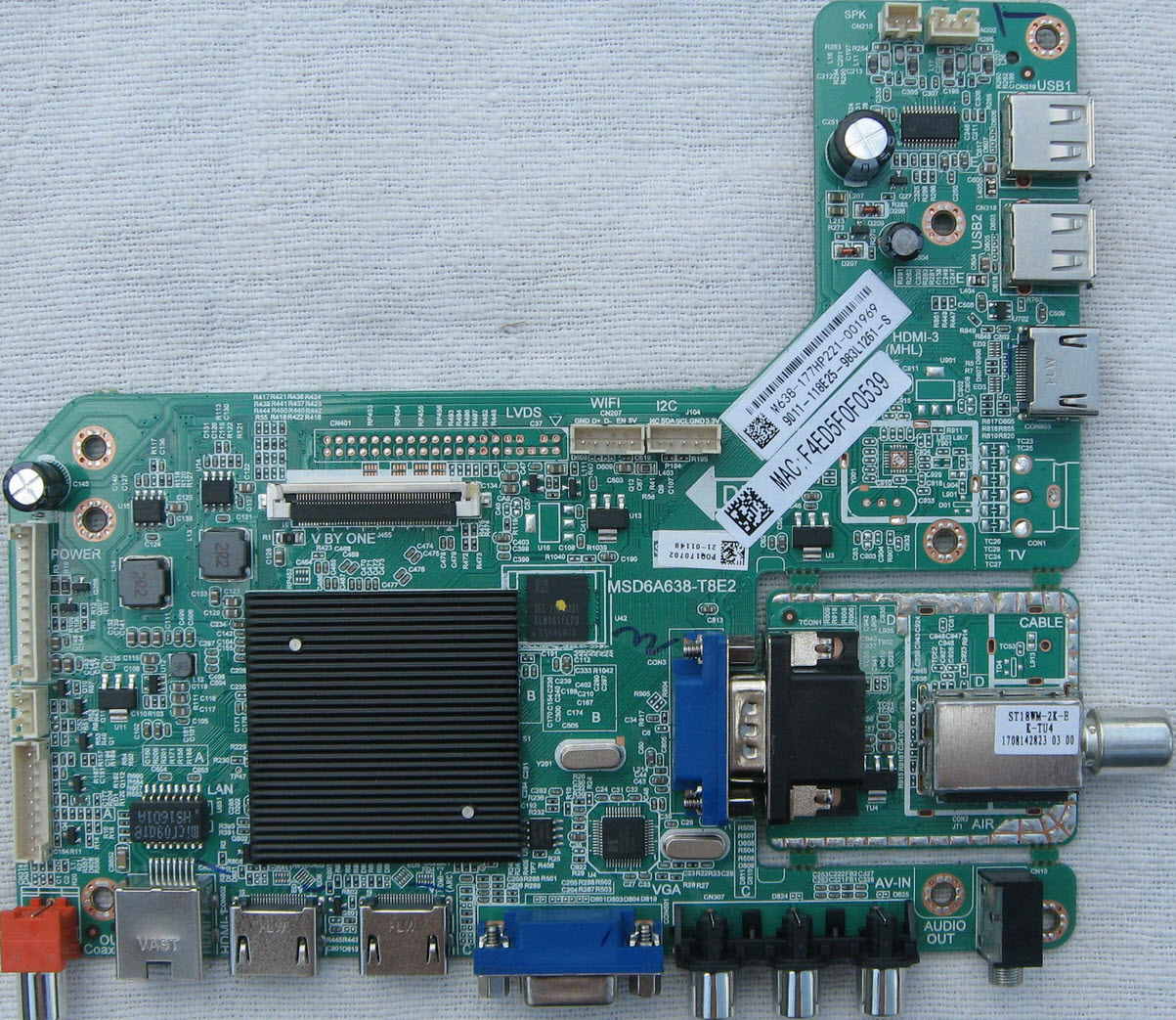

MSD6A638-T8E2 4K UHD TV Board
MSD6A638-T8E2 is an Intelligent smart 4K network driver LED TV board with an Integrated digital terrestrial receiver support resolution of 3840×2160. MSD6A638_T8E2 is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. MSD6A638.T8E2 has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. MSD6A638 T8E2 is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-T/T2/C) signals. MSD6A638-T8E2 Firmware file is given below for Technician’s support. MSD6A638-T8E2 Main Board is used for Toshiba 43U7750EV, 49U7750EV, 55U7750EV, and Philips 43PUH6002 UHD Smart LED TVs. MSD6A638-T8E2 is also used for other Brands’ 4K Ultra HD LED TVs.
General Features & Specifications:
Brand/Make: LCD/LED 4K Smart Driver Board
Model: MSD6A638-T8E2
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 5.1.1
CPU: ARM Cortex-A53/1.5GHz/Dual-core
GPU: Mali T720MP2/Dual core
RAM: 1GB DDR3 (768M optional)
ROM: 8Gb
Menu Language: English, Russian, Arabic, Persian, Hebrew, French, Italian, Spain, Ukrainian, Portuguese
Sound Output: 10Wx2 DOLBY
RF TUNER: DIGITAL TUNER DVB-C/C2/T/T2, HEVC (H.265)
Video System: PAL/SECAM/NTSC
Power Input: 220-240 V AC
Power Consumption: 100W
Standby Power: 0.5W
Firmware: MstarUpgrade.bin
Firmware Type: USB Updateable Firmware, MSD6A638-T8E2 program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing some issues during the loading or installing firmware files then read here first.
- A separate WIFI Card Module and Power Supply Card Module are required for this board
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
MSD6A638-T8E2 Main Board is used for the following Toshiba 4K LED TVs:
- Toshiba 43U7750EV
- Toshiba 49U7750EV
- Toshiba 55U7750EV
- Philips 43PUH6002/96
MSD6A638-T8E2 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | MSD6A638-T8E2_3840x2160_Toshiba_Firmware.Part1 | Download |
| MSD6A638-T8E2_3840x2160_Toshiba_Firmware.Part2 | Download | |
| MSD6A638-T8E2_3840x2160_Toshiba_Firmware.Part3 | Download | |
| MSD6A638-T8E2_3840x2160_Toshiba_Firmware.Part4 | Download | |
| MSD6A638-T8E2_3840x2160_Toshiba_Firmware.Part5 | Download | |
| 2 | MSD6A638_T8E2_3840x2160_Philips_Taiwan.part1 | Download |
| MSD6A638_T8E2_3840x2160_Philips_Taiwan.part2 | Download | |
| MSD6A638_T8E2_3840x2160_Philips_Taiwan.part3 | Download | |
| MSD6A638_T8E2_3840x2160_Philips_Taiwan.part4 | Download | |
| MSD6A638_T8E2_3840x2160_Philips_Taiwan.part5 | Download | |
| 3 | MSD6A638-T8E2_3840X2160_STREAM.part1 | Download |
| MSD6A638-T8E2_3840X2160_STREAM.part2 | Download | |
| MSD6A638-T8E2_3840X2160_STREAM.part3 | Download | |
| MSD6A638-T8E2_3840X2160_STREAM.part4 | Download | |
| MSD6A638-T8E2_3840X2160_STREAM.part5 | Download | |
| 4 | MSD6A638-T8E2_3840x2160_ACONATIC.part1 | Download |
| MSD6A638-T8E2_3840x2160_ACONATIC.part2 | Download | |
| MSD6A638-T8E2_3840x2160_ACONATIC.part3 | Download | |
| MSD6A638-T8E2_3840x2160_ACONATIC.part4 | Download | |
| MSD6A638-T8E2_3840x2160_ACONATIC.part5 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
TCL-LED TV PANEL MIRROR CODE
Azhar bhi jan ksy ho bhi jan MSD6A638 T8E2 WALA SOFTWERE TOSHEBA 55 MA KEYA laken picture zayda bari ho gi hy ksy brabar keron
apne check kia tha k main board aur panel resolution same hy.. bari honi to nai chahye. resolution ka fault ho sakta hy
bahi jan msd6586-t8e2 for tosihba up lod kar dean thanks sir
AoA
Azher saheb i have MSD6A638-T8E2 board with 3840×2160 resulution but i want to use it in the place of
TP.RD8503.PB801 WITH RESULUTION 1920×1080 is it possible?where could i find the software please guide me
some boards/panels have supported to both 4k and 2k. you can try
how to flash = press menu bouton + SOURSE BOUTON pranche 220volt
get idea from youtube videos
Required software for MSD6A638-T8E please help
could you please share MSD6A638-T8E firmware? i only find MSD6A638-T8E2 on your website.
thank you
check hardware specifications if same then you can load but first try to hard reset to avoid loading firmware
I already loaded this firmware, but it didnt work. i switched to tv. the android crushs. any chance to get msda638-t8e firmware???
NA
thanks
msd6a638-t8e2
why my tv stays only in standby. does not access USB software
hardware issue not software
MSD6A638-T8E2 SERVICE MENU CODE ?????
PLEASE
https://www.kazmielecom.tech/2019/04/08/all-lcd-led-service-menu-code.html
Hello
I have tested all the files
All of them are dobul images
What is the solution?
LG display panel 4k
check panel division in the service menu
Hello Kazmielecom,
Model: msd6a638-t8f1
Resolution: 4K
Android Smart
I need firmware can your provide?
msd6a638-t8e2 with screen k550wdc2 ko universal board ke sat change kare tho tv chelega for Toshiba 49u7751
specifications check karen agar match hen to chale ga
Is the mainboard with IC MSD6A638-t8e2 Can use Full HD panel resolution, Is there a firmware msd6a638-t8e2 for 1920×1080 resolution? Or just setting from service mode / factory mode??? Please help sir KAZMI ELECOM
No this is 4k supported
HELLO KAZMI BHAI CAN YOU FIND MSD6A638-T8E BOARD SOFTWARE. I CANT FIND IT ANYWHERE.
never seen this board. i think both are same MSD6A638-T8E and MSD6A638-T8E2. if you have board then send me clear pictures (kazmielecom@gmail.com)
