MSD6A348-T8C2 Smart LED TV Board

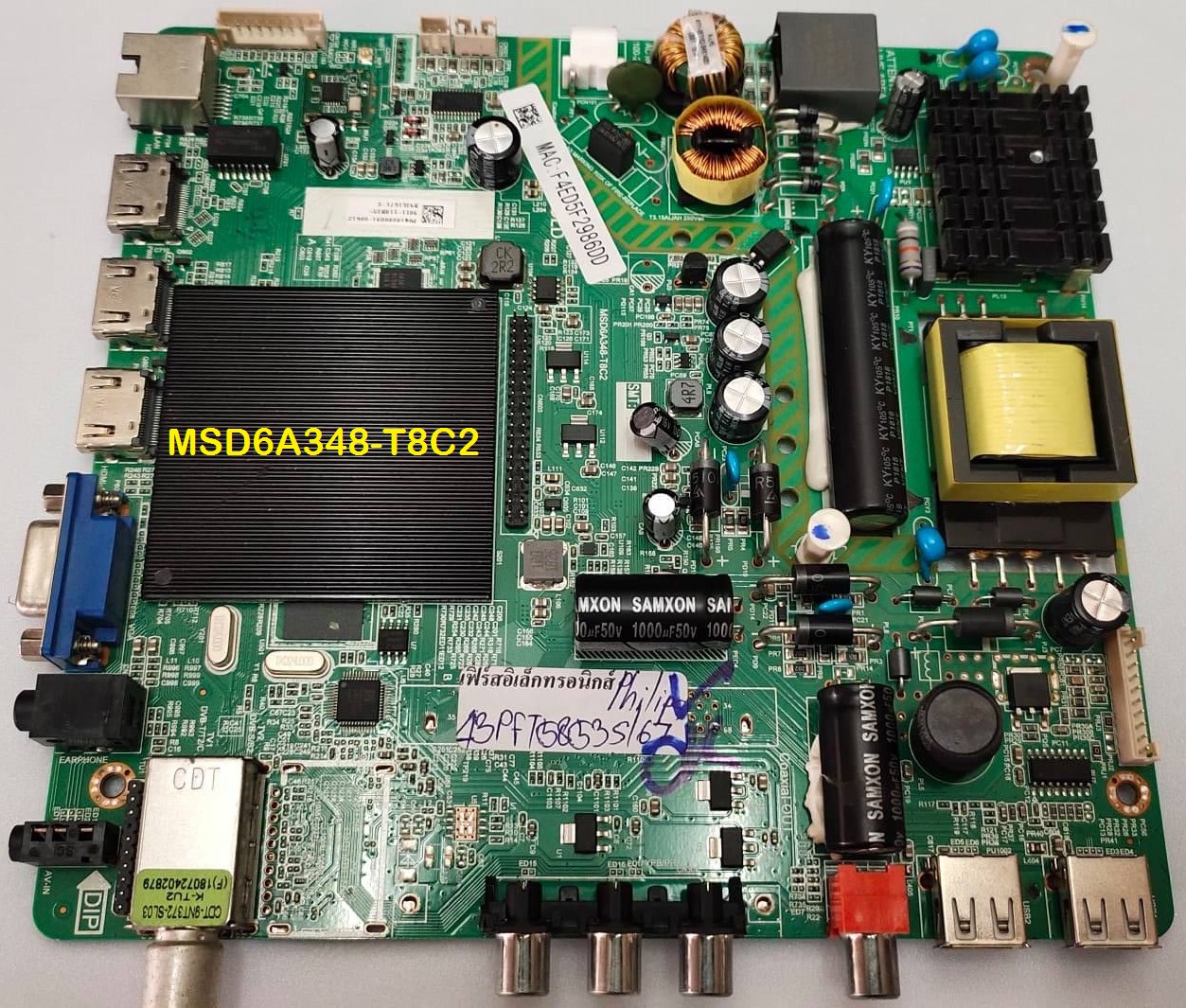

MSD6A348-T8C2 is a smart Android DVBT LCD/LED Driver Board. MSD6A348_T8C2 can support resolutions up to 1920×1080 Full HD Panels. MSD6A348 T8C2 is a Multi-Purpose LED FHD TV Control Board. MSD6A348_T8C2 has multiple input/output interface ports like WIFI, RJ45, USB 2.0, HDM 2.0, VGA, AV, YPbPr, and Analog TV input, and also supports Optical and earphone output.
MSD6A348 T8C2 is based on the Operating System Android. MSD6A348-T8C2 firmware can be updated by the USB interface. Here is the MSD6A348-T8C2 firmware file available for the Technician’s support.
General Specifications:
Model No: MSD6A348-T8C2
CHIPSET: MSD6A348AXO
POWER To Panel: 12V
CPU: Arm Cortex 1.6GHz Quad-Core
RAM: 1 GB
ROM: 8GB EMMC Flash
Resolution Format: 1080
OS: Android 6.0
Tuner: ATV/DTV (Analog / Digital Terrestrial)
Network: Support Ethernet, WIFI, 3G
System update: Support USB/SD update
AC Input Requirement: 100 ~ 240V
Low power consumable mode: standby≤0.5W
Firmware Type: USB Upgrade
Firmware Name: 348_DVBT_8G.bin
Product: Stream LED TV, Ecostar LED TV, Noa Vision LED TV
Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
MSD6A348-T8C2 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | MSD6A348-T8C2-1920x1080-1G-8G-Ecostar.part1 | Download |
| MSD6A348-T8C2-1920x1080-1G-8G-Ecostar.part2 | Download | |
| 2 | MSD6A348-T8C2-1920x1080-1G-8G-Noa Vision.part1 | Download |
| MSD6A348-T8C2-1920x1080-1G-8G-Noa Vision.part2 | Download | |
| 3 | MSD6A348-T8C2-1920x1080-1G-8G-Stream.part1 | Download |
| MSD6A348-T8C2-1920x1080-1G-8G-Stream.part2 | Download |
