MSD66830-ZC01-01 Firmware Free Download

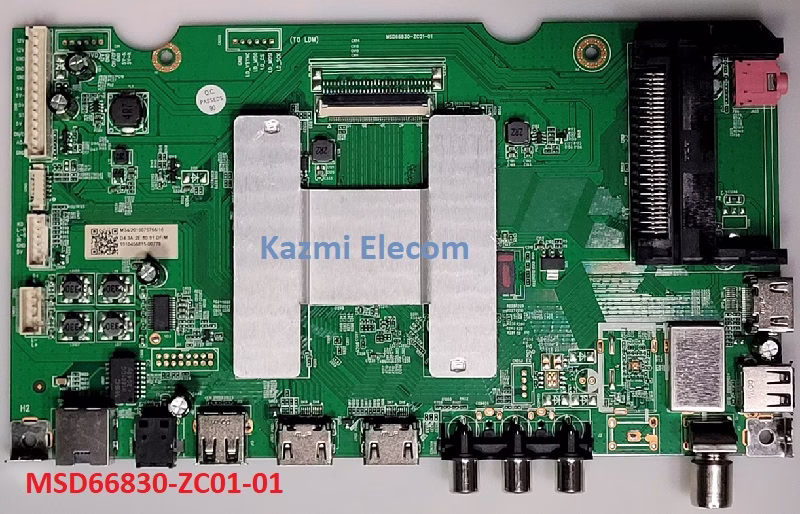

MSD66830-ZC01-01 Smart Android Board

MSD66830-ZC01-01 is a smart Android universal LCD LED TV motherboard. Its maximum supported resolution is 1080P Full High Definition 1920×1080. Its operating system is Android, and the platform version is 9.0 Pie. It has built-in WiFi and also supports screen casting. This board is a Non-Combo board. So, the backlight driver inverter module and the main power supply input module will be required to complete the setup. This board has both TV signal reception systems ATV and DTV.

Download Here

MSD66830-ZC01-01 fully had a smart board with 1 GB RAM and 8 GB ROM EMMC Flash Memory. This board has multiple connectivity interfaces without a PC input interface (VGA) but can be connected through HDMI input. It has a SPDIF optical out interface for digital audio out. It has dual USB input ports for multimedia playback and software upgrades. It has triple HDMI input ports for connectivity of digital FHD devices and an RJ45 ethernet interface for wired internet connectivity.

MSD66830-ZC01-01 General Information:

Board Model: MSD66830-ZC01-01

Main Chipset: MSD6683BQHA-8-00H8

CPU: Quad-Core ARM Cortex-A53 64 Bit

GPU: Dual-Core Mali470MP

Android Version: 9.0 Pie

Resolution: 1920×1080

Audio Power: 2x10W (20 watt 8 ohm)

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 3

CI: Yes

Component: Yes

RJ45: Yes

Analog Tuner: PAL/SECAM/NTSC (AV) BG/DK/I/LL

Digital Tuner: DVB-C, DVB-T and DVB-T2

Wifi: Yes

SPDIF: Yes

Mira-Cast: Yes

Memory (RAM): 1GB DRAM

Storage (ROM): 8 GB EMMC Flash

EMMC: KLM8G1GETF-B041

Power Rating:12 V

Power Consumption: 75 Watt

Firmware Name: upgrade_no_tvcertificate.pkg

Firmware Type: EMMC Backup Dump and USB Bootable

Product User: MGS, JVC, KIVI

MSD66830-ZC01-01 Technical Specifications:

Resolution Full HD 1920×1080 1080P
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound Yes
Dolby Yes
Matrix type LED
Refresh rate 60 Hz
Processor frame 64 Bit ARM Cortex-A53/1, 5GHz/Quad core
GPU Mali470MP
OS version Android
RAM (DRAM) 1GB
ROM (Flash) 8GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 2
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
Game mode Yes
Sleep Timer Yes
HDMI quick switch Yes
DLNA 1.5 Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL/SECAM/NTSC (AV) BG/DK/I/LL
DTV: DVB-C, DVB-T and DVB-T2
Sound power 10w+10w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Social Yes
Web browser Yes
Processor Quad Core
PVR & Timeshift – Yes
Cricket Mode NA
HD Streaming Yes
Miracast, OS Android 9.0, Uniformity+, subtitles, TV guide

How to Write MSD66830-ZC01-01 EMMC Backup:

Download the given MSD66830-ZC01-01 EMMC backup is shared in this post below

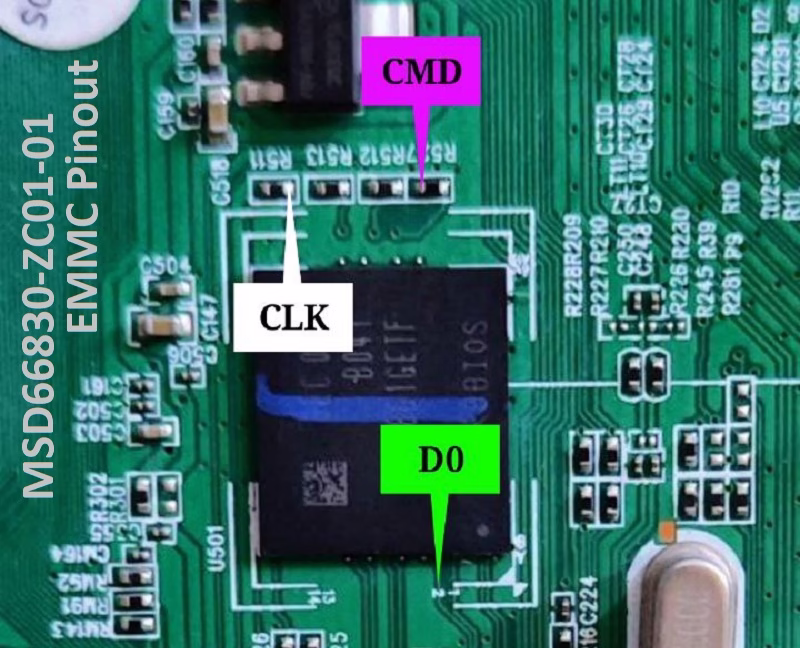

Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following MSD66830-ZC01-01 firmware is a backup dump file. Kazmi Elecom Team is not responsible for any damage/loss caused by uploading/downloading the firmware. First, check and verify the main board, then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files or are facing any issues during firmware installation, then visit and read here first.
