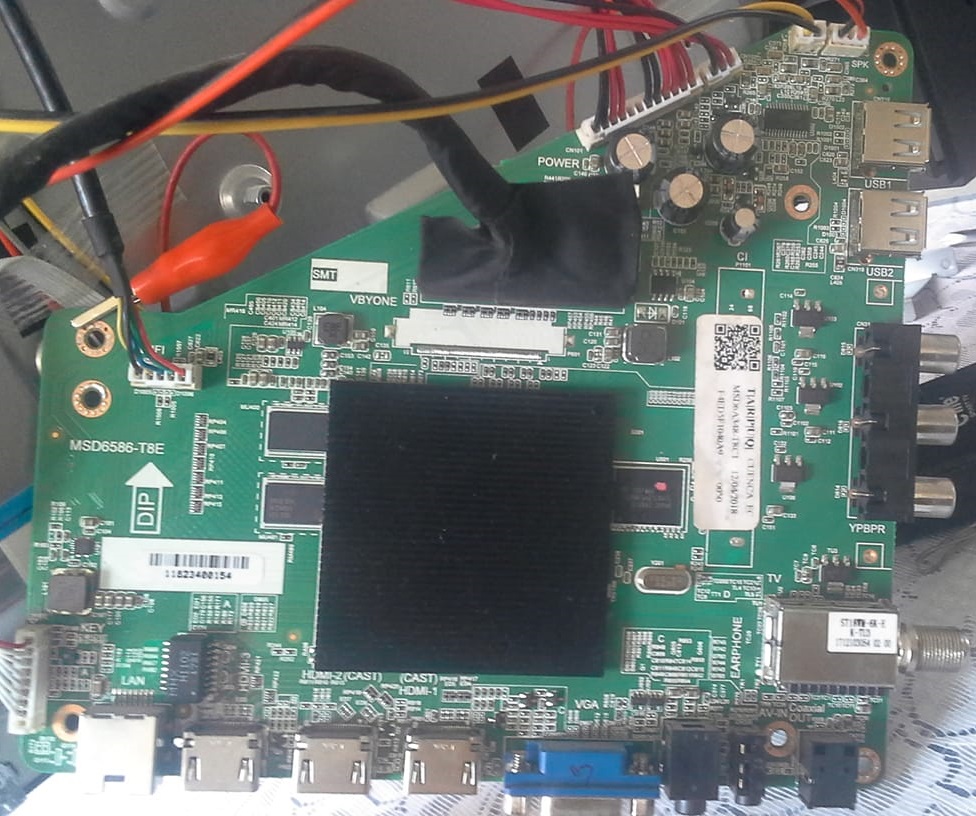

MSD6586-T8E 4k-2K Smart Board
MSD6586-T8E is an Intelligent smart 4K-2K network driver LED TV board with an Integrated digital terrestrial receiver support resolution of 1920×1080 and 3840×160. MSD6586_T8E is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. MSD6586.T8E has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity.
Its USB interface can be used for Firmware upgrades as well as for multimedia playback. MSD6586 T8E is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (ISDB-T/T/C) signals. MSD6586-T8E Firmware file is given below for Technician’s support. MSD6586-T8E Main Board is used for Toshiba, Icesa, Innova, Ecoline FHD, and UHD Smart LED TVs. MSD6586-T8E is also used for other Brands’ 4K Ultra HD LED TVs.
General Features & Specifications:
Brand/Make: LCD/LED 4K-2K Smart Driver Board
Model: MSD6586-T8E
Chipset: MSD6586-ISDB
Supported Resolution: 4K2K
Screen Format: 16:9
Operating System: Android 6.0
CPU: ARM Cortex-A9/1.2GHz/Dual-core
GPU: Mali T450MP2/Dual core
RAM: 1.5 GB DDR3
ROM: 8Gb
Sound Output: 8Wx2
TUNER: Analog & Digital Tuner DVB-C/T/T2
Video System: PAL/SECAM/NTSC
Power Input: 220-240 V AC
Power Consumption: 130W
Standby Power: 0.5W
Firmware: MstarUpgrade.bin
Firmware Type: USB Updateable Firmware, MSD6586-T8E program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
- A separate WIFI Card Module and Power Supply Card Module are required for this board
How to Download MSD6586-T8E Firmware Files:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
MSD6586-T8E firmware file for free download:
By mistake, all firmware names are written as 1920×1080. Actually, some are FHD and a few are UHD.
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | MSD6586-T8E_1920x1080_1.5G_8G_Diggio.part1 | Download |
| MSD6586-T8E_1920x1080_1.5G_8G_Diggio.part2 | Download | |
| MSD6586-T8E_1920x1080_1.5G_8G_Diggio.part3 | Download | |
| MSD6586-T8E_1920x1080_1.5G_8G_Diggio.part4 | Download | |
| MSD6586-T8E_1920x1080_1.5G_8G_Diggio.part5 | Download | |
| 2 | MSD6586-T8E_1920x1080_1.5G_8G_Ecoline.part1 | Download |
| MSD6586-T8E_1920x1080_1.5G_8G_Ecoline.part2 | Download | |
| MSD6586-T8E_1920x1080_1.5G_8G_Ecoline.part3 | Download | |
| MSD6586-T8E_1920x1080_1.5G_8G_Ecoline.part4 | Download | |
| MSD6586-T8E_1920x1080_1.5G_8G_Ecoline.part5 | Download | |
| 3 | MSD6586-T8E-1920x1080-1.5G-8G-Global-USB.part1 | Download |
| MSD6586-T8E-1920x1080-1.5G-8G-Global-USB.part2 | Download | |
| 4 | MSD6586-T8E-1920x1080-1.5G-8G-HYUNDAI-USB.part1 | Download |
| MSD6586-T8E-1920x1080-1.5G-8G-HYUNDAI-USB.part2 | Download | |
| 5 | MSD6586-T8E-1920x1080-1.5G-8G-ICESA-USB.part1 | Download |
| MSD6586-T8E-1920x1080-1.5G-8G-ICESA-USB.part2 | Download | |
| 6 | MSD6586-T8E-1920x1080-1.5G-8G-INNOVA-USB.part1 | Download |
| MSD6586-T8E-1920x1080-1.5G-8G-INNOVA-USB.part2 | Download | |
| 7 | MSD6586-T8E-1920x1080-1.5G-8G-Nakamichi-USB.part1 | Download |
| MSD6586-T8E-1920x1080-1.5G-8G-Nakamichi-USB.part2 | Download | |
| 8 | MSD6586-T8E_1920x1080_8G_EMMC_Ecoline.part1 | Download |
| MSD6586-T8E_1920x1080_8G_EMMC_Ecoline.part2 | Download | |
| MSD6586-T8E_1920x1080_8G_EMMC_Ecoline.part3 | Download | |
| MSD6586-T8E_1920x1080_8G_EMMC_Ecoline.part4 | Download | |
| MSD6586-T8E_1920x1080_8G_EMMC_Ecoline.part5 | Download | |
| 9 | MSD6586-T8E-1920x1080-8G-NAKAMICHI-EMMC.part1 | Download |
| MSD6586-T8E-1920x1080-8G-NAKAMICHI-EMMC.part2 | Download |
por que después de pasar firmware me queda doble pantalla ??
Why after passing firmware I have double screen?
software not supported with panel
tengo el mismo problema,como lo solucionaste por favor?
hola cargue el firmware y se puso negro la imagen , como puedo cargar otro software sin entrar al menu.
Hello I loaded the firmware and the image went black, how can I load other software without entering the menu.
firmware not compatible with our panel. change firmware
como cargar el firmware al enchufar , no tengo imagen .
que botones pulso .
like loading firmware when plugging in, i have no image.
what buttons I press.
power key or Vol+ key but in most cases USB boot automatically
hola cargue un firmware incompatible y se puso negro la imagen , ¿ que puedo hacer?
como hago para cargarle el firmware original ayudenme por favor.
hi i loaded incompatible firmware and the image went black, what can i do?
How do I load the original firmware, please help me.
first, search the correct firmware then try with usb boot otherwise it will recover with jtag
hola el firmware qué es compatible y ya lo probe es el de hiunday que ustedes lo tienen aqui arriba , pero no lo reconoce automáticamente , me podrian apoyar como hacer el jtag por favor .
Hello, what firmware is compatible and I already tried it is the one from hiunday that you have it up here, but it does not recognize it automatically, could you help me how to do the jtag please.
