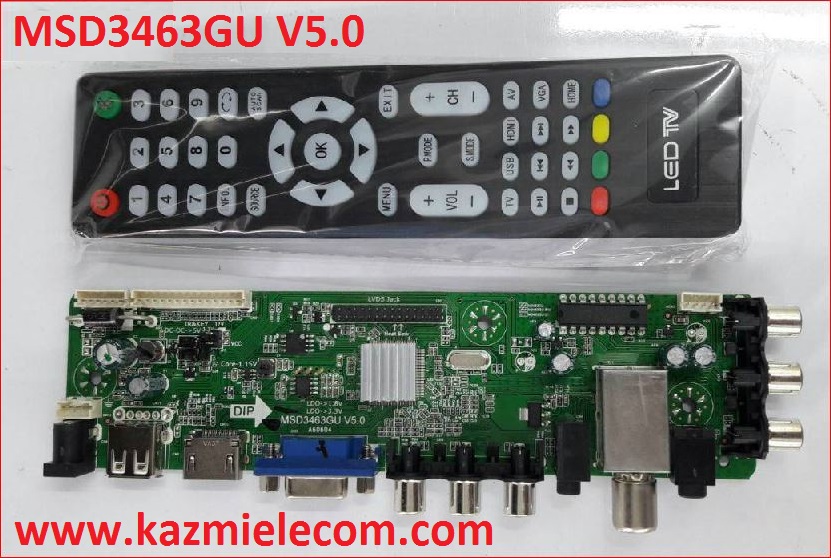

MSD3463GU V5.0 Universal Board
MSD3463GU V5.0 is a universal jumper board with multi-resolution panel screen supported software.
Basic Info:
Model No. MSD3463GU V5.0
Main Chipset:
Display Format: up to 1920×1080
Aspect Ratio: 4:3, 16:9 & 16:10
Tuner:
Sound:
Bin Name:
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single-channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 3 Watt (8 ohms)
Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.2W (for the motherboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
Copy the Required Firmware/software into FAT32 USB Disk
Plugin the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator led stops flashing
Done. Unplug the U-disk (It will take a max half min to upgrade firmware)
Factory Service Mode:
Menu+1147
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
MSD3463GU V5.0 Firmware All resolutions Free Download:
For video tutorials, visit “Kazmi Elecom” my youtube channel.
