MSD3463-T4C1 Firmware Free Download

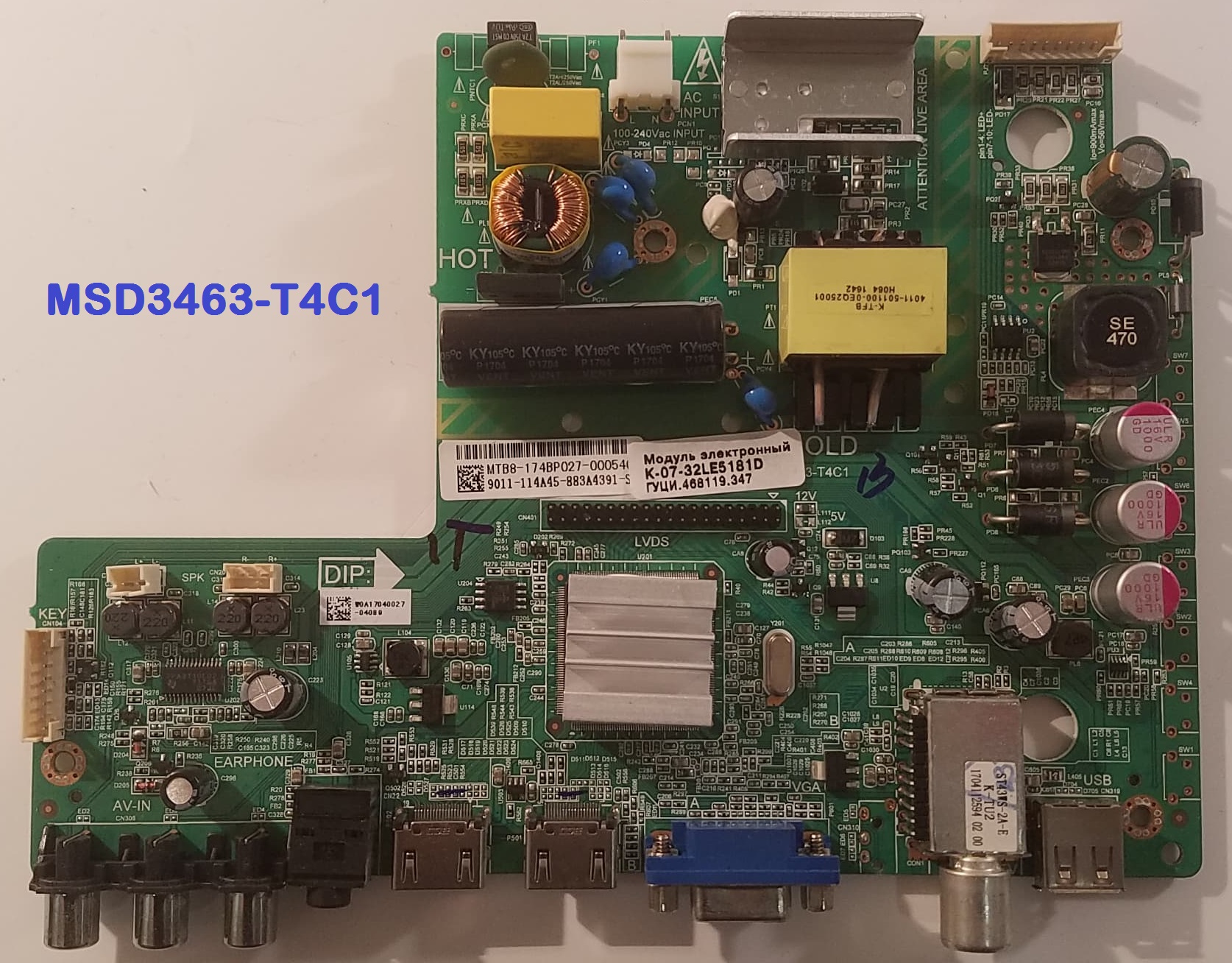

MSD3463-T4C1 LCD/LED TV Driver Board

MSD3463-T4C1 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 42-Inches LED panels which a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. MSD3463_T4C1 has multiple HDMI ports that support 1.4 and its HDCP support 1.1. MSD3463_T4C1 is compatible with Non-HD and FHD LCD/LED panel screens. MSD3463-T4C1 is widescreen-supported and also has a multi-language option. MSD3463-T4C1 has its special feature of  AV.MSD3463-T4C1 software collection is given below for free download.

General Specifications:

Board Make: China

Board Model: MSD3463-T4C1

Main Chipset: TSUMV56

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V DC (Default 12V)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 8MB

Factory Code: Input/Source 2580

Firmware Type: Backup Dump

Note: Following MSD3463.T4C1 firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download MSD3463-T4C1 Firmware File:

Download your required file of the following MSD3463.T4C1 firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

MSD3463-T4C1 Firmware Collection Free Download Here :

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	MSD3463-T4C1_DAEWOO L32S639VKE_Backup_Dump	Download
2	MSD3463-T4C1_Hugo 40L81FDVB_Backup_Dump	Download
3	MSD3463-T4C1_TESLA 32K307BH_Backup_Dump	Download
4	MSD3463-T4C1_Tesla 32K397BH_Backup_Dump	Download
5	MSD3463-T4C1_Toshiba 32S1750EV_Backup Dump	Download

For video tutorials, visit “Kazmi Elecom” my youtube channel.
