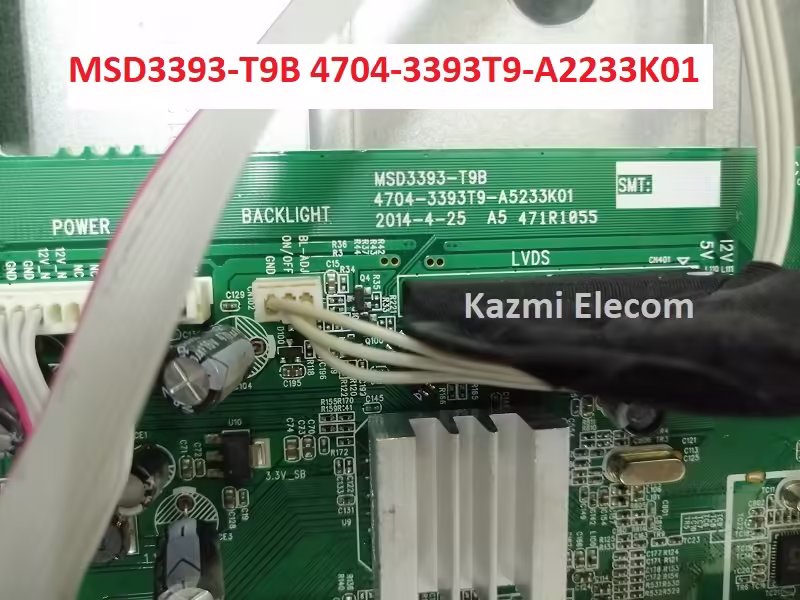

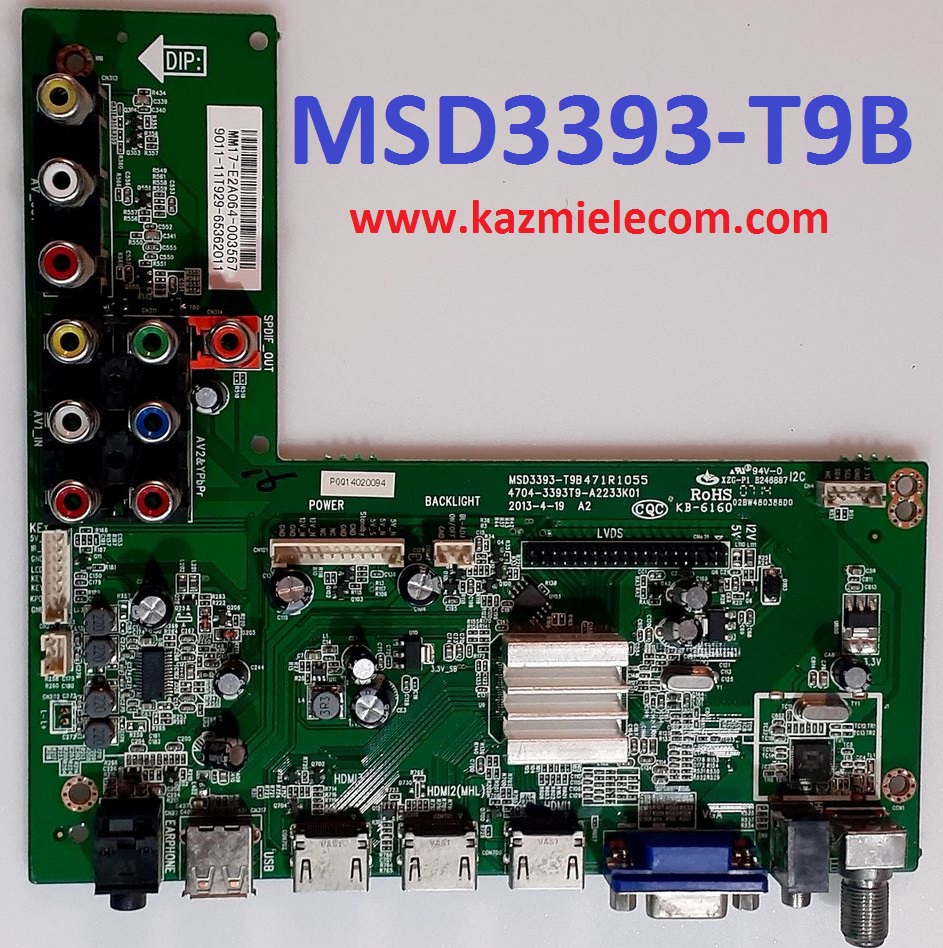

MSD3393-T9B LED TV Board
MSD3393-T9B is a simple ATV Driver Controller Motherboard designed for LCD/LED TV Panel Screens. MSD3393.T9B board is suitable for 32-inch to 50-inch LCD LED TV Screen Panels. MSD3393_T9B is a Non-Combo Board which means the main power module circuit and LED Backlight Inverter Driver Circuit module are required separately but ATV Card (Cable TV Tuner) is built into this motherboard. MSD3393 T9B board has all the latest features and input/output connectivity interfaces as per the current user requirements like HDMI input, USB interface, PC input, Component Input, TV, and headphones. MSD3393- T9B software backup dump files are shared below to help technicians for repairing LED TVs.
MSD3393-T9B has multiple input and output interface options such as Audio Video Input, Audio Video Output, SPDIF Output, and YPbPr input. MSD3393.T9B board also has the option to connect Computers and Laptops by using the VGA interface port to get a bigger screen display. MSD3393.T9B has triple HDMI input ports for connecting Full HD devices such as Gaming Consoles, Blu-ray Media Players, and FHD Set set-top boxes. The supported resolution of MSD3393.T9B is 1920×1080 Full HD. MSD3393.T9B board is capable of connecting external portable hard disk drives by using its USB input interface which can also be used for playing multimedia files and software upgrade purposes.
General Features and Technical Specifications:
Brand/Mark: Universal Board
Model: MSD3393- T9B 4704-3393T9-A2233K01
Main Chip: MSD3393LB
Product: LED TV
HDMI Inputs: 03
USB Input: 01
PC Input: Yes (VGA)
Headphones Out: Yes
A/V IN: Yes
A/V Out: Yes
YPbPr: Yes
SPDIF Output: Yes
LED Backlight: mA
Flash IC: 4 Mb
Sound Chip: NA
Tuner IC: Analog
Screen supported: 32-50 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Service Code:
Menu 1147 or Source/Input 2580 are common. For more Service Menu Codes, visit Here.
How to Install Software:
- Download the below-given dump file as per your requirement
- Extract it to get the folder
- Copy bin file to pen drive or required location
- Connect the Programmer’s VGA interface or use a clip adapter
- First of all, save the original Flash backup
- Now write the flash with the given dump file
- Wait until completion. Done
Note: The following firmware is a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are facing any issues during firmware installation then visit and read here first.
MSD3393-T9B firmware for free download:
