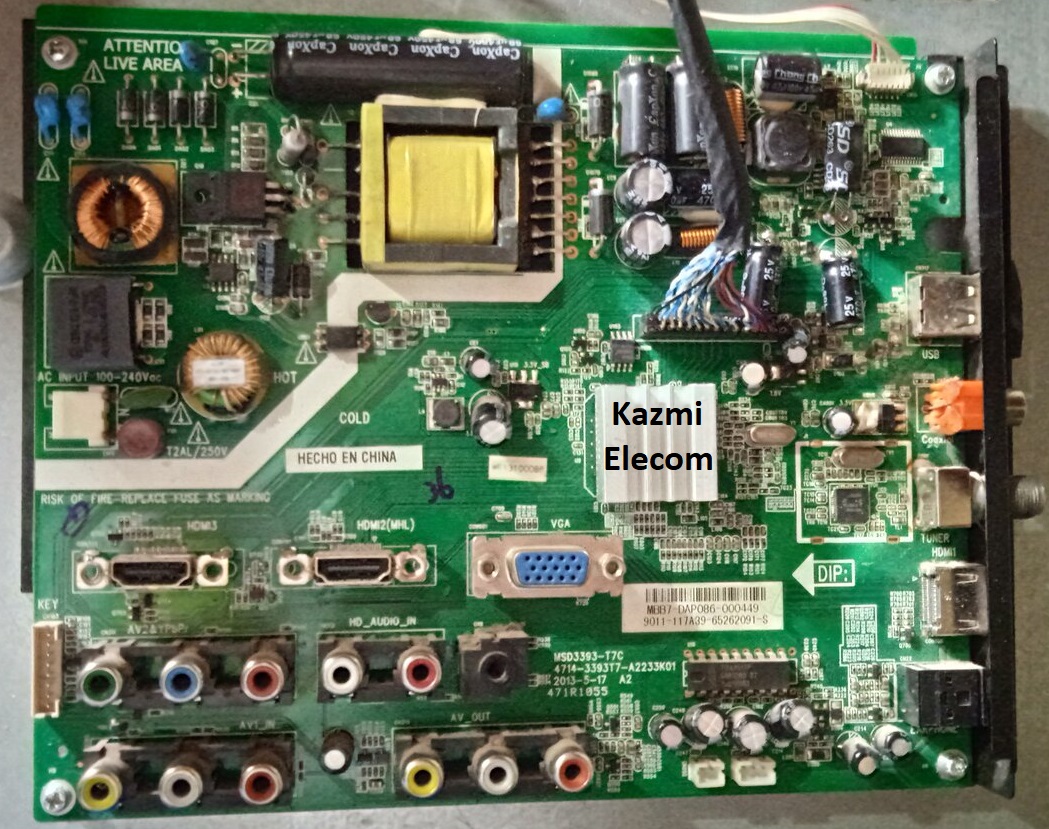

MSD3393-T7C LED TV Board
MSD3393-T7C is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. It is designed to support Full HD LCD/LED Panel Screens. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is built into this motherboard. This board has all the features and connectivity ports as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. MSD3393-T7C firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: MSD3393-T7C 4714-3393T7-A2233K01
Main Chip: MSD3393
Product: LCD/LED TV
LED Backlight: mA
Flash IC: 4Mb
Sound Chip: 1517P
Tuner IC:
Screen supported: 32-48 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 12V DC
Firmware Name: NA
Firmware Type: Backup Dump
Service Code:
Source/Input
Note: The following firmware is a backup file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
MSD3393-T7C firmware for free download:
