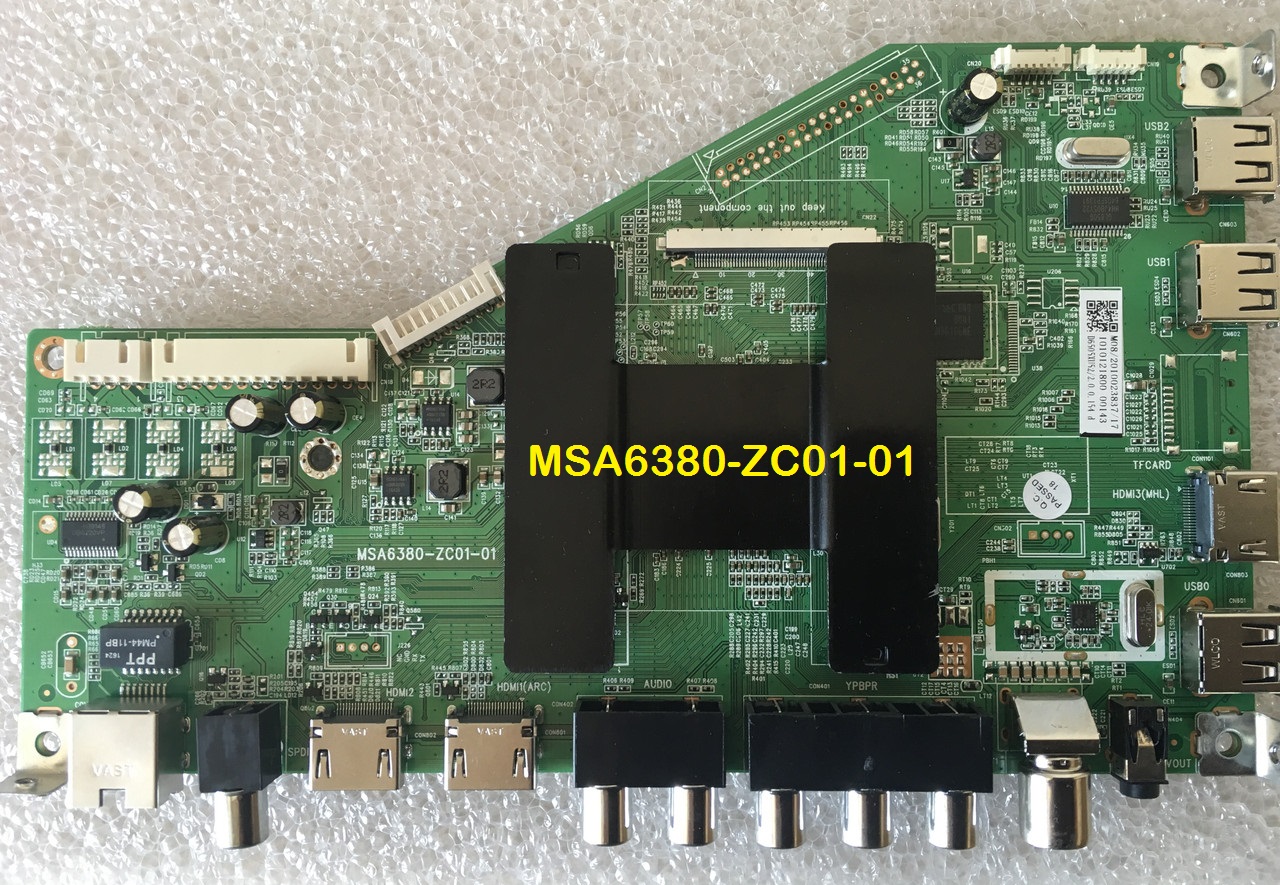

MSA6380-ZC01-01 UHD LED TV Board
MSA6380-ZC01-01 is a Dual-Core 4K smart Android LCD/LED Driver Board. MSA6380_ZC01_01 can support resolution up to 3840×2160 4K LCD panel@60hz. MSA6380.ZC01.01 is Multi-Purpose LED 4k TV Control Board with a TFT Analog TV function. MSA6380-ZC01-01 has multiple input/output interface ports like WIFI, RJ45, USB 2.0, HDM 2.0, VGA, AV, YPBPR, and Analog TV input, also support CVBS, Optical, and earphone output. MSA6380-ZC01-01 is based on the Operating System Android 4, with a system machine configuration is Cortex A53 dual Core CPU and Multi-core MaliT720PM2 GPU. 1Gb memory and has 8G storage space. MSA6380-ZC01-01 firmware can be updated by USB interface or SD memory.
General Specifications:
Board No: MSA6380-ZC01-01
CHIPSET: MSD638
Panel Type: TFT LCD with LED Backlight PANEL support up to HS V by one 8line @60hz
POWER To Panel: 12V
CPU: Cortex A53 Dual-Core
RAM: 1GB DDR3
ROM: 8GB EMMC Flash
Resolution Format: 2160P
OS: Android 4.4.4
Network: Support Ethernet, WIFI, 3G
System update: Support USB/SD update
AC Input Requirement: 100 ~ 240V
Low power consumable mode: standby≤0.5W
Firmware Type: USB Upgrade
Firmware Name: MstarUpgrade.bin
Product User: Kivi 65UX10S, Kivi 55UX10S, Kivi 50UX10S, Kivi 49UX10S, Kivi 43UX10S
Note: The following firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware:
Download all parts of the following given firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
Here is below MSA6380-ZC01-01 firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | MSA6380-ZC01-01_3840x2160_1G_8G_KIVI.part01 | Download |
| MSA6380-ZC01-01_3840x2160_1G_8G_KIVI.part02 | Download |
A.o.A Azhar Kazmi bhai
main ny apnay orient 4k Smart LED 55M8010 k liyay ye MSA6380-zc01-01 wali file download kr li hy but jut jub extract krta hun to checksum error aa jata hy file no. 17 main error aa rha hy k ye file corrupt hy. meri LED main b same he board hy is liyay ye software apply krna chahta hun but file no.17 pay extraction main error aa jata hy k file is corrupt…
kindly is error ko remove kr k file ko upload kr dain thanx
Regards
Abdul Aziz
Jhelum
w.salam dear ap software kion karna chahte hen remote change ho jye ga.. file ka size ok hy ap check karen kahin name to different nai ap k pas. agar 2 bar donload ho to end me 2 hota hy usko remove kar den same name hona chahye sab ka. nai to aik bar dobara yehi part download kar k 7zip se extract karen
Bhai software is liyay krna chahta hun k led android logo pay aa k restart ho.jati hy or bar bar esay e chlta hy…
Main.ny win rar say extract kiya hy us mn error aa raha hy but error wali file main b Mstar upgrade wali file mil jati hy jo attach krnay say upgrade error aa jata hy…
Kindly koi solution bta dain iska…
Albta mn 7zip say b try krunga..
Or 2 bar download krnay say b error same e hy…
Kya ye file.meri LED ko set kr degi ya nahi…
Or remot ka msla nahi hy bs aik dfa LED on ho jaye bs z help kr dain is mslay main…
agar board number same hy ram/rom bhe to ok ho jye gi
Yes ram or rome same hain or android version b same hy bs ye file ki corruption ki wja say wo upgrade error de raha hy ab 7zip say extract kr k try krunga hope so inshAllah it will be alright…
Thnx for your support..
May Allah bless u with more wealth and good health Aaameen
JazzAkAllah
As Salam U Alaikum
Sir Part 17
Checksum error in MSA6380-ZC01-01_3840x2160_1G_8G_KIVI\Kivi_65UX10S-LSC650FN04_2.0.0.468.rar. The file is corrupt
show kr rha 7zip se bhi same error hai is part ko alag alag browser se b download kia tb bhi same error.
Please ap is part ko again update krden..
Jazak Allah
w.salam. me dobara upload kar deta hon
Jazak Allah Sir Hogya Extract Bohat Shukria
azhar bhai AB EXTRACT HO GAIE HY PART 17 WALI FILE main ny MSTARTUPGRADE.BIN wali file USB main copy kr k LED k sath connect ki hy setup chlta hy blue screne pay or within 2 seconds LED phir standby main chli jati hy Upgrade error likha ata hy…
main apko e mail krnay lga hun us main apnay wali LED k board ki pic or specification bhaijta hun kindly guide kr dijiayga k just MStar wali file copy kr k connect krna hy ya baki files b copy krni hain….
Instruction:
1. Download the file to your computer.
2. Rename the file to ‘Mstarupgrade’
3. Copy the file to the root (not in the folder, but simply in the main directory) of the flash drive, with the file system FAT32.
4. Connect the drive to the USB port of the off TV (the LED below the TV should turn red). Pre-drag all other storage devices or wireless modules/devices.
5. Hold the joystick on the TV (not on the remote control) or the ON button for 5-10 seconds until the image of the update process on the TV screen appears.
6. Do not take out the flashcard till the main menu will be shown
7. Wait for the update process to end without disconnecting the TV from the network and not removing the drive.
Azhar bhai same esay e kiya tha just mstarupgrade wali file mn ny usb main dal k connect kiya pehlay red light blink huie then blue screne i or likha aya k uploading then sath he upgrade error likha ata hy or led phr standby mode main chli jati hy…
ap usb disk change kar k try karen otherwise ram/rom me farq ho sakta hy
Ok bhai
Thnx
Slaam.Azhar bhai
Apki instruction k mutabik main ny USB change kr k b dekhi hy phr Fat32 main or NTFS dono main bari bari formate kr k try kiya hy but stil wo e upgrade error aa raha hypr ye blue screne just 1 second ati hy or sath he stand by main chli.jati hy main nay specification vheck.ki hy same ram or rom hy.
Kya USB direct LED k pichay port main lgaun basically main ny USB cable connect ki huie hy led main to us pay USB lga k update kr rha tha kya is wja say to error nhi aa raha k cable k throuh update kr rha hun???
w.saalm dear mujhe cable ka experience software upgrade me kabhi nai hua per aik bar programmer k sath hua tha write sahi nai kar raha tha. ap direct laga k check karen NTFs se nai hoga FAT32 se he hoga. koi old usb disk use karen
Slaam.Azhar bhai
Kafi try kr.chuka hun but jb b USB connect krta hun light blink hoti hy red wali or sath he software upgrade error likha ata hy or LED restart ho jati hy Fat32 mn formate kr k file copy ki hai but software update nahi ho raha… plz koi or solution iska hy to bta dain
Thnx
No solution
Hi, I Cant download any file from the links, please help, thanks
fixed
MSA6380-ZC01-01 YE VALA MOTHER BORD KHRAB HO GAYA HAI AB IS KI JAGAH KONSA MOTHER BOARD SET HO SAKTA HAI OR YE MUJE CHAIYE TO KYA AAP PROVIDE KARVA SAKTE HO KYA PLZ REPLY ME….
dear apni local market visit karen. universal board mil jye ga
