MSA3487-ZC01-01 Firmware Free Download

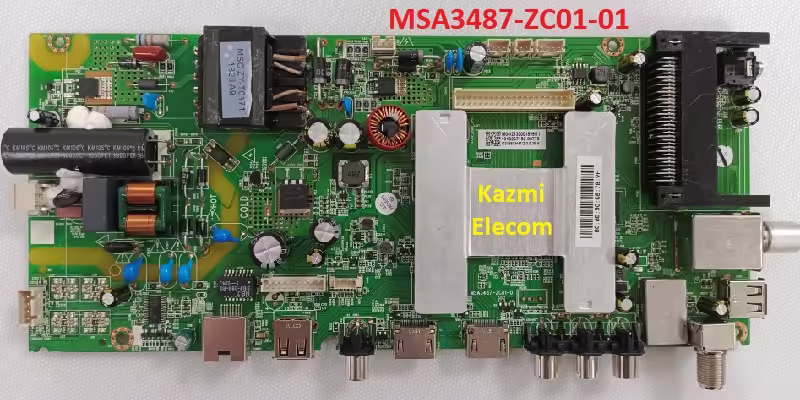

MSA3487-ZC01-01 Smart Android Board

MSA3487-ZC01-01 is a Full HD smart Android LCD LED TV controller motherboard. It has a supported resolution of 1920×1080 1080P Full High Definition. This is a three-in-one TV board which is also called a combo board. The LED backlight driver inverter module, Cable TV tuner, and the main input power supply unit are built into a single piece of motherboard printed circuit board (PCB). The user installs the motherboard with the panel there is no need to install or connect any other module. MSA3487.ZC01.01 is a universal driver board that can be installed with 24-32 inch LCD LED TV screen panels.

Download Here

MSA3487-ZC01-01 is manufactured with a Mstar processor (MSD6A348). Its processing speed is breakneck. Its RAM capacity is 1 GB and its total storage (ROM) capacity is 8 GB EMMC Flash. This board is built with an Android platform version 6.0. MSA3487.ZC01.01 board can receive analog TV system signals (PAL, SECAM, NTSC) and digital tv system signals (DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2) with a dual tuner option (ATV&DTV). This board has multiple connectivity input-output interfaces for user convenience such as dual USB, dual HDMI input, Ethernet Connection (RJ45), CL+ Interface, Composite (RCA) input, etc.

MSA3487-ZC01-01 General Information:

Board Model: MSA3487-ZC01-01

Main Chipset: MSD6A348AX0-8-W2

CPU: Quad-Core ARM Cortex-A53

GPU: Dual-Core G52MP2

Android Version: 6.0

Resolution: 1920×1080

Audio Power: 2x6W (12 watts)

Backlight Current: NA

Backlight Power: NA

USB Ports: 2

HDMI Ports: 2

CI: Yes

Component: Yes

RJ45: Yes

Analog Tuner: PAL, SECAM, NTSC

Digital Tuner: DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2

Wifi: Yes

Mira-Cast: Yes

Memory (RAM): 1GB DRAM

Storage (ROM): 8 GB EMMC Flash

EMMC: KLM8G1GEME-B041

Power Rating: 220V~240V 50Hz

Power Consumption: 65Watt

Firmware Name: MstarUpgrade.bin

Firmware Type: USB Bootable and EMMC Backup Dump

Product User: Strong, China Universal

MSA3487-ZC01-01 Technical Specifications:

Resolution 1920×1080 Full HD
HD support HD
LED backlight DLEDD
Response time 8 ms
Display scale 16:09
Stereo sound there is / there is
Matrix type LED
Refresh rate 60 Hz
Processor frame ARM Cortex-A53/1, 5GHz/Quad core
GPU G52MP2/Dual core
OS version Android 6.0
RAM (DRAM) 1GB
ROM (Flash) 8GB
WIFI 2T2R
HDMI 2.0 (HDCP 2.2) 3
HDMI CEC (T-link) Full
Caption (Subtitle) Yes
USB HID support Yes
USB channel list clone Yes
USB 2.0 2
Teletext there is
ATV PAL, SECAM, NTSC
DTV DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Sound power 6w+6w
Acoustic system Buffer speakers
DOLBY DIGITAL there is
Supported formats MP3, WMA, MPEG4, MKV, JPEG
Social Applications Yes
Web browser Yes
Processor Quad Core
WiFi sharing Yes

How to Write MSA3487-ZC01-01 EMMC Backup:

Download the given MSA3487-ZC01-01 EMMC backup shared in this post below
Note the EMMC Pinouts (D0, CMD, CLK) in the given picture above
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

How to Install USB Bootable Firmware:

Download the required MSA3487-ZC01-01 USB bootable firmware.
Extract the zip files to get the folder.
Transfer the firmware (MstarUpgrade.bin) file to the empty FAT32 formatted USB disk
Switch OFF the TV/Board from the main power
Insert the pen drive into the USB port 1 of the board
It will automatically boot the software
The installation progress bar will display on the screen. Now release the power button
Wait till completion. Done

Note: The following MSA3487-ZC01-01 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
