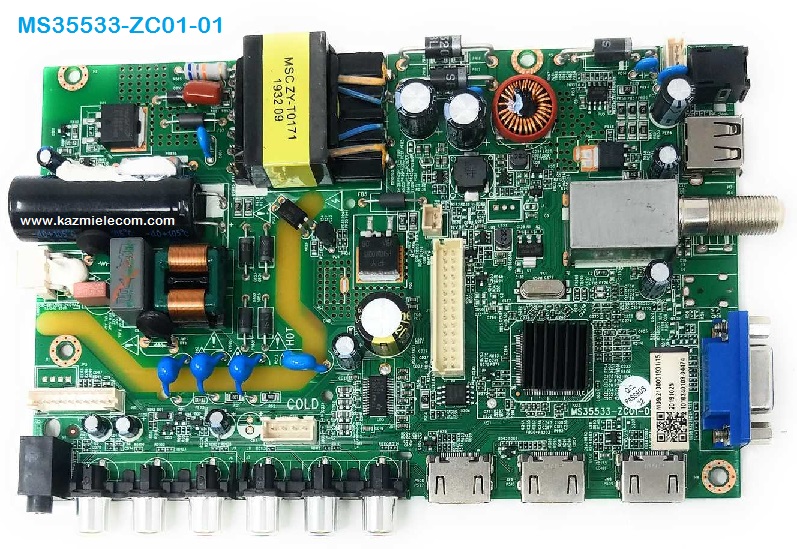

MS35533-ZC01-01 LED TV Board
MS35533-ZC01-01 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 39-Inches LED panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. TUSMV59.ZC01-01 has multiple HDMI ports that support 1.4 and its HDCP support 1.1.
MS35533_ZC01_01 is compatible with Non-HD and FHD LCD/LED panel screens. MS35533-ZC01-01 is widescreen-supported and also has a multi-language option. MS35533-ZC01-01 has its special feature of Dual AV. MS35533-ZC01-01 software collection is given below for free download.
General Specifications:
Board Make: China
Board Model: MS35533-ZC01-01
Main Chipset: TSUMV59
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual-channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language: Yes
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 8 Watt (8 ohms)
Panel Voltage: +5V/+12V DC (Default 12V)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
IR Control: Yes (Controllable by Remote Control)
Electrical Parameters:
Working Input Voltage: AC220 Volt
Maximum Current: 5000mA (Without Panel)
Standby Power: <0.5W
Maximum Current for USB: 500mA
Flash IC: 4MB
Firmware Type: Backup Dump
Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
MS35533-ZC01-01 Firmware Collection Free Download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | MS35533-ZC01-01_1366x768_Haier_Mirror | Download |
| 2 | MS35533-ZC01-01_1366x768_Haier_Normal | Download |
| 3 | MS35533-ZC01-01_1366x768_Orient_Mirror | Download |
| 4 | MS35533-ZC01-01_1366x768_Orient_Normal | Download |
Sir meri Haier LE32K6000 Led me ye board laga hai..iska original panel toot gya tha kuch din pehle mene panel install kiya exact old LVDS panel connection as per datasheet..after new panel install display ulta ho gya..factory settings se mirror On krne se theek to ho jata hai lekin dubara LCD on krne pr phir se display mirror ho jata…please give me suggestion…Thanks Sir
software change karen agar phir bhe issue hoto eeprom bhe change karen
thank u sir..InshaAllah me ye dono try krta hon…phir apko btaon ga
Kazmi sir ap ne Haier or Orient k liye 2 type k software upload kiye hain 1st Mirror and 2nd Normal…in dono me kia farq hai kindly bta den,,,thank u
up screen aur down screen
thank u sir…kindly ye bta den k mere wale case me kon sa software hoga? normal ya mirror? according to my 1st comment
not confirm. load kar k check karen
