MS0V590-ZC01-01 Software Free Download

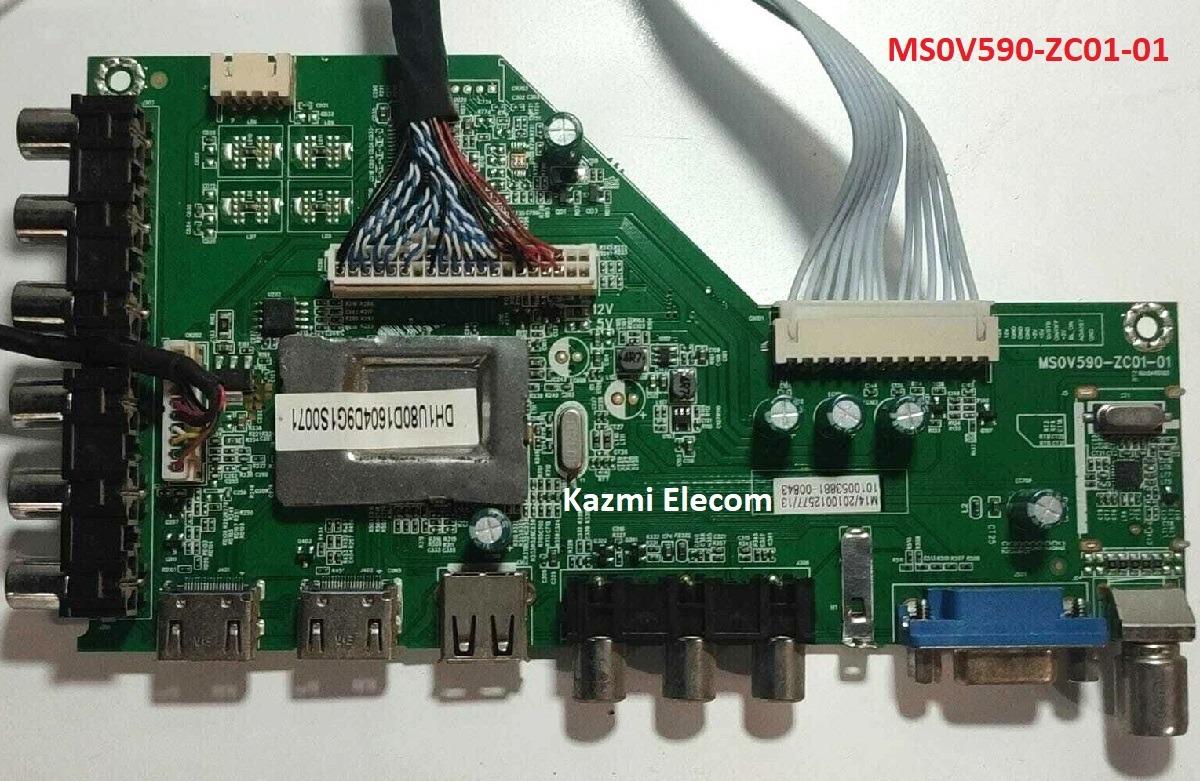

MS0V590-ZC01-01 LED TV Board

MS0V590-ZC01-01 is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 24-inch to 42-Inches LED panels with a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. MS0V590_ZC01_01 has multiple HDMI ports that support 1.4 and its HDCP support 1.1. MS0V590.ZC01.01 is compatible with Non-HD and FHD LCD/LED panel screens. MS0V590-ZC01-01 is widescreen-supported and also has a multi-language option. MS0V590-ZC01-01 has the special feature of dual AV. MS0V591-ZC01-01 software collection is given below for free download.

Download Here

General Specifications:

Board Make: China

Board Model: MS0V591-ZC01-01

Main Chipset: TSUMV59XUS-Z1

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V DC (Default 12V)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Tuner: R842/18675

Factory Code: Input/Source 2580

Firmware Type: Backup Dump

Note:

The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

MS0V590-ZC01-01 Firmware Collection Free Download Here :
