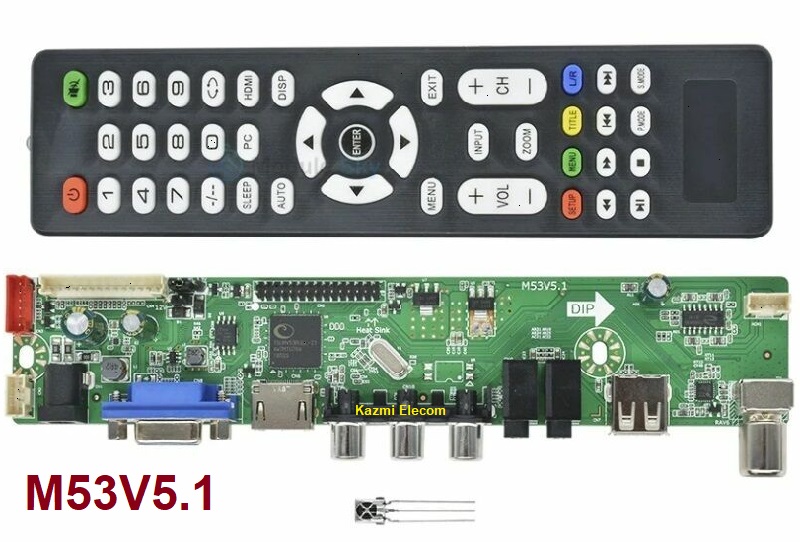

M53V5.1 Universal TV Board
M53V5.1 is an analog universal LCD/LED TV Controller Driver Board. It can support Multi-Language with Russian also. M53V5.1 can support Full HD 1920×1080 resolution panels with a screen size of 8 inches to 42 inches. Its USB interface can be used to upgrade programs as well as can be used to play Video /music/photos Basically all formats are supported.

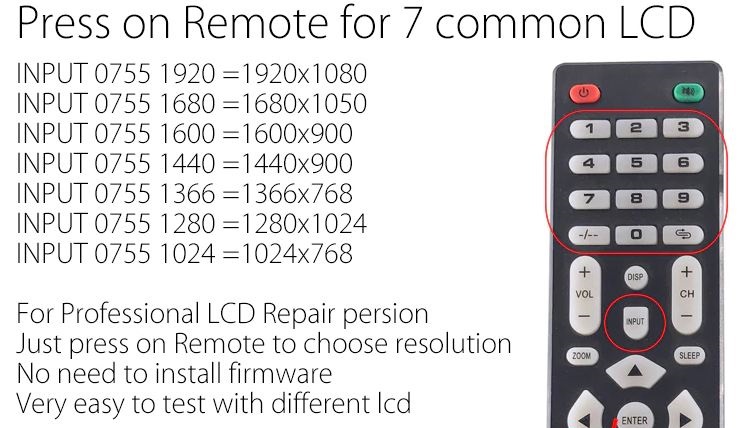

You can also set boot display images or LOGO and the Mirror option is also available on this board. Its inbuild software can support multiple screen resolutions with remote coding, So there, No need to load software in it.
Basic Info:
Model No. M53V5.1

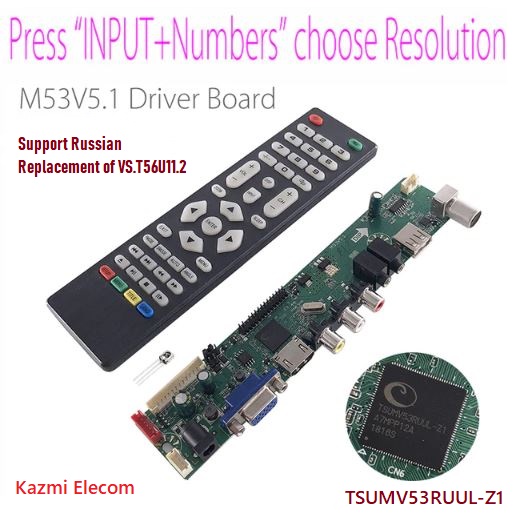

Main Chipset: TSUMV53RUUL-Z1
Tuner: RDA5160
Display Format: up to 1920×1080
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: LVDS Single 6/8, Double 6/8
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power
Multi-Language OSD: Russian, English, Simplified Chinese, French, German, Italian, Spanish. Deutsch, Arabic
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out
Audio O/P Power: 2 x 5 Watt (8 ohms)
Panel Voltage: 3.3V/5V/12V DC (jumping setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)
IR Control: Yes (Controllable by Remote Control)
Backlight Option: Yes
Mirror Option: Yes
Capture Logo: Yes
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 3.5 Amp
Standby Power: <0.2W
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Insert the firmware into a formatted USB flash disk (FAT32).
- Insert the USB disk and Connect the 7KEY-Button to the board
- After turning on the power, then the 7key button light will be red flash red faster.
- LED CONTINUES TO BLINK AND NEVER STOP. is normal, just wait about 1 minute, and that means the update has been completed. Then unplug and remove the u-disk.
- Note: that the writing program does not lack power, crashing will not able to use
Factory Service Mode:
Input 2580
Note: The following firmware collection is a USB boot file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. For more details about the download, process watch the video Click Here
M53V5.1 Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | M53V5.1_1024x768_General_USB | Download |
| 2 | M53V5.1_1280x1024_General_USB | Download |
| 3 | M53V5.1_1366x768_General_USB | Download |
| 4 | M53V5.1_1440x900_General_USB | Download |
| 5 | M53V5.1_1600x900_General_USB | Download |
| 6 | M53V5.1_1600x1200_General_USB | Download |
| 7 | M53V5.1_1680x1050_General_USB | Download |
| 8 | M53V5.1_1920x1080_General_USB | Download |
