M3663.03B Software Free Download

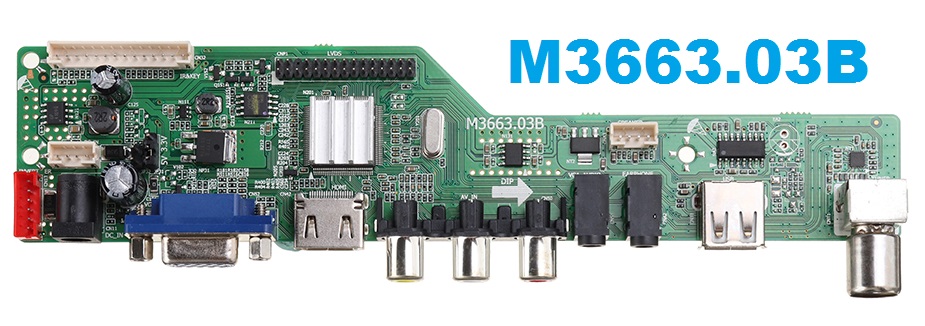

M3663.03B Digital Universal Board

Basic Info:

Model No. M3663.03B

Main Chipset: MSD3663LU

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Screen Supported: 8.9-28 inch

Digital Signal: DVB-T2/DVB-T/DVB-C

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: single/dual 8bit LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (4 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt, 4 Amp

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

Firmware Name: 3663LU_03B.bin

How to Upgrade Firmware:

Step 1: Empty the U disk

Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.

Step 3: Connect the U disk with the Mainboard

Step 4: Connect the Keypad and IR also

Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,

Note: Following M3663.03B firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware.

How to Download M3663.03B Firmware Files:

Download all parts of the following M3663.03B firmware and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

M3663.03B Firmware All resolutions Free Download Here :

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	M3663.03B_4K2K_USB	Download
2	M3663.03B_1024x768_USB	Download
3	M3663.03B_1280x1024_USB	Download
4	M3663.03B_1366x768_USB	Download
5	M3663.03B_1400x900_USB	Download
6	M3663.03B_1440x900_USB	Download
7	M3663.03B_1600x900_USB	Download
8	M3663.03B_1680x1050_USB	Download
9	M3663.03B_1920x1080_USB	Download
10	M3663.03B_1920x1200_USB	Download

For video tutorials, visit “Kazmi Elecom” my youtube channel.
