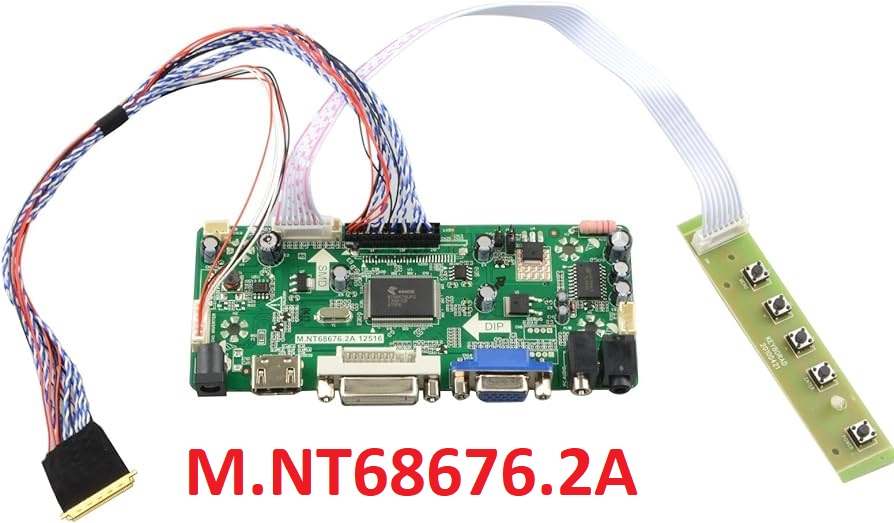

M.NT68676.2A Universal LCD Controller Board

M.NT68676.2A is a universal jumper board with multi-resolution panel screen-supported software. M.NT68676.2A is an HD Universal LCD Controller Board Driver Module HD VGA DVI With an Audio option.

Download Here

Basic Info:

Model No. M.NT68676.2A

Main Chipset: NT68676

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Tuner: Not Available

Sound:

Bin Name: .hex

General Specifications:

TV System: Not Available

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: Key definitions, menus, Volume +, Volume -, adjustment / Exit

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, DVI, and Earphone Out

Audio O/P Power: 2 x 1 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

Panel: LED / LCD Panel

Single / Dual LVDS Interface (8): 2048 × 1152 Max Resolution

Video input: PC RGB Format, 2048 × 1152 @ 60hz

HD 480 i, 480 p, 576 i, 576 p, 720 p, 1080 i, 1080 p

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.5W (for the motherboard only)

Note: The following firmware is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

M.NT68676.2A Firmware All resolutions Free Download:
