LED TV Panel Resolution Matching Remote Code

LED TV Panel Multi-Resolution Code

LED TV Panel Universal Boards Resolution Matching Remote Code change code is given below for in-built software:

If you are facing any issue during firmware installation then visit and read here first.

JNX 53U11.2 (INPUT 208) Resolution Matching Remote Code:

• 1920×1080 INPUT 03661
• 1366×768 INPUT 03662
• 1280×1024 INPUT 03663
• 1440×900 INPUT 03664
• 1600×900 INPUT 03665
• 1680×1050 INPUT 03666
• 1024×768 INPUT 03667

VS.T56U11.2 Resolution Matching Remote Code:

• 1366×768 INPUT 31181
• 1024×768 INPUT 31182
• 1280×1024 INPUT 31183
• 1440×900 INPUT 31184
• 1600×900 INPUT 31185
• 1680×1050 INPUT 31186
• 1920×1080 INPUT 31187

• • 1024×768 INPUT 20082
  • 1280×1024 INPUT 20083
  • 1366×768 INPUT 20081
  • 1440×900 INPUT 20084
  • 1600×900 INPUT 20085
  • 1680×1050 INPUT 20086
  • 1920×1080 INPUT 20080

• • • 1024×768 Source 5 20082
    • 1280×1024 Source 5 20083
    • 1366×768 Source 5 20081
    • 1440×900 Source 5 20084
    • 1600×900 Source 5 20085
    • 1680×1050 Source 5 20086
    • 1920×1080 Source 5 20080

VS.T56U11.3 Resolution Matching Remote Code:

• 1366*768 – INPUT31181
• 1024*768 – INPUT31182
• 1280*1024 – INPUT31183
• 1440*900 – INPUT31184
• 1600*900 – INPUT31185
• 1680*1050 – INPUT31186
• 1920*1080 – INPUT31187

• • • 1024×768 INPUT 20082
    • 1280×1024 INPUT 20083
    • 1366×768 INPUT 20081
    • 1440×900 INPUT 20084
    • 1600×900 INPUT 20085
    • 1680×1050 INPUT 20086
    • 1920×1080 INPUT 20080
      • Input 04031 HD
      • Input 04032 FHD
      • Input 04033 to 04037 Other Resolutions

53L13.54/53L73.2 (INPUT 208) Resolution Matching Remote Code:

• 1024×768 INPUT 20082
• 1280×1024 INPUT 20083
• 1366×768 INPUT 20081
• 1440×900 INPUT 20084
• 1600×900 INPUT 20085
• 1680×1050 INPUT 20086
• 1920×1080 INPUT 20080

• • 1024×768 Source 5 20082
  • 1280×1024 Source 5 20083
  • 1366×768 Source 5 20081
  • 1440×900 Source 5 20084
  • 1600×900 Source 5 20085
  • 1680×1050 Source 5 20086
  • 1920×1080 Source 5 20080

S368A1.5 (INPUT 208) Video Tutorial

• 1920×1080 INPUT 20221
• 1366×768 INPUT 20222
• 1680×1050 INPUT 20223
• 1600×900 INPUT 20224
• 1440×900 INPUT 20225
• 1280×1024 INPUT 20226
• 1920×1200 INPUT 20227

• • 1024×768 INPUT 20082
  • 1280×1024 INPUT 20083
  • 1366×768 INPUT 20081
  • 1440×900 INPUT 20084
  • 1600×900 INPUT 20085
  • 1680×1050 INPUT 20086
  • 1920×1080 INPUT 20080

S368LA1.5 (INPUT 815) LED TV Panel Resolution Code:

• 1920X1080 INPUT 03771
• 1366X768 INPUT 03772

VS.TP53U51.2 (INPUT 815) LED TV Panel Resolution Code:

• 1920X1080 INPUT 03771
• 1366×768 INPUT 03772

53L52.2 (INPUT 344) LED TV Panel Resolution Code:

• 1366×768 INPUT 03441
• 1920×1080 INPUT 03442

VS.T53U21.2 (INPUT 815) LED TV Panel Resolution Code:

• 1920×1080 INPUT 03771
• 1366×768 INPUT 03772
• 1280×1024 INPUT 03773
• 1440×900 INPUT 03774
• 1600×900 INPUT 03775
• 1680×1050 INPUT 03776
• 1024×768 INPUT 03777

SP358T51.22/SP358T22.21 (INPUT 815)

• 1920×1080 INPUT 03771
• 1366×768 INPUT 03772

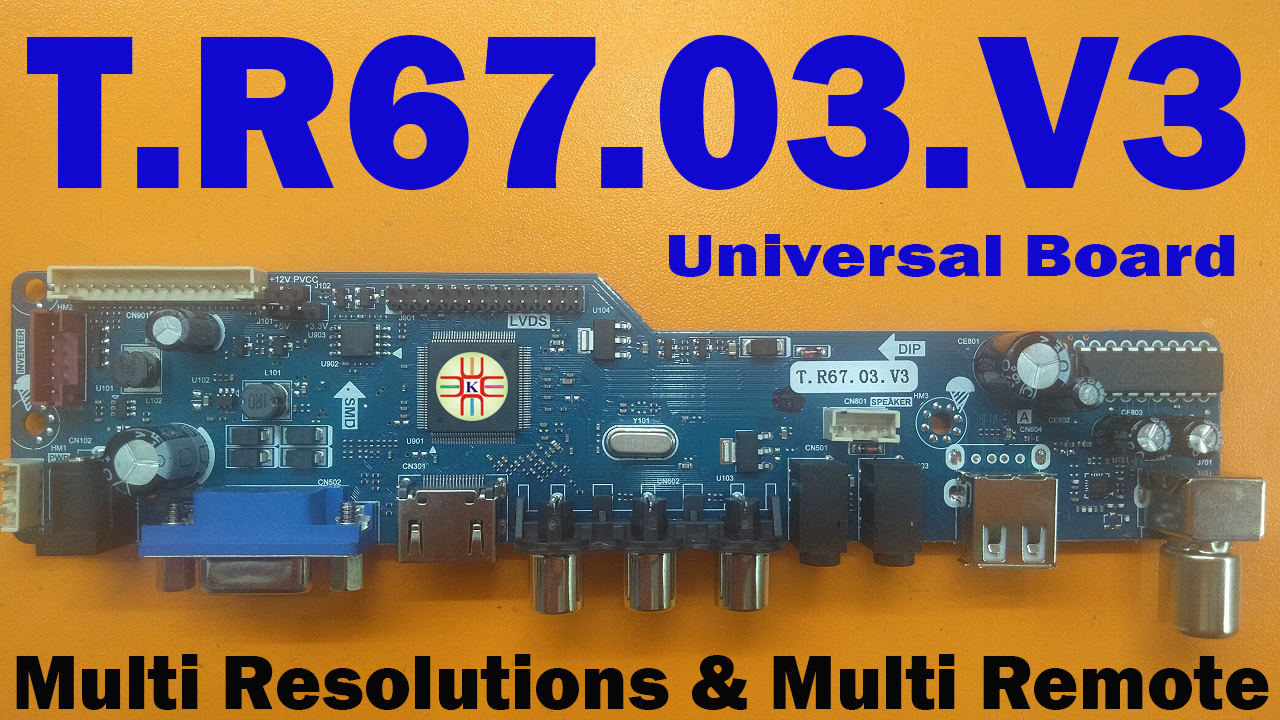

T.R67.03 V3, V10 (INPUT 208) LED TV Panel Resolution Code:

• 1920×1080 INPUT 03661
• 1366×768 INPUT 03662
• 1280×1024 INPUT 03663
• 1440×900 INPUT 03664
• 1600×900 INPUT 03665
• 1680×1050 INPUT 03666
• 1024×768 INPUT 03667

T.R83.816 (INPUT 336)

• 1366×768 INPUT 03661
• 1920×1080 INPUT 03662

T.R67.671 (INPUT 336)

• 1366×768 INPUT 03661
• 1920×1080 INPUT 03662

RU10.816 (INPUT 1150)

• 1920X1080 INPUT/SOURCE 05432
• 1366X768 INPUT/SOURCE 05431

KK.RU10.671 (INPUT 185)

• 1920X1080 INPUT/SOURCE 4032
• 1366X768 INPUT/SOURCE 4031

RU10.816 (MENU 1148, INPUT 1150)

• 1920X1080 INPUT/SOURCE 0432
• 1366X768 INPUT/SOURCE 0431
• 1920X1080 INPUT/SOURCE 05432
• 1366X768 INPUT/SOURCE 05431

T.R67.675 (INPUT 208)

• 1366×768 INPUT 03661
• 1920×1080 INPUT 03662
• 1280×1024 INPUT 03663
• 1440×900 INPUT 03664
• 1600×900 INPUT 03665
• 1680×1050 INPUT 03666
• 1024×768 INPUT 03667

VS.TP53U61.2 (INPUT 815)

• 1920×1080 INPUT 03771
• 1366×768 INPUT 03772
• 1280×1024 INPUT 03773
• 1440×900 INPUT 03774
• 1600×900 INPUT 03775
• 1680×1050 INPUT 03776
• 1024×768 INPUT 03777

M53V5.1 (Menu 1147) LED TV Panel Resolution Code:

• 1920×1080 INPUT 0755 1920
• 1366×768 INPUT 0755 1366
• 1280×1024 INPUT 0755 1280
• 1440×900 INPUT 0755 1440
• 1600×900 INPUT 0755 1600
• 1680×1050 INPUT 0755 1680
• 1024×768 INPUT 0755 1024

TP.U67.PA671 (INPUT 208)

• 1366×768 INPUT 03661
• 1920×1080 INPUT 03662
• 1280×1024 INPUT 03663
• 1440×900 INPUT 03664
• 1600×900 INPUT 03665
• 1680×1050 INPUT 03666
• 1024×768 INPUT 03667

KK.RU10.03A (INPUT 208)

• Input 05561 HD 1366×768
• Input 05562 FHD 1920×1080
• Input 05563 to 05567 Other Resolutions

T.HD.3663.031E Resolution Code:

• 1920×1080 INPUT 9006
• 1366×768 INPUT 9003
• 1280×768 INPUT 9012
• 1280×1024 INPUT 9001
• 1440×900 INPUT 9004
• 1440×1050 INPUT 9013
• 1600×900 INPUT 9008
• 1600×1200 INPUT 9007
• 1680×1050 INPUT 9005
• 1024×600 INPUT 9014
• 1024×768 INPUT 9002
• 1024×800 INPUT 9011
• 1920×1200 INPUT 9009

VIDEOCON Samsung Panel Resolution Code:

• INPUT 8532-1001
• INPUT 8532-1002
• INPUT 8532-1003
• INPUT 8532-1004
• INPUT 8532-1005
• INPUT 8532-1006
• INPUT 8532-1007
• INPUT 8532-1008
• INPUT 8532-1009
• INPUT 8532-1010
