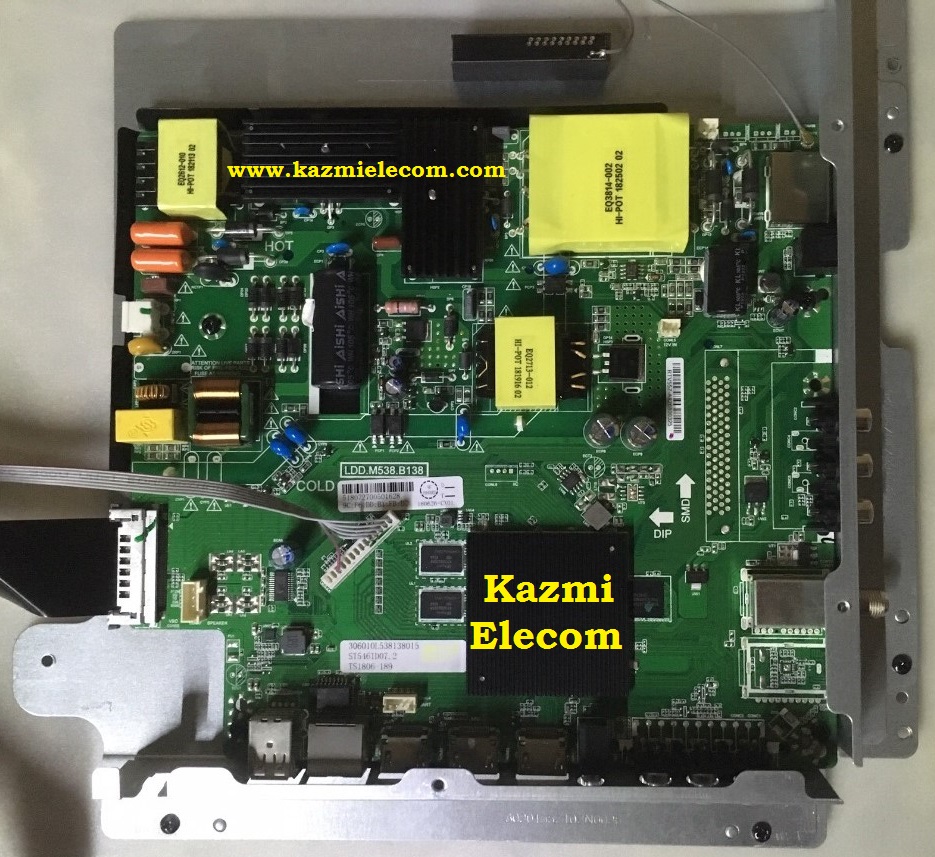

LDD.M538.B138 4K UHD Smart LED TV Board
LDD.M538.B138 is an Intelligent smart 4K network driver LED TV board with a support resolution of 3840×2160. LDD_M538_B138 is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. LDD-M538-B138 has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity. Its USB interface can be used for Firmware upgrades as well as for multimedia playback.
LDD M538 B138 is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-C DVB-S2 DVB-T2) signals. LDD.M538.B138 Firmware file is given below for Technician’s support. LDD.M538.B138 Main Board is used for MANTA LED TVs, Spectrum LED TVs, and Starlight UHD Smart LED TVs. LDD.M538.B138 is also used for other Brands’ 4K Ultra HD LED TVs.
General Features & Specifications:
Brand/Make: LCD/LED 4K Smart Driver Board
Model: LDD.M538.A138
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 6.0
CPU:
GPU:
RAM: 1.5GB/ 1GB DDR3
ROM: 4Gb/8Gb
OSD Language: ENGLISH/POLISH
Sound Output: 8Wx2
RF TUNER: DVB-C / S2 / T2 MPEG-1 layer 1/2, MPEG-2 layer 2
Video System: PAL/SECAM/NTSC
Power Input: 100-240 ~ 50/60Hz
Power Consumption: 135W
Standby Power: 0.5W
Factory Code: Source 2580
Firmware: LDM538.bin
Firmware Type: USB Updateable Firmware, LDD.M538.B138 program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
This LED TV Motherboard is used for the following popular models:
- ELECTRIQ EIQ-55UHDT2
- Sansui Smx5019usm
- Awox U5600STR 55′ Android TV
- Rca Rtv55z1usm
- Rca Rtv5019usm
- MANTA 43LUA29L
- Zephir zvs43uhd
- Akai AKTV5036S
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
LDD.M538.B138 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5536S.part01 | Download |
| LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5536S.part02 | Download | |
| LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5536S.part03 | Download | |
| LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5536S.part04 | Download | |
| 2 | LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5537S.part01 | Download |
| LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5537S.part02 | Download | |
| LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5537S.part03 | Download | |
| LDD.M538.B138_3840x2160_1.5GB_4GB_AKAI AKTV5537S.part04 | Download | |
| 3 | LDD.M538.B138_3840x2160_1.5GB_4GB_NORDMENDE ND50KS4100.part01 | Download |
| LDD.M538.B138_3840x2160_1.5GB_4GB_NORDMENDE ND50KS4100.part02 | Download | |
| LDD.M538.B138_3840x2160_1.5GB_4GB_NORDMENDE ND50KS4100.part03 | Download | |
| 4 | LDD.M538.B138_3840x2160_1GB_8GB_AKAI AKTV6021.part01 | Download |
| LDD.M538.B138_3840x2160_1GB_8GB_AKAI AKTV6021.part02 | Download | |
| LDD.M538.B138_3840x2160_1GB_8GB_AKAI AKTV6021.part03 | Download | |
| 5 | LDD.M538.B138 3840x2160-SANSUI-RCA-50USM.part1 | Download |
| LDD.M538.B138 3840x2160-SANSUI-RCA-50USM.part2 | Download | |
| LDD.M538.B138 3840x2160-SANSUI-RCA-50USM.part3 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
Universal Smart Android Board Installation Guide With Original 40 Inches SONY LED TV
I have a problem with the TV Zephir ZVS43UHD would it be possible to have the correct firmware? Thak you very much.
Not available
Hola buen dia, cual es el firmware correcto para una rtv55z1usm (mexico)? no funciona el youtube q viene con android 6.
Saludos
not sure. use aptoid app
hola firmware paea rca rtv55z1usm porfavor
not available for specific brand
i´ve used the last one anf failed to update in my rca rtv5019usm
saludos, quiero descargar el archivo pero me dice en el enlace que el archivo no se encuentra
fixed
HOLA BUENAS TARDES
VEO QUE TIENES 3 DIFERENTES FIRMWARE.
CUAL SERIA EL CORRECTO A ELEGIR PARA MI TV SMTARTV RCA MODEL: RTV55Z1USM
PLACA LDD:M538.B138
Not available for RCA. you can load other but remote and logo will change
Buena noche descargue el último y si agarro en mi smartv . Pero no me reconoce el control original … Será que con otro universal agarre ?
Tuve que cargar el firmware ya que en una actualización de mi tv se congelo al cargar ..y no buscaba el software original RCA.
use universal remote control
A mi me paso lo mismo, fui y me compre un mando a distancia universal asi como tu lo recomiendas y no me funciono. Gracias
firmware rca RTV55Z1USM
I am uploading firmware for Sansui 5019usm tv. It also works for rca. It is to install via direct USB
Oye bro te funciono en RTV55Z1USM ?? si si me puedes pasar el archivo ya que intente con los links pero al momento de descomprimir no me deja me sale error en 2,4,6,8 y asi en todos los pares
Download all parts then extract anyone of them.
por ahi dice que sirve para varios modelos entre ellos el tuyo que especificas o sea rcca de 50 55 pulgadfa y tambien para la samsui y otros
No puedo cargar el firmware a una pantalla sansui smx5019usm me podrían orientar en procedimiento paso a paso y cual seria firmware correcto se los agradecería mucho
https://www.kazmielecom.tech/category/document/how-to-load-firmware
buenas tardes estoy descargando los archivos y del 11 al 20 no me deja me dice No se pudo generar el enlace directo
Akai 5536S direct link
https://s2salvadorigroup.it/ftp/AGGIORNAMENTI%20TV%20AKAI/AKTV5536S/D10231118%20%E6%84%8F%E5%A4%A7%E5%88%A9/LSC550FN19%E3%80%81LSC550FN29%20%20%20LSC550FN28%20%20LSC550FN23/QY_097_D102311_18_LDD_M538_B138_1536M_4G_LSC550FN19_UHD_RC_007F_Italy_20181213210353_USBCUS_WPF.zip
HI LINKS DEAD , PLEASE HELP ME
mention serial and part number
ldd-m538-b138 parte 14y 15 not found 1gb 8gb aktv 6021
please links not found
links updated
tanks links full
cual es el archivo que debo descargar para el modelo sansui, son 3 archvos divididos en parte pero no esta claro cual le hace a mi modelo.
Not available for sansui brand
Hola amigo una pregunta tengo la tv RCA RTV55Z1USM y necesito su firmware no sabrás cual de todas le pueda servir, en caso de que no lo tengas cual me recomiendas colocarle de las que tienes ? ya que he estado intentando buscarla y nada
Muchas gracias por la ayuda amigo te agraderia mucho tu ayuda
Dear, you do not tell me why you want to load firmware. if TV is stuck on the logo then first you should know the hardware specifications then search firmware according to your brand name or remote control. all given firmware is universal or for some brands. if you load any of them according to your hardware specifications then remote control and logo may change.
Hola amigo, regrese a valores de fabrica en una RCA model RTV55Z1USM con tarjeta LDD.m538.b138, solo se queda en las letras de inicio ya no carga el android, me podiras indicar cual de los 3 firmware me puede servir, saludos y gracias..
First, try to hard reset:
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Amigo no encuentro el firmware RTV5019USM lo tendras?
not available for this brand. you should try to reset first if stuck on the logo:
https://www.kazmielecom.tech/how-to-reset-smart-tv/
But at the beginning the list showed up rtv5019usm as the popular ones that are compatible with this main board but in the download links it never appeared. Can you help us which one would be the best for?
es el mismo del la samsui. son los 3 ultimos pero no deja descargarlo.
hii, if I hava RCA TV, Can I use any of these firmware???
or could be a problem to my TV?
The model is RTV5019USM, but it’s the same code
con el firmware de 8g funciona en rca pero no puedo sintonizar canales alguna solucion?
change software
Do you have firmware for Sansui Smx4319usm?
LDD M538 B138
No
LDD.M538.B138_3840x2160_1.5GB_4GB_NORDMENDE ND50KS… parte 12 caida. la puedes arreglar?
try now
no viene completo el firmware de RCA RTV55Z1USM LDD.M538.B138 o como lo descargo nomas me aparece hasta el 4
Not available for RCA
SI ME FUNCIONO EL ULTIMO EN MEXICO
Cual te funciono=… yo tengo la RTV55Z1USM
para cual Ivan Estrada… acaso para RTV55Z1USM
smx5019usm gracias
last one is for Sansui 5019usm
Awox k5500rst/4k/s ( tcon:hv550qub-hb0) software please.
Mainboard:LDD.M538.B138
Tcon:HV550QUB-HB0
TV MODEL: AWOX K5500RST/4K/S
SOFTWARE PLEASE
Not available
Hi. Nice day. I hace a RCB 50″ RTV5019USM Board LDD.m538.B138 y format the media usb vía setting and the tv power of but now only on blackscreen and power off in 1 minutes and repear on and off. Can i recocer they USB ? I download the sansui rca firmware on a USB but i don’t know how flash. Or maybe rename the ldm538.bin file ? Or here to put the archive to flash it ?
https://www.kazmielecom.tech/how-to-load-firmware/
