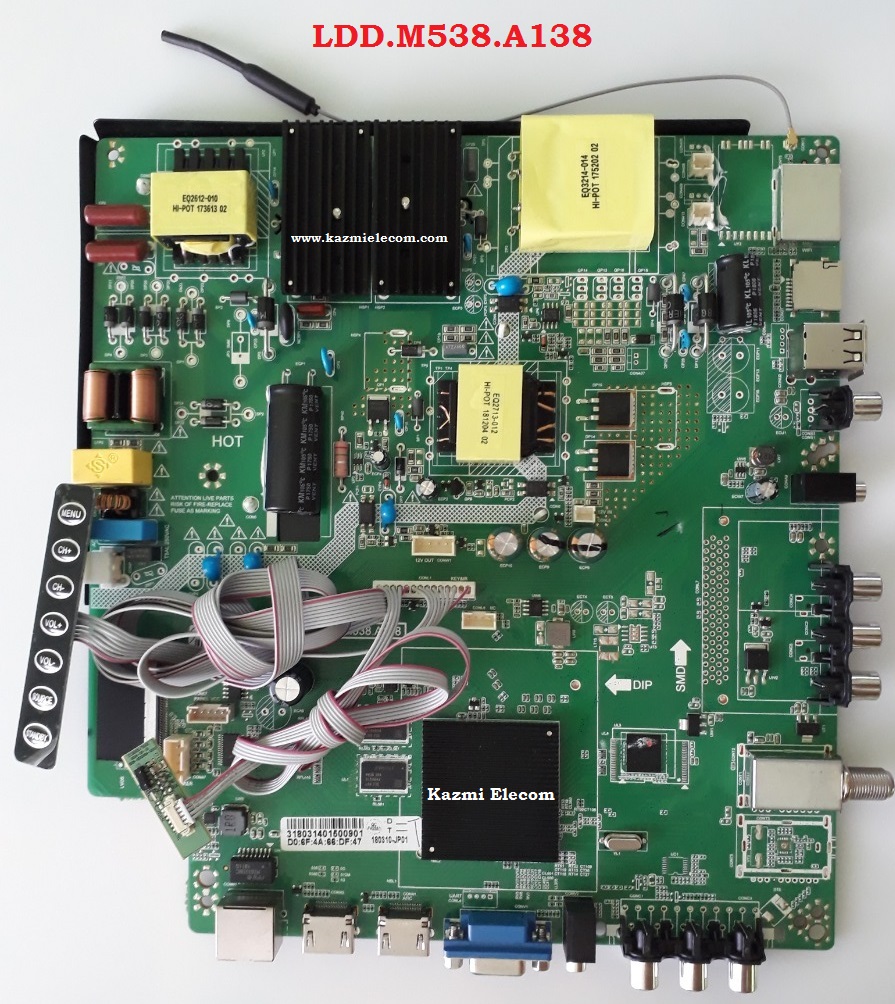

LDD.M538.A138 4K Smart Board
LDD.M538.A138 is an Intelligent smart 4K network driver LED TV board with a support resolution of 3840×2160. LDD_M538_A138 is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. LDD-M538-A138 has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphones, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity. Its USB interface can be used for Firmware upgrades as well as for multimedia playback.
LDD M538 A138 is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-C DVB-S2 DVB-T2) signals. LDD.M538.A138 Firmware file is given below for Technician’s support. LDD.M538.A138 Main Board is used for MANTA LED TVs, Spectrum LED TVs, and Starlight UHD Smart LED TVs. LDD.M538.A138 is also used for other Brands’ 4K Ultra HD LED TVs.
General Features & Specifications:
Brand/Make: LCD/LED 4K Smart Driver Board
Model: LDD.M538.A138
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 6.0
CPU:
GPU:
RAM: 1.5GB DDR3
ROM: 4Gb/8Gb
OSD Language: ENGLISH/POLISH
Sound Output: 8Wx2
RF TUNER: DVB-C / S2 / T2 MPEG-1 layer 1/2, MPEG-2 layer 2
Video System: PAL/SECAM/NTSC
Power Input: 100-240 ~ 50/60Hz
Power Consumption: 135W
Standby Power: 0.5W
Firmware: LDM538.bin
Firmware Type: USB Updateable Firmware, LDD.M538.A138 program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
LDD.M538.A138 firmware file for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | LDD.M538.A138-3840x2160-4G-Spectrum.part1 | Download |
| LDD.M538.A138-3840x2160-4G-Spectrum.part2 | Download | |
| 2 | LDD.M538.A138-3840x2160-4G-Nordmende.part1 | Download |
| LDD.M538.A138-3840x2160-4G-Nordmende.part2 | Download | |
| 3 | LDD.M538.A138-3840x2160-4G-AKAI.part1 | Download |
| LDD.M538.A138-3840x2160-4G-AKAI.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
how to update ldd.m538.a138 whide usb
copy the file LDM538 to the root directory of your usb drive (FAT), insert it onyour motherboard plug in power while holding the power button/key wait until the upgrade process is completed .
