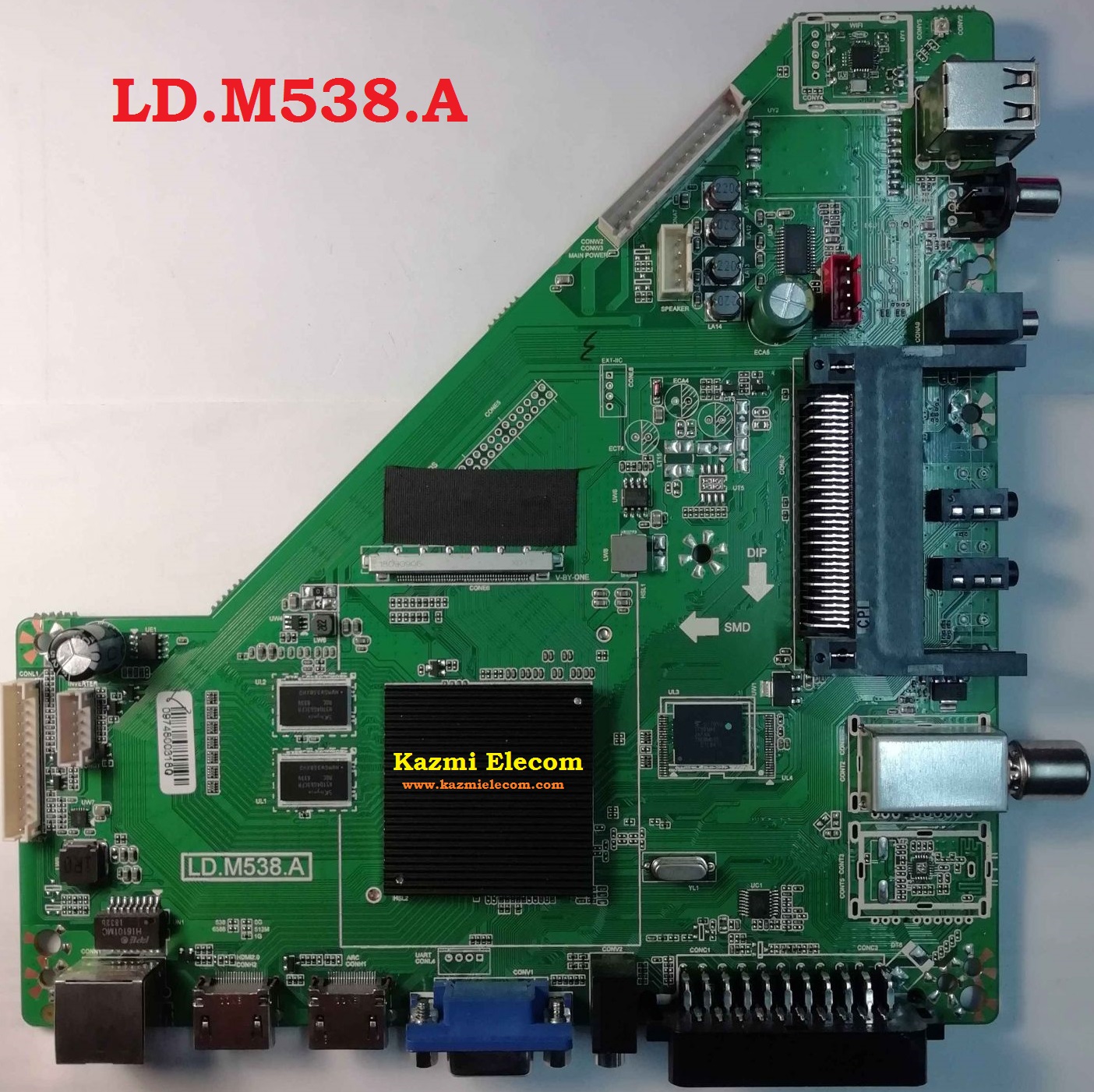

LD.M538.A 4K Smart Board
LD.M538.A is an Intelligent smart 4K network driver LED TV board with a support resolution of 3840×2160. LD_M538_A is dedicated to 60 Hz screens. It is not a combo board. Smart UHD TV With Android Platform and great features to entertain ultra HD Wide Screen with better to work SMART. LD-M538-A has the full features of input interface connectivity. It has multiple ports like HDMI, AV, Headphone, SCART, VGA interface, USB ports, and RJ45 Ethernet port for wired internet connectivity. Its USB interface can be used for Firmware upgrades as well as for multimedia playback.
LD M538 A is a digital and analog TV board, it can receive analogtelevision (PAL/SECAM/NTSC) and digital television (DVB-C DVB-S2 DVB-T2) signals. LD.M538.A Firmware file is given below for the Technician’s support. LD.M538.A Main Board is used for AKAI UHD SMART LED TVs, Polarline LED TVs, and many more UHD Smart LED TVs. LD.M538.A is also used for other Brands’ 4K Ultra HD LED TVs.
General Features & Specifications:
Brand/Make: LCD/LED 4K Smart Driver Board
Model: LD.M538.A
Supported Resolution: 3840×2160 UHD 4K
Screen Format: 16:9
Operating System: Android 6.0
CPU: A9
RAM: 1.5GB DDR3
ROM: 4Gb
OSD Language: Spanish/English/French
Sound Output: 7Wx2
RF TUNER: DVB-C / S2 / T2 MPEG-1 layer 1/2, MPEG-2 layer 2
Video System: PAL/SECAM/NTSC
Power Input: 100-240 ~ 50/60Hz
Power Consumption: 138W
Standby Power: 0.5W
Firmware: LDM538.bin
Firmware Type: USB Updateable Firmware, LD.M538.A program data USB
Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
LD.M538.A LED TV Motherboard is used for the following brands:
- AKAI AKTV505 UHD SMART
- POLARLINE 43PL12STC-SM
- POLARLINE 50PL52TC-SM
- POLARLINE 55PL12TC-SM
- Q.BELL QT43k03 UHD SMART
- Erisson 55ULEA99T2SM
- ARIELLI LED-50DN4A6 UHD SMART
- OK ODL43680U-TIB
How to Download:
Download all parts of the following given firmware/software and then extract any one of them you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here
LD.M538.A firmware file for free download:
- LD-M538-A-3840×2160-1.5G-8G-HUIDI-USB.part1
- LD-M538-A-3840×2160-1.5G-8G-HUIDI-USB.part2
- LD-M538-A-3840×2160-AKAI-AKTV704S-USB.part1
- LD-M538-A-3840×2160-AKAI-AKTV704S-USB.part2
- LD-M538-A-3840×2160-AKAI AKTV5010.part1
- LD-M538-A-3840×2160-AKAI AKTV5010.part2
- LD-M538-A-3840×2160-1.5G-8G-NORDMENDE ND75KS4000S.part1
- LD-M538-A-3840×2160-1.5G-8G-NORDMENDE ND75KS4000S.part2
Thank you
I need software number 3 from LD.M538.A
Becaus my tv ram 8G
ok i will update it soon
Thank you
Hello! I need firmware for OK ODL55680-U. What should i download?
check the mainboard then search google
Hello! I need firmware for polarline 50pl52ts-sm mainboard ldm538a, 1.5gb/
Software for zephir zvs49uhd with main board ld.m538.a?
first, try to hard reset. otherwise, load any matching firmware. remote & logo may change
The TV does not start, remains fixed red LED, which firmware to charge?
hardware issue, not software
Sir can you tell me hard reset button combination? For this board..
https://www.kazmielecom.tech/how-to-reset-smart-tv/
Sir need your help..my TV is JVC 65 inces ,hard reset do not work so I use akai firmware,but now it’s two division but at service menu have not one or two divisions,how can I solve it now?
check panel division in the panel setting otherwise search original software
Hello, I need firmware for AKAI AKTV 505 UHD SMART which uses this mainboard (ld.m538.a) Could you please upload it? thanks in advance:)
not available for this model. you can load another for this board but the remote and logo may be change
Hello, thank you so much for your prompt reply:) After replacing the mainboard, I loaded the one for AKTV704S and everything is perfect! (except for the remote but I found the solution). Thanks!
Come hai fatto per il telecomando
hi I have an arielli tv version 20190102203801 with DKN538 THERE IS A MORE UP-TO-DATE VERSION OF ANDROID 6.0. NO APP DOES NOT WORK EVEN AFTER RESTORING FACTORY DATA. THANK YOU VERY MUCH
can not update
Hi, I have upgrade AKTV 5010 UHD FIRMWARE v1.0 but I have lost sound from TV speakers can you tell me why and what i can do to resolve the problem tk Sir.
back to original
Same audio problem, aftre another flash “SOFTWARE UPGRADE ERROR” at 6x%.
Where we can find the original firmware?
Can we help me?
given is provided by the vendor
hello
i also updated aktv5010 and i lost the audio, how can i fix?
Thank you
hi,
Im search firmware for Skymaster 65SUA2500 , Main board LD.M538.A
Unfortunately, none of these helped me
pls help
not available for specific said brand
hello In search firmware for VIOS VI-96935 Main board LD.M538.A. Please help ,e
first, try to hard reset. otherwise, load any matching firmware. remote & logo may change
estoy buscando la actualizacion para una RCA 55″ RTV55Z1USM
HOLA TAMBIEN BUSCO SOFWARW PARA RTV55Z1USM
not available for said model
Hello, im looking the firmware for sansui smx6566usm it uses the board ld.m538.a wich one is the correct to flash?
Thanks
first, try to hard reset otherwise load firmware.
not available for said model but you can load according to your tv specifications. remote and logo may change
With your permission, I need a software for the WANSA screen, model wud55h8862s
The serial is on the LD.M538.A . board
I downloaded LD.M538.A 3840×2160 AKAI AKTV5010, but the remote control does not work
What do I do
better to use AKAI remote instead loading another one
I need Jvc 65 firmware..LDM538.zip
Do u give me the file?
i need qbell qt40ko3 firmware LD.M583A.ZIP .do u give me the file?
NA
i need fw for Fox 65dle888
NA
descargué todas sin empezar por la primera jajaj, algunas me volteaban la pantalla otras me la doblaban me la pixelaban, no funcionaba el control, hasta que descargué la primera que tiene v.01 y v.02 la v.01 me sirvió aunque mi tv no tiene 3 hdmi ni para satelite ni un puerto raro en vez de vga pero me funciona excelente todo lo demas me salvasteis de un gran aprieto, les compartiría una firmware que me enviaron desde HYUNDAI la cual me causó todo este embrollo ya que no era la exacta para mi tv y luego ellos me digeron que mas no tenian y asi llegué hasta aqui salvandome la vida, bueno el logo y el aspecto son otros pero me funciona, Muchas gracias
