LCD/LED & PLASMA TV Blinking Codes

LCD/LED & PLASMA TV Blinking Codes. Blink codes are the auto diagnostic system in some TV Brands. Blink code can tell us the faulty section of the TV by the number of times blinking the standby led light. When a system diagnoses the fault in any section of the tv it turns the tv on into standby/protection mode and displays the blinking. Here is below the details about LCD/LED & PLASMA TV Blinking Codes.

Download Here

Sony Blinking Code:

Following blinking codes behaviors may be different according to different models:

No Blink: it means the unit is dead. Check VDR and Fuse is the Power Supply

Continuous Blinking: Problem in Jungle IC. Communication is broken

One Blink: Not used for most models

Two Time Blinking: 2 Blinks Error

Over Current Protection (OCP)
Excessive PFC Voltage
Low Voltage Protection (LVP)
Over Voltage Protection (OVP)
Over Temperature Protection (OTP)
Short Circuit in Power Supply Circuit

Three Time Blinking: 3 Blinks Error

Over Voltage Protection (OVP)
Loss of 12V (Open Fuse)
Defective Power Circuit
Defective DC Regulator
Audio Error/Speaker Connection Failure
Defective Audio Amplifier
Abnormal Audio

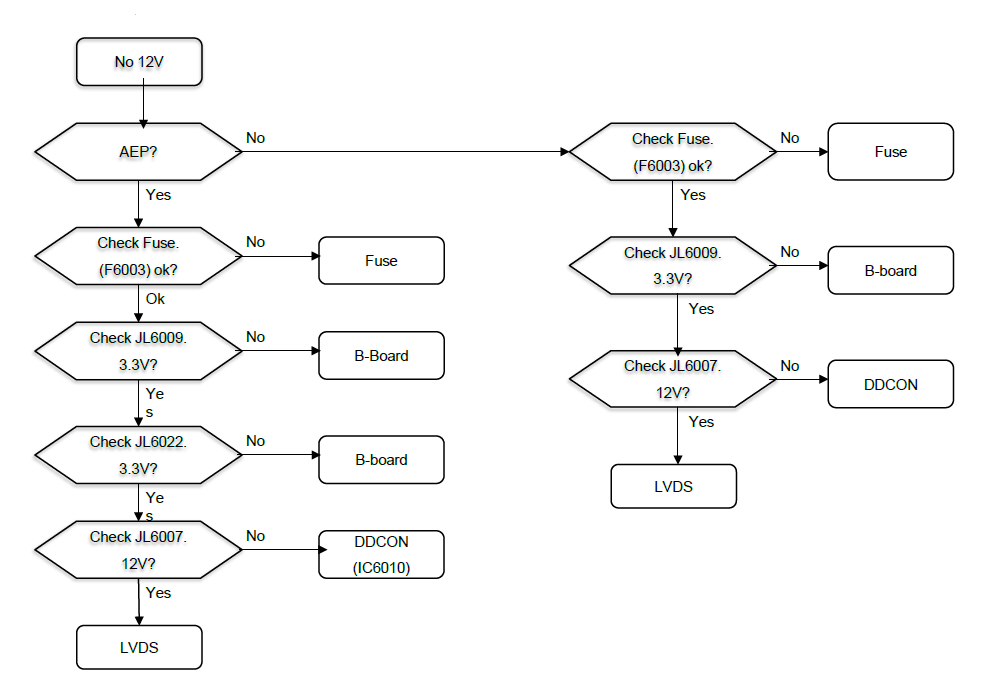

Four-Time Blinking: 4 Blinks Error

No Vertical (CRT)
Video Signal Mute (CRT)
Balancing Error (Back-light Dimming) (LED)
Panel Balancer Error

Five Time Blinking: 5 Blinks Error

AKB Circuit or Video Out Fault (CRT)
HFR Error
T-Con Error
Panel ID NVM Error
Isolation of T-Con and Mainboard
Communication Error Between T-Con Processor and Main Board Microprocessor

Six-Time Blinking: 6 Blinks Error

No Horizontal, No raster (CRT)
Panel Supply Failure
Defective Lamps
Panel Back-light Fault
Defective 24v Power Supply
Defective Backlight Inverter
Defective TV Microprocessor

Seven-Time Blinking: 7 Blinks Error

High voltage shutdown (CRT)
Thermal Error
Fan Error
Excessive Ambient Room Temperature
Failure of Temperature Sensor
Dust, Ventilation issue
Software Error

Eight Time Blinking: 8 Blinks Error

Audio Problem (CRT)

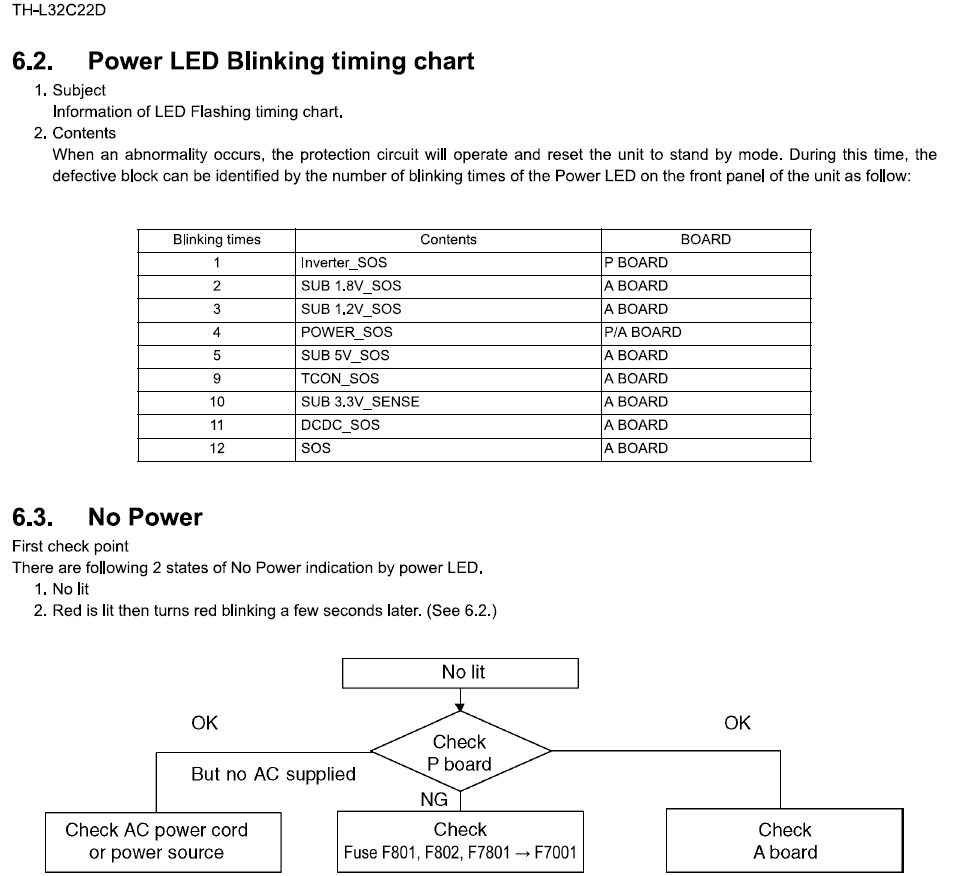

Panasonic Blinking Code:

One Time Blinking: 1 Blink Error

One blink of the power LED indicates a problem in the inverter circuit located on the LCD panel. The inverter board is not to be repaired in
the field. Therefore a replacement is required.

Three Time Blinking: 3 Blinks Error

Three blinks of the power LED indicates an over-current or over-voltage condition in one of the DC supplies of the AP board. The AP
board is repairable. Therefore the use of an ohmmeter and a peak-hold voltmeter is required to determine the cause of the shutdown. An over-voltage condition is definitely a defect of the AP board. An over-current condition may be due to a short circuit located in the AP board, Aboard, or the LCD panel.

Four or Six-Time Blinking: 4 Blinks, 6 Blinks Error

The AP board is responsible for four or six blinks of the power LED. The DTV9V and SUB_5V sources are produced on the AP board.
The MPU IC1100 monitors for their presence when the unit is connected to AC Power. A short or open circuit on the A board may also be responsible for their absence.

Five, Seven, or Eight Time Blinking: 5 Blinks, 7 Blinks, 8 Blinks Error

The A board is responsible for five, seven, or eight blinks of the power LED. The MAIN +3.3V, MAIN +5V, and MAIN +9V
sources are all produced the Aboard. The detection input pins of the MPU, IC1100, monitor for their presence.

Nine Time Blinking: 9 Blinks Error

Nine blinks of the power LED are due to a short circuit in the audio output circuit (s) of the unit. The audio output circuit is located the Aboard. Confirm the status of the speakers. If defective, perform a replacement. If ok, replace the Aboard.

Ten Time Blinking: 10 Blinks Error

Ten blinks of the power LED indicates a malfunction of IC4200, the frame converter. This IC resides the Aboard. Therefore ten blinks of
the power LED requires the replacement of the Aboard.

Panasonic Plasma Blinking Code:

All Panasonic Plasma TVs feature a protection circuit that will force the TV to shut down in case of a problem. The malfunctioning part can be identified by the number of blinks of the power light.

11G Models: VX100U / VX100E

2 blinks 15v SOS P-Board.
3 blinks 3.3v SOS D-Board / DN-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS P-Board / D-Board / DN-Board
6 blinks Driver SOS 1 SC-Board
7 blinks Driver SOS 2 SC-Board / SU-Board / SD-Board
8 blinks Driver SOS 3 SS-Board / SS2-Board
9 blinks Panel Config. SOS D-Board / DN-Board
10 blinks Communication Error Btwn Terminal Board / DS-Board Panel MPU & SCW4-MPU.
11 blinks Fan SOS PB-Board / Fan
12 blinks DN Config SOS DN-Board
13 blinks 3.5 / 2.5 / 1.8v SOS DN-Board.

9G Models : PS9UK / PH9UK / PF9UK

2 blinks 15v SOS P-Board
3 blinks 3.3v SOS D-Board / DA-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS P-Board / D-Board / DA-Board
6 blinks Driver SOS 1 SC-Board / SU-Board / SD-Boards
7 blinks Driver SOS 2 SC-Board / SS-Board
8 blinks Driver SOS 3 SS-Board
9 blinks Panel Config. SOS D-Board
10 blinks PF SOS P-Board
11 blinks Fan SOS Fan / PB-Board
D Board = Format Converter / Plasma AI / Sub-Field Processor
DA Board = Digital Signal Processor / Micon
P Board = Power Supply
PB Board = Fan Control
SC Board = Scan Drive
SD Board = Scan Out (Lower)
SS Board = Sustain Drive
SU Board = Scan Out (Upper)

10G Models: PH10UK / PF10UK

2 blinks 15v SOS P-Board
3 blinks 3.3v SOS D-Board / DN-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS P-Board / D-Board / DN-Board
6 blinks Driver SOS 1 SC-Board
7 blinks Driver SOS 2 SU-Board / SD-Board / SC-Board
8 blinks Driver SOS 3 SS-Board
9 blinks Panel Config. SOS D-Board
10 blinks Terminal Board SOS Terminal Board / DS-Board
11 blinks Fan SOS DN-Board / Fan

2006 — 8G Models : PD60U / PX6U / PX60U / PX600U

2 blinks 15v SOS D-Board
3 blinks 3.3v SOS D-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS D-Board
6 blinks Driver SOS 1 SU-Board / SD-Board / SC-Board / SC Energy Recovery Circuit)
7 blinks Driver SOS 2 SU-Board / SD-Board / SC-Board (SC Floating Voltage Area)
8 blinks Driver SOS 3 SS-Board (SS Energy Recovery Circuit)
9 blinks Panel Status
10 blinks PA SOS / Tuner SOS PA-Board / H-Board
11 blinks Fan SOS Fan
12 blinks Sound SOS PA-Board

2007 — 9G Models : PE77U / PX75U / PX77U / PZ77U / PZ700U / PZ750U

1 blink STB 5v SENSE Time Out DG-Board
2 blinks 15v SOS D-Board
3 blinks 3.3v SOS D-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS D-Board
6 blinks Driver SOS 1 SU-Board / SD-Board / SC-Board (SC Energy Recovery Circuit)
7 blinks Driver SOS 2 SU-Board / SD-Board / SC-Board (SC Floating Voltage Area)
8 blinks Driver SOS 3 SS-Board SS Energy Recovery Circuit
9 blinks Panel Config SOS
10 blinks Sub 5v SOS / Main 3.3v SOS DG-Board DTV 9v SOS / Tuner Power SOS
11 blinks Fan SOS PB-Board
12 blinks Sound SOS H-Board
13 blinks Communication Error with DG-Board IC8001 (Pesks Lite 2)

2008 — 10G Models : PX80U / PZ80U / PZ85U / PZ800U / PZ850U

1 blink STB 5v SENSE time out A-Board
2 blinks 15v SOS D-Board
3 blinks 3.3v SOS A-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS D-Board
6 blinks Driver SOS 1 SU-Board / SD-Board / SC-Board (SC Energy Recovery Circuit)
7 blinks Driver SOS 2 SU-Board / SD-Board / SC-Board (SC Floating Voltage Area)
8 blinks Driver SOS 3 SS-Board / SS2-Board (SS Energy Recovery Circuit)
9 blinks Communication Error between A-Board / D-Board Panel-MPU and SYS -MPU
10 blinks Sub 5v SOS / Main 3.3v SOS A-Board DTV 9v SOS / Tuner Power SOS
11 blinks Fan SOS PB-Board
12 blinks Sound SOS A-Board
13 blinks Communication Error A-Board with IC8001 (Pesks PRO)

2009 — 11G Models : PX14 / PS14 / C1 / U1 / X1 / S1 / G10 / G15 / V10

1 blink STB 5v SENSE Time Out A-Board
2 blinks 15v SOS A-Board
3 blinks 3.3v SOS A-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS A-Board
6 blinks Driver SOS 1 SU-Board / SD-Board / SC-Board / SS-Board (SC/ SS Energy Recovery Circuit)
7 blinks Driver SOS 2 SU-Board / SD-Board / SC-Board (SC Floating Voltage Area)
8 blinks Driver SOS 3 SS-Board / SS2-Board (SS FPC/ DET)
9 blinks Communication Error between A-Board Panel-MPU and SYS-MPU
10 blinks Sub 5V SOS / Main 3.3v SOS A-Board DTV 9V SOS / Tuner Power SOS
11 blinks Fan SOS A-Board
13 blinks Communication Error A-Board with IC8001

2010 — 12G Models : X24 / C2 / U2 / S2 / G20 / G25 / VT20 / VT25

2 blinks 15v SOS D-Board / P-Board
3 blinks 3.3v SOS D-Board
4 blinks Power SOS P-Board
5 blinks 5v SOS D-Board
6 blinks Driver SOS 1 SC-Board / D-SC FPC SC Energy Recovery Circuit D-SC FPC DET
7 blinks Driver SOS 2 SU-Board / SD-Board SU/ SD Connector DET SU/ SD Scan and Logic IC
8 blinks Driver SOS 3 SS-Board / SS2-Board SS FPC Detect SS Energy Recovery Circuit
9 blinks Discharge Control SOS D-Board
10 blinks Sub 5V SOS / Sub 3.3v SOS A-Board / SC-Board / SS-Board / PBoard Sub 9V SOS / Tuner Power SOS MIHO 3.3 SOS / LED 8v SOS
11 blinks Fan SOS A-Board / Fan
12 blinks Sound SOS A-Board / Speaker
