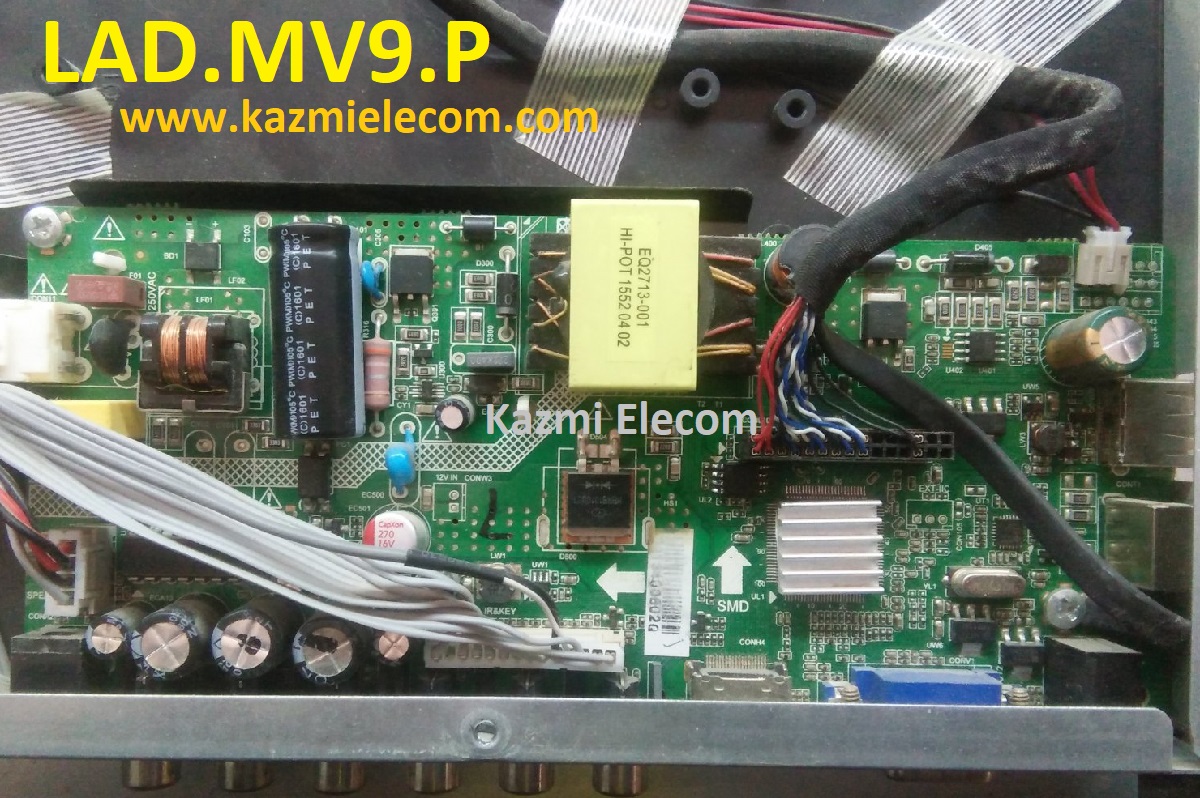

LAD.MV9.P LED TV Board

LAD.MV9.P is an analog LCD/LED TV Control Board that is suitable for the Asia Pacific and the Middle East Market. It can support 15-inch to 28-inch HD and Full HD screen panels which have a resolution is up to 1920×1080. Its USB interface supports Multimedia Playback and Software Upgrades as well. LAD_MV9_P has multiple HDMI ports that support 1.4 and its HDCP supports 1.1. LAD_MV9_P is compatible with Non-HD and FHD LCD/LED panel screens. LAD-MV9-P is widescreen-supported and also has a multi-language option. LAD-MV9-P has its special feature of Dual AV. The LAD.MV9.P software collection is given below for free download.

Download Here

General Specifications:

Board Make: China

Board Model: LAD.MV9.P

Main Chipset: TSUMV59

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 8 Watt (8 ohms)

Panel Voltage: +5V/+12V DC (Default 12V)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC220 Volt

Maximum Current: 5000mA (Without Panel)

Standby Power: <0.5W

Maximum Current for USB: 500mA

Flash IC: 4MB

Firmware Type: Backup Dump & USB Bootable

Firmware Name: LAMV59.bin

Note: The following given Software is USB bootable and backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

LAD.MV9.P Firmware Collection Free Download:
