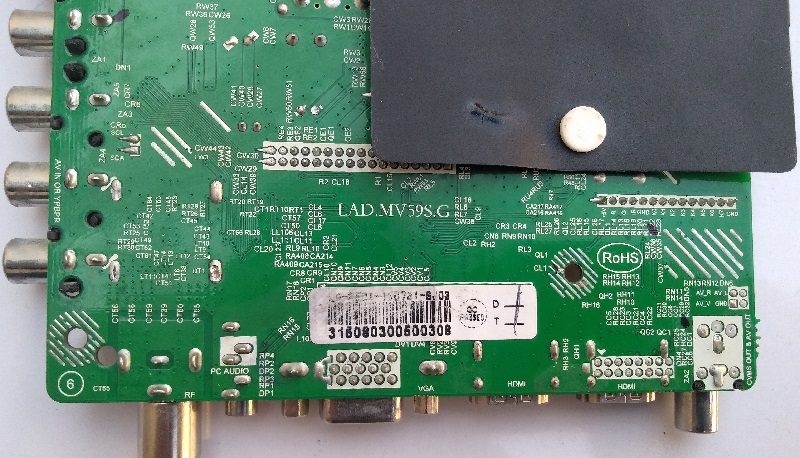

LAD.MV59S LCD/LED Controller Board
LAD.MV59S is designed for an LCD/LED HD TV Board that supports the screen size of 32″ to 42″. This is a three-in-one motherboard that has the main power module and an Inverter module in a single piece of a motherboard. It is best with its interfaces like Dual AV, Dual HDMI input, Dual USB interface, PC Input with audio, and Headphone jack. It has a 30-pin LVDS Connector screen cable and has 4 MB program storage memory.
LAD.MV59S mainboard has been designed with TSUMV59 chipset that’s why its picture quality is very excellent and the supported resolution is Full HD 1920×1080. Dual HDMI Inputs, Dual RCA, and Dual USB give the user a good experience. Users can connect their personal computer with this board by VGA port interface hence no need to use a separate monitor screen.
This Board is also available in different versions:
- LAD-MV59S-I
- LAD-MV59S-G
- LAD-MV59S-Q
General Specifications:
Brand/Mark: China Universal HD Three-in-One Board
Model: LAD.MV59S.G, LAD.MV59S.I, LAD.MV59S.Q
Product: LED TV
LED Backlight Current: 300mA*2
Flash IC: 4Mb
Screen supported: 32-42 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Firmware Name: NA
Firmware Type: Backup Dump
Service Code:
Menu+7710
How to Program:
- Format the USB Disk with FAT32 System
- Transfer the required resolution file into USB
- Insert the USB into TV Motherboard USB interface
- Connect the Keyboard&IR
- Power on the Main Board and wait until LED light Start Flashing
- Keep watching while the LED light stops flashing. It is Done
Caution:
All the pictures and specification details related to LAD.MV59S in this post is for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.
Pros:
There are many advantages to installing the given LAD.MV59S USB software or backup dump file. A few benefits are described below:
- The dead board can be recovered and operational by loading the given software backup file
- Remote and Logo may change at your own choice to satisfy the customer
- Money saving instead of changing the mainboard
- Time-saving instead of arranging a new board
- Customer satisfaction to do an urgent job
- Skill and confidence improvement
Cons:
There may be some disadvantages to installing the given LAD.MV59S USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:
- The working board may go to the standby position
- Remote Control may not work and the Logo may change by writing the given software
- Panel screen parameters may be changed
LAD.MV59S Version Upgrade:
Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.
LAD.MV59S Board Replacement:
If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the whole board.
Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
LAD.MV59S firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | LAD.MV59S.G_1366x768_China | Download |
| 2 | LAD.MV59S.G_1366x768_Samsung | Download |
| 3 | LAD.MV59S.G_1366x768_Sony | Download |
| 4 | LAD.MV59S.G_1920x1080_Samsung | Download |
| 5 | LAD.MV59S.G_1920x1080_Sony | Download |
| 6 | LAD.MV59S.I_1366x768 | Download |
| 7 | LAD.MV59S.I_1366x768_Samsung | Download |
| 8 | LAD.MV59S.I_1366x768_Sony | Download |
| 9 | LAD.MV59S.Q_1366x768 | Download |
| 10 | LAD.MV59S.G_3840×2160_Samsung | Download |
