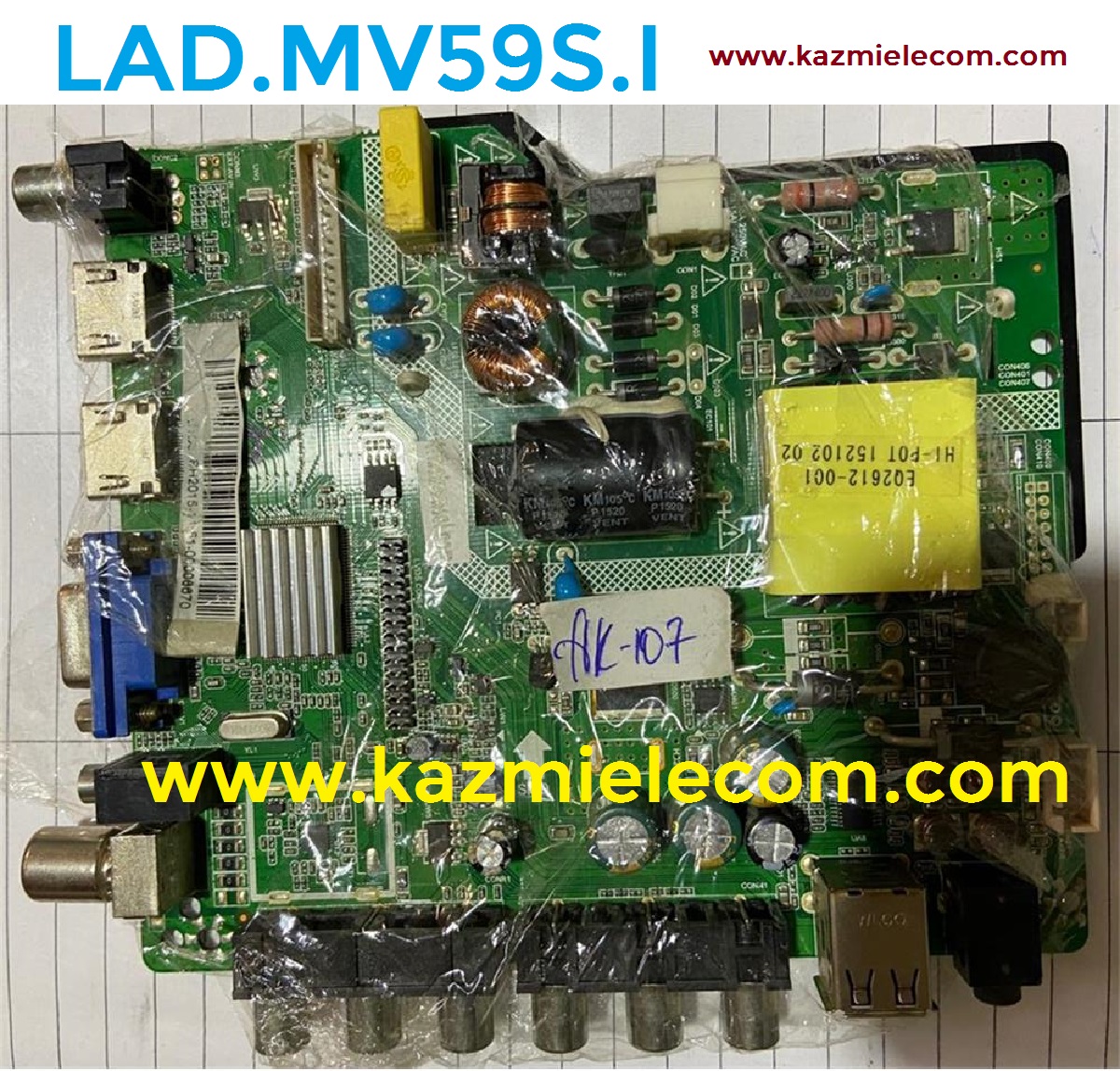

LAD.MV59S.I LED TV Board
LAD.MV59S.I is designed for an LCD/LED HD TV Board that supports the screen size of 32″. This is three in one motherboard that has the main power module and an Inverter module in a single piece of a motherboard. It is best with its interfaces like Dual AV, Dual HDMI input, Dual USB interface, PC Input with audio, and Headphone jack. It has 30 pins LVDS Connector screen cable and has 4Mb program storage memory. LAD.MV59S.I software collection is shared in this post for the technician’s support.
This Board is also available in different versions like:
- LAD-MV59S-B
- LAD-MV59S-G
- LAD-MV59S-Q
General Specifications:
Brand/Mark: China Universal HD Three in One Board
Model: LAD.MV59S.I
Main Chipset: TSUMV59XUS
Product: LED TV
LED Backlight Volt: V
LED Backlight Current: *2
Flash IC: 4Mb
Screen supported: 32 inch
Resolution: Up to 1920×1080
Panel Voltage: 12V
Power Input: 220V AC
Service Code:
Menu+7710
How to Program:
- Format the USB Disk with FAT32 System
- Transfer the required resolution file to a USB
- Insert the USB into the TV Motherboard USB interface
- Connect the Keyboard&IR
- Power on the Main Board and wait until the LED light Start Flashing
- Keep watching while the LED light stops flashing. It is Done
Note: Most files are read and saved with the programmer and will be loaded by a programmer.
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below some LAD.MV59S.I firmware for free download:
