LAD.MV59S.B Software Free Download

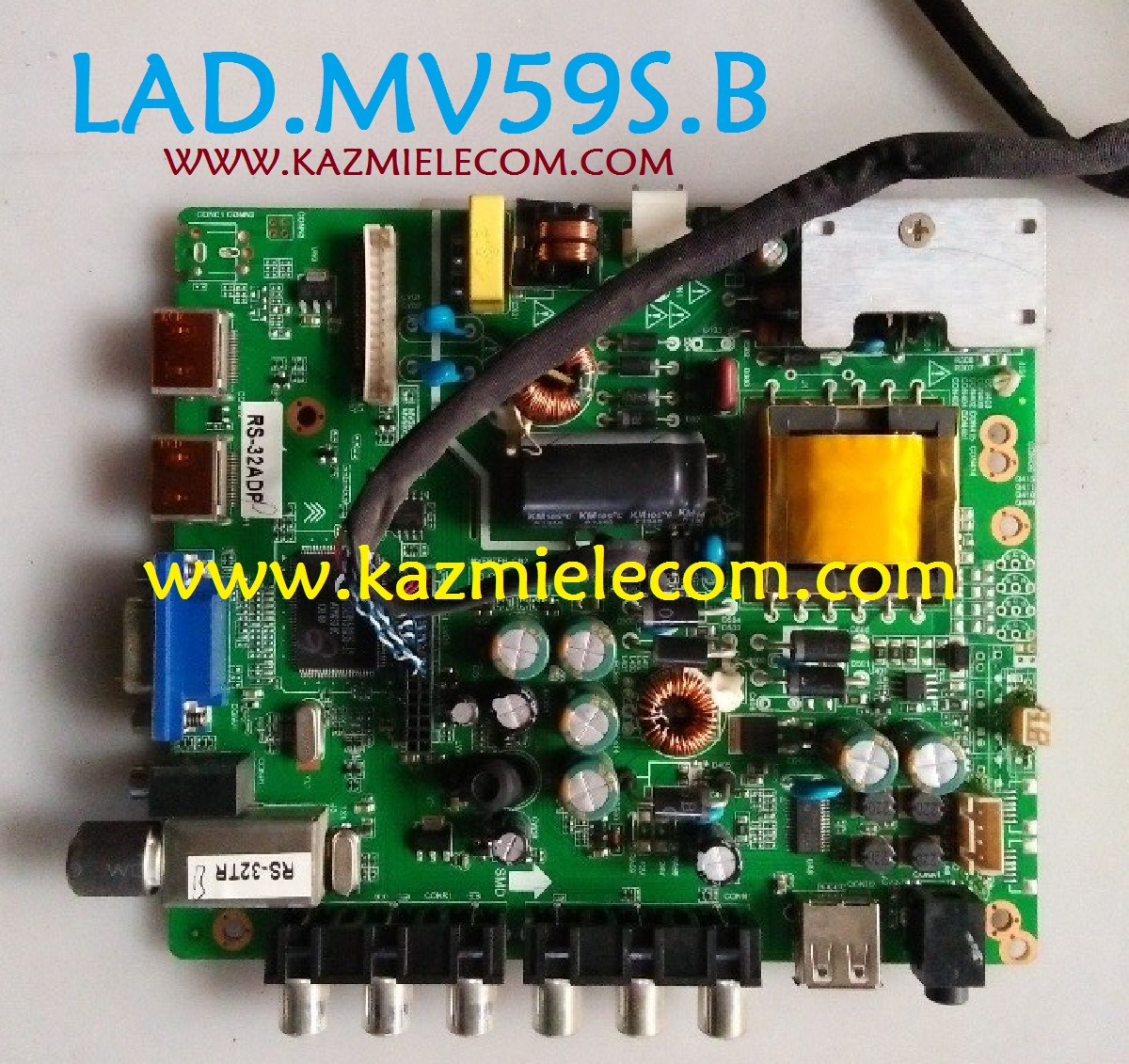

LAD.MV59S.B LED TV Board

LAD.MV59S.B is designed for an LCD/LED HD TV Board that supports the screen size of 32″ to 42″. This is three in one motherboard that has the main power module and an Inverter module in a single piece of a motherboard. It is best with its interfaces like Dual AV, Dual HDMI input, Dual USB interface, PC Input with audio, and Headphone jack. It has 30 pins LVDS Connector screen cable and has 4Mb program storage memory. LAD.MV59S.B software collection is shared in this post for the technician’s support.

Download Here

This Board is also available in different versions like:

LAD-MV59S-B
LAD-MV59S-G
LAD-MV59S-Q

General Specifications:

Brand/Mark: China Universal HD Three in One Board

Model: LAD.MV59S.B

Main Chipset: TSUMV59XUS

Product: LED TV

LED Backlight Volt: 81-98V

LED Backlight Current: 350mA*1

Flash IC: 4Mb

Screen supported: 32-42 inch

Resolution: Up to 1920×1080

Panel Voltage: 12V

Power Input: 220V AC

Service Code:

Menu+7710

How to Program:

Format the USB Disk with FAT32 System
Transfer the required resolution file to a USB
Insert the USB into the TV Motherboard USB interface
Connect the Keyboard&IR
Power on the Main Board and wait until the LED light Start Flashing
Keep watching while the LED light stops flashing. It is Done

Note: Most files are read and saved with the programmer and will be loaded by a programmer.

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about the download process watch the video Click Here

LAD.MV59S.B firmware for free download:
