LAD.MV56U LED TV Controller Board

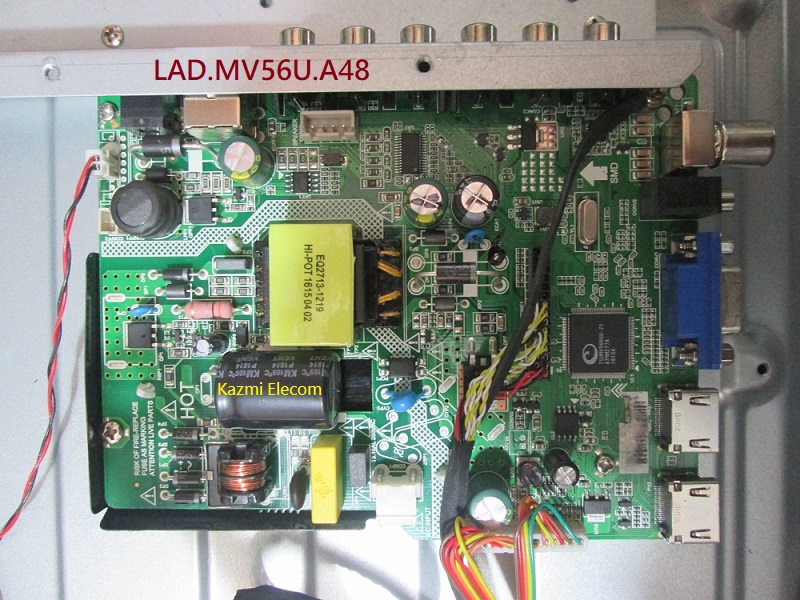

LAD.MV56U.A48 is an analog LCD/LED TV Combo Control Board with Power Supply and LED Driver with ATV Module. LAD_MV56U_A48 is designed for Asia-Pacific and the Middle-East market. Its USB slot can be used for updating software and playing multimedia files such as MP3, MP4, and JPEG. The Power Supply part is Energy-Efficient. Ultra-thin DC line switching power supply unit is with 48 watts Multi-Output which can support led backlight TFT Panels from 28″ to 32″.LAD-MV56U-A48 supports maximum resolution up to 1920×1080.

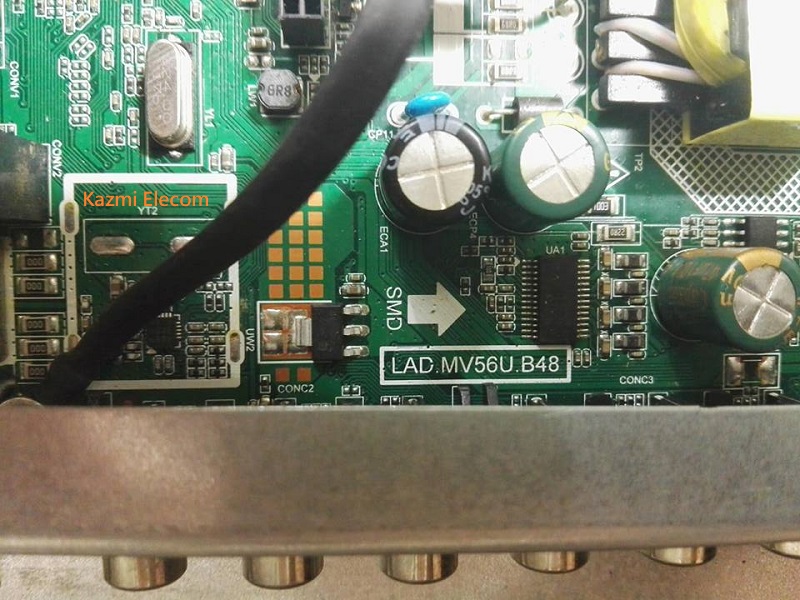

LAD.MV56U.B48 is also an analog TV Control Board with an integrated power supply, constant current backlight driver board, and ATV Module.LAD_MV56U_B48 is also suitable for 28 to 32″ screen panels with a maximum resolution supported is 1920×1080. LAD-MV56U-B48 is a powerful function of multimedia playback. It can play Most Multimedia files through the USB interface and supports Full HD 1080p Video.
This Board is also available in different versions like:
LAD-MV56U-A36
LAD-MV56U-A48
LAD-MV56U-A75
LAD-MV56U-B48
LAD-MV56U-C36
General Specifications:
Brand/Mark: China Universal HD Three in One Board
Model: LAD-MV56U-A36, LAD-MV56U-A48, LAD-MV56U-A75, LAD-MV56U-B48, LAD-MV56U-C36
Main Chipset: TSUMV56RUU and TSUMV56RUE, TSUMV56RUU-Z1
Product: LED TV
LED Backlight Current: 300mA*2
Flash IC: 4Mb
Screen supported: 32-42 inch
Resolution: Up to 1920×1080
Power Supply: 100V~240V AC
Panel Power: 12V
Standby Power Consumption: <0.5W
Frequency Range: 47Hz To 63 Hz
Service Code:
Menu+1147
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
Here are below some LAD.MV56U firmware for free download:
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | LAD.MV56U.A36_1366x768_Backup Dump | Download |
| 2 | LAD.MV56U.A36_1366x768_USB | Download |
| 3 | LAD.MV56U.A36_1920x1080_Samsung_Backup Dump | Download |
| 4 | LAD.MV56U.A36_BESTVISION 24 Inch_Backup Dump | Download |
| 5 | LAD.MV56U.A48_1366x768_Backup Dump | Download |
| 6 | LAD.MV56U.A48_1366x768_Samsung_Backup Dump | Download |
| 7 | LAD.MV56U.A48_1366x768_Sony_Backup Dump | Download |
| 8 | LAD.MV56U.A48_1366x768_USB | Download |
| 9 | LAD.MV56U.A48_KDL-32X9900 | Download |
| 10 | LAD.MV56U.A75_1366x768_Samsung_Backup Dump | Download |
| 11 | LAD.MV56U.A75_1366x768_Sony_Backup Dump | Download |
| 12 | LAD.MV56U.A75_1920x1080 | Download |
| 13 | LAD.MV56U.A75_ikon 32 Inch | Download |
| 14 | LAD.MV56U.A75_KS9800 | Download |
| 15 | LAD.MV56U.B48_1366x768_Backup Dump | Download |
| 16 | LAD.MV56U.B48_1366x768_Samsung_Backup Dump | Download |
| 17 | LAD.MV56U.B48_1366x768_Sony_Backup Dump | Download |
| 18 | LAD.MV56U.B48_1366x768_Tuner 5110_USB | Download |
| 19 | LAD.MV56U.B48_1920x1080_Samsung_Backup Dump | Download |
| 20 | LAD.MV56U.B48_Nobel 32DN4 | Download |
| 21 | LAD.MV56U.C36_1366x768_Samsung_Backup Dump | Download |
