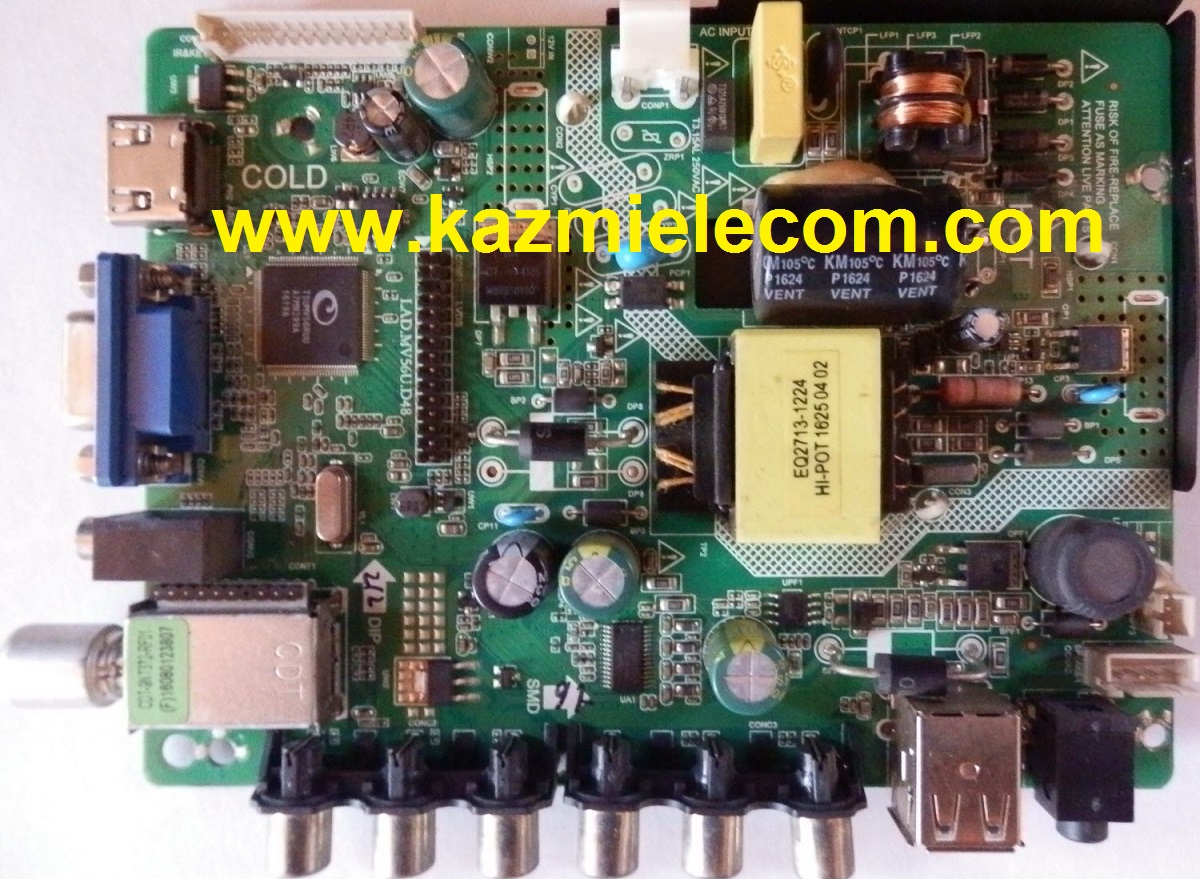

LAD.MV56U.D48 LED TV Board
LAD.MV56U.D48 is an analog LCD/LED TV Combo Control Board with Power Supply and LED Driver with ATV Module. LAD_MV56U_D48 is designed for Asia-Pacific and the Middle-East market. Its USB slot can be used for updating software and playing multimedia files such as MP3, MP4, and JPEG. The Power Supply part is Energy-Efficient. Ultra-thin DC line switching power supply unit is with 45 watts Multi-Output which can support led backlight TFT Panels from up to 39″.LAD-MV56U-D48 supports maximum resolution up to 1920×1080.
This Board is also available in different versions like:
- LAD-MV56U-A36
- LAD-MV56U-A48
- LAD-MV56U-A75
- LAD-MV56U-B48
- LAD-MV56U-C36
General Specifications:
Brand/Mark: China Universal HD Three in One Board
Model: LAD-MV56U-D48
Main Chipset: TSUMV56RUU
Product: LED TV
LED Backlight Voltage:
LED Backlight Current:
Flash IC: 4Mb
Screen supported: up to 39 inch
Resolution: Up to 1920×1080
Sound IC:
Tuner IC:
Power Supply: 100V~240V AC
Panel Power: 12V
Standby Power Consumption: <0.5W
Frequency Range: 47Hz To 63 Hz
Service Code:
Menu+1147
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
LAD.MV56U.D48 firmware for free download:
