LAD.MV56U.A36 Firmware Free Download

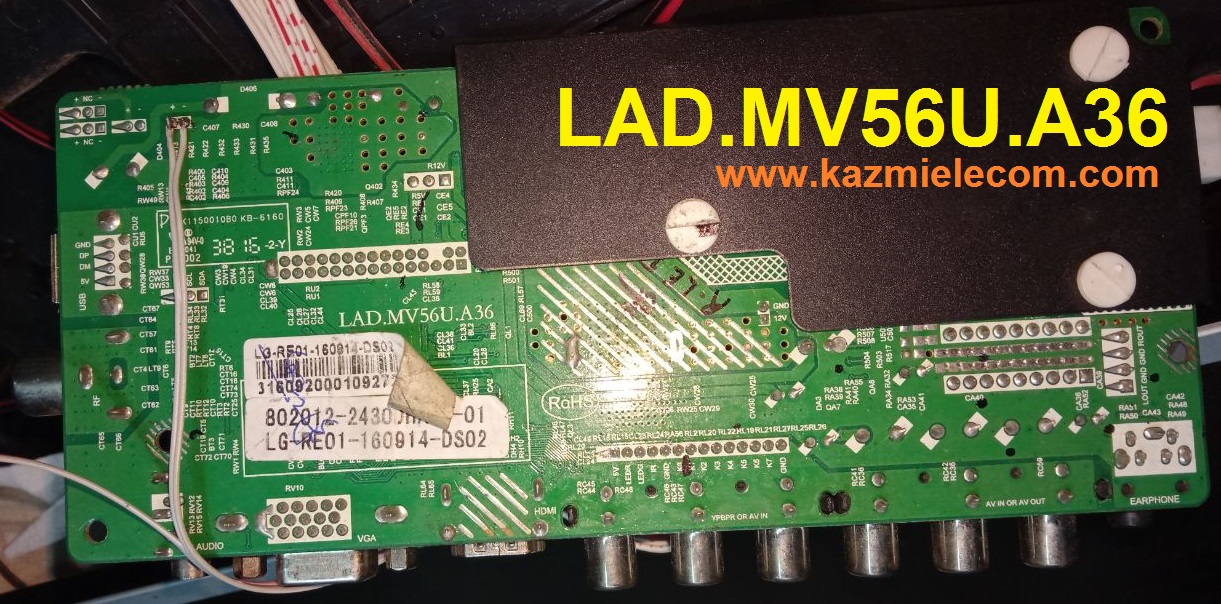

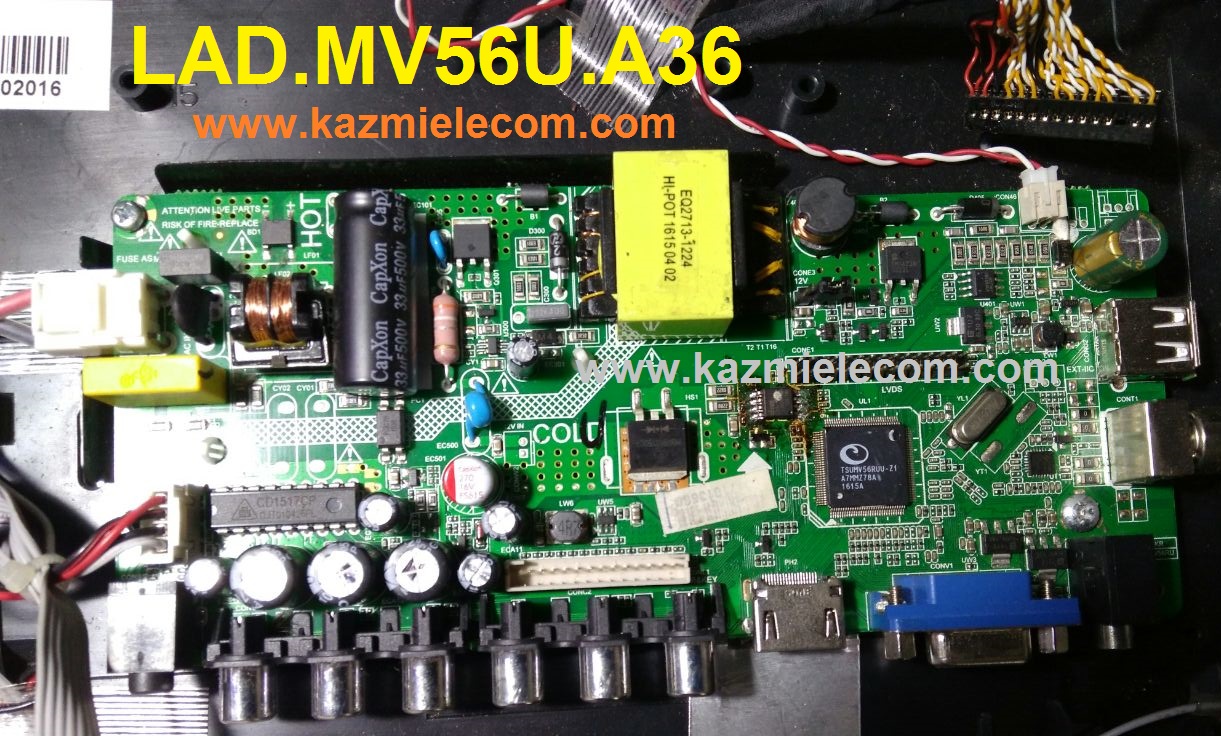

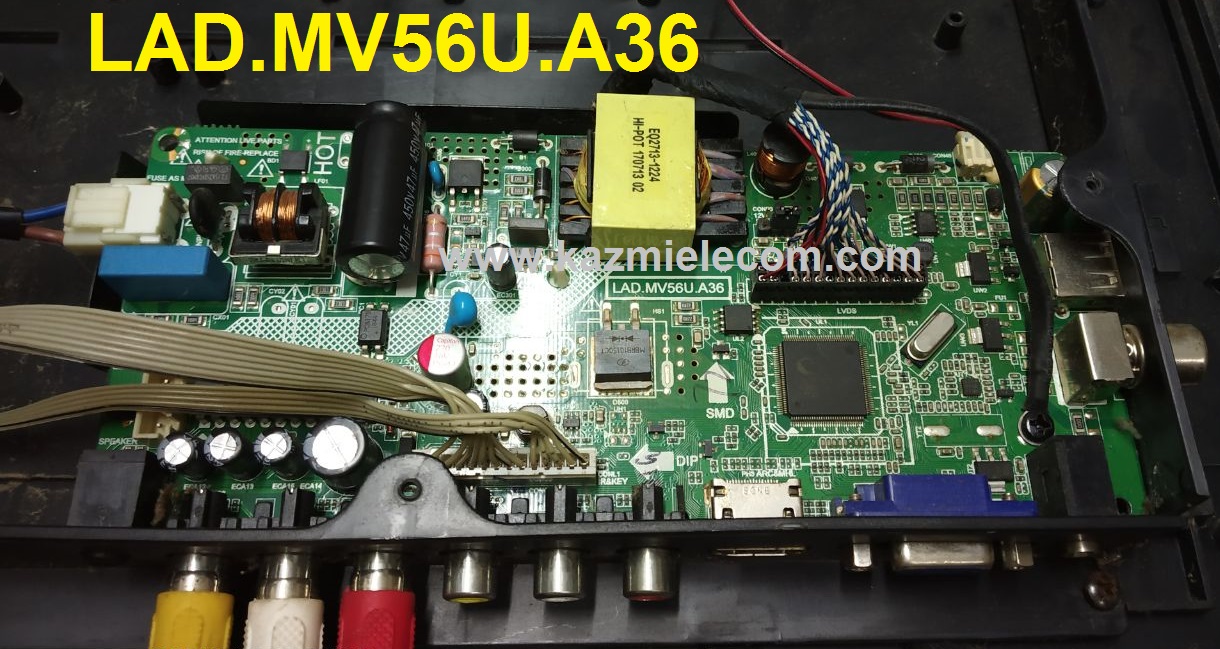

LAD.MV56U.A36 LED TV Board

LAD.MV56U.A36 is an analog LCD/LED TV Combo Control Board with a Power Supply and LED Driver with an ATV Module. LAD_MV56U_A36 is designed for Asia-Pacific and the Middle-East market. Its USB slot can be used for updating software and playing multimedia files such as MP3, MP4, and JPEG.

Download Here

The Power Supply part is Energy-Efficient. Ultra-thin DC line switching power supply unit with 45 watts Multi-Output which can support led backlight TFT Panels from up to 24″.LAD-MV56U-A36 supports maximum resolution up to 1920×1080.

This Board is also available in different versions:

LAD-MV56U-A36
LAD-MV56U-A48
LAD-MV56U-A75
LAD-MV56U-B48
LAD-MV56U-C36

General Specifications:

Brand/Mark: China Universal HD Three-in-One Board

Model: LAD-MV56U-A36

Main Chipset: TSUMV56RUU-Z1

Product: LED TV

LED Backlight Voltage: 18-21V

LED Backlight Current: 300mA*2

Flash IC: 4Mb

Screen supported: up to 24 inch

Resolution: Up to 1920×1080

Sound IC: CD1517CP

Tuner IC: R842, 5010

Power Supply: 100V~240V AC

Panel Power: 5V, 12V (Jumper Cap Setting)

Standby Power Consumption: <0.5W

Frequency Range: 47Hz To 63 Hz

Service Code:

Menu+1147

Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. For more Detail about the download process watch the video Click Here

LAD.MV56U.A36 firmware for free download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	LAD.MV56U.A36_1366x768_Backup Dump	Download
2	LAD.MV56U.A36_1366x768_USB	Download
3	LAD.MV56U.A36_1920x1080_Samsung_Backup Dump	Download
4	LAD.MV56U.A36_BESTVISION 24 Inch_Backup Dump	Download
5	LAD.MV56U.A36_1366x768_ATA_Dump	Download
6	LAD.MV56U.A36_1366x768_Elryan_Dump	Download
7	LAD.MV56U.A36_1366x768_Samsonic_Dump	Download
8	LAD.MV56U.A36_1920x1080_Gitex_Dump	Download
9	LAD.MV56U.A36_1920x1080_Sony_Dump	Download
