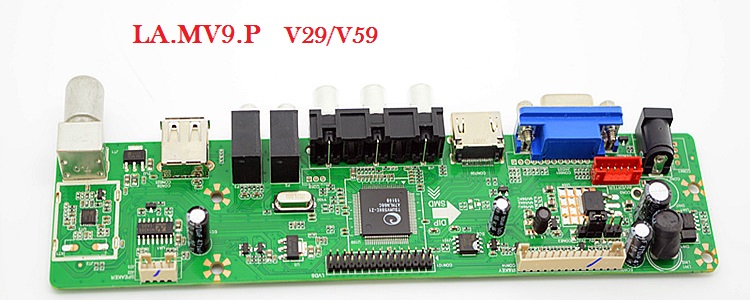

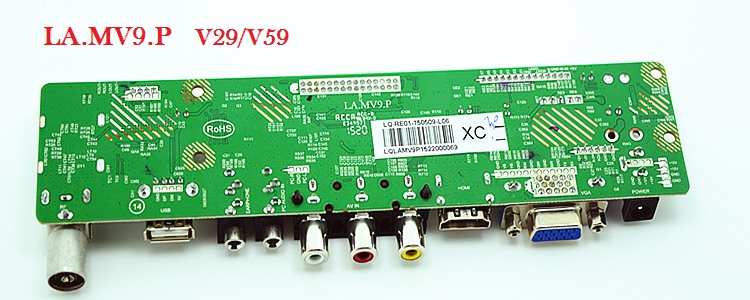

LA.MV9.P V29/v59 Universal Board
LA.MV9.P is a flat panel TV control board designed for Asia-Pacific Market, the board is excellent performance and maturity. LA.MV9.P can support LCD and LED panels, maximum resolution supported is1920x 1080. It’s apt to drive an LCD or LED panel smaller than 26’ to get a cost-effective and high-performance and popular flat-panel analog TV set. LA MV9 P supports normal input types, such as HDMI, USB, AV, VGA, ATV, etc.
LA.MV9.P can support three main chips: TSUMV29， TSUMV39, and TSUMV59. When TSUMV29 IC is adopted, LA-MV9-P has no multimedia function. When TSUMV39 IC is Adopted, it can play MP3 and image files through its USB slot. When TSUMV59 IC is adopted, LA_MV9_P has powerful multimedia playback capability and can play most multimedia files through its USB Slot， including 1080P video files. It’s very easy to upgrade firmware by a USB disk for LA.MV9.P
Basic Info:
Model No. LA.MV9.P
Main Chipset: TSUMV29, TSUMV39, TSUMV59
Screen Supported: 10-32″
Display Format: 1080P
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Source/Power
Multi-Language OSD: Yes (English/French/Spanish/Portuguese/Chinese)
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 2.5 Watt (8 ohm)
Panel Voltage: 3.3V/5V/12V (jumper cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.6W (for the mainboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Connect the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the TV, it will start flashing, Wait for indicator led stops flashing
- Done. Unplug the Udisk
- Note that It will take max one minute to upgrade the firmware
Factory Service Mode:
Menu+1147
Note: Following firmware collection is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
LA.MV9.P Firmware All resolutions Free Download Here :
| S.NO. | BOARD/DESCRIPTION | DOWNLOAD LINK |
|---|---|---|
| 1 | LA.MV9.P-V29_640x480_USB | Download |
| 2 | LA.MV9.P-V29_800x600_USB | Download |
| 3 | LA.MV9.P-V29_1024x768_USB | Download |
| 4 | LA.MV9.P-V29_1280x720_USB | Download |
| 5 | LA.MV9.P-V29_1280x768_USB | Download |
| 6 | LA.MV9.P-V29_1280x1024_USB | Download |
| 7 | LA.MV9.P-V29_1366x768_USB | Download |
| 8 | LA.MV9.P-V29_1400x1050_USB | Download |
| 9 | LA.MV9.P-V29_1440x900_USB | Download |
| 10 | LA.MV9.P-V29_1600x900_USB | Download |
| 11 | LA.MV9.P-V29_1600x1200_USB | Download |
| 12 | LA.MV9.P-V29_1680x1050_USB | Download |
| 13 | LA.MV9.P-V29_1920x1080_USB | Download |
| 14 | LA.MV9.P-V29_1920x1200_USB | Download |
| 15 | LA.MV9.P-V29_Mix_USB | Download |
| 16 | LA.MV9.P-V59_800x600_USB | Download |
| 17 | LA.MV9.P-V59_1024x768_USB.part1 | Download |
| LA.MV9.P-V59_1024x768_USB.part2 | Download | |
| LA.MV9.P-V59_1024x768_USB.part3 | Download | |
| LA.MV9.P-V59_1024x768_USB.part4 | Download | |
| LA.MV9.P-V59_1024x768_USB.part5 | Download | |
| 18 | LA.MV9.P-V59_1280x768_USB | Download |
| 19 | LA.MV9.P-V59_1280x800_USB | Download |
| 20 | LA.MV9.P-V59_1280x960_USB | Download |
| 21 | LA.MV9.P-V59_1280x1024_USB.part1 | Download |
| LA.MV9.P-V59_1280x1024_USB.part2 | Download | |
| 22 | LA.MV9.P-V59_1366x768_USB.part1 | Download |
| LA.MV9.P-V59_1366x768_USB.part2 | Download | |
| LA.MV9.P-V59_1366x768_USB.part3 | Download | |
| LA.MV9.P-V59_1366x768_USB.part4 | Download | |
| LA.MV9.P-V59_1366x768_USB.part5 | Download | |
| 23 | LA.MV9.P-V59_1400x1050_USB | Download |
| 24 | LA.MV9.P-V59_1440x900_USB | Download |
| 25 | LA.MV9.P-V59_1600x900_USB | Download |
| 26 | LA.MV9.P-V59_1600x1200_USB | Download |
| 27 | LA.MV9.P-V59_1680x1050_USB | Download |
| 28 | LA.MV9.P-V59_1920x1080_USB.part1 | Download |
| LA.MV9.P-V59_1920x1080_USB.part2 | Download | |
| LA.MV9.P-V59_1920x1080_USB.part3 | Download | |
| LA.MV9.P-V59_1920x1080_USB.part4 | Download | |
| LA.MV9.P-V59_1920x1080_USB.part5 | Download | |
| 29 | LA.MV9.P-V59_1920x1200_USB | Download |
| 30 | LA.MV9.P-V59_Mix_USB.part1 | Download |
| LA.MV9.P-V59_Mix_USB.part2 | Download |
For video tutorials, visit “Kazmi Elecom” my youtube channel.
