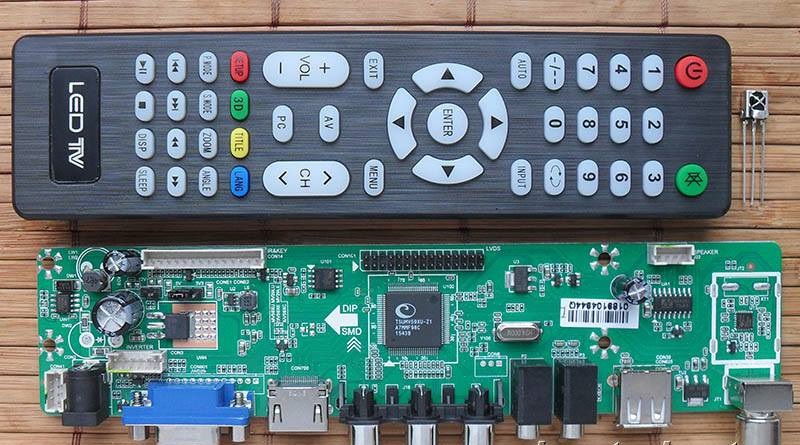

LA.MV59.P16 Universal Board

LA.MV59.P16 is an analog TV control board designed for Asia-Pacific Market, the board is excellent performance and maturity. LA_MV59_P16 can support LCD and LED panels, the maximum resolution supported is 1920x 1080. It’s apt to drive an LCD or LED panel smaller than 26’ to get a cost-effective and high-performance and popular flat-panel analog TV set. LAMV59 supports normal input types, such as HDMI, USB, AV, VGA, ATV, etc.

LA.MV59.P16 is a universal LCD LED TV board and can be installed with 15-inch to 55-inch screen panels. It supports approx. all resolution formats.

Basic Info:

Model No. LA.MV59.P16

Main Chipset: TSUMV59

Screen Supported: 10-32″

Display Format: 1080P

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Source/Power

Multi-Language OSD: Yes (English/French/Spanish/Portuguese/Chinese)

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 2.5 Watt (8 ohm)

Panel Voltage: 3.3V/5V/12V (jumper cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.6W (for the mainboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

1. Copy the Required Firmware/software into the FAT32 USB Disk
2. Connect the U disk to the Mainboard USB port of the LCD/LED TV
3. Switch ON the TV, it will start flashing, Wait for the indicator led stops flashing
4. Done. Unplug the U-disk
5. Note that It will take max one minute to upgrade the firmware

Factory Service Mode:

Menu+1147

Note: Following firmware collection is USB bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

LA.MV59.P16 Firmware All resolutions Free Download Here :

• LA-MV59-P16-1024×600-Firmware-USB
• LA-MV59-P16-1024×768-Firmware-USB
• LA-MV59-P16-1152×768-Firmware-USB
• LA-MV59-P16-1280×720-Firmware-USB
• LA-MV59-P16-1280×768-Firmware-USB
• LA-MV59-P16-1280×800-Firmware-USB
• LA-MV59-P16-1280×854-Firmware-USB
• LA-MV59-P16-1280×960-Firmware-USB
• LA-MV59-P16-1280×1024-Firmware-USB
• LA-MV59-P16-1366×768-Firmware-USB
• LA-MV59-P16-1400×900-Firmware-USB
• LA-MV59-P16-1400×1050-Firmware-USB
• LA-MV59-P16-1440×900-Firmware-USB
• LA-MV59-P16-1440×960-Firmware-USB
• LA-MV59-P16-1600×900-Firmware-USB
• LA-MV59-P16-1600×1200-Firmware-USB
• LA-MV59-P16-1680×945-Firmware-USB
• LA-MV59-P16-1680×1050-Firmware-USB
• LA-MV59-P16-1920×1080-Firmware-USB
• LA-MV59-P16-1920×1200-Firmware-USB
• LA-MV59-P16-2048×1152-Firmware-USB
