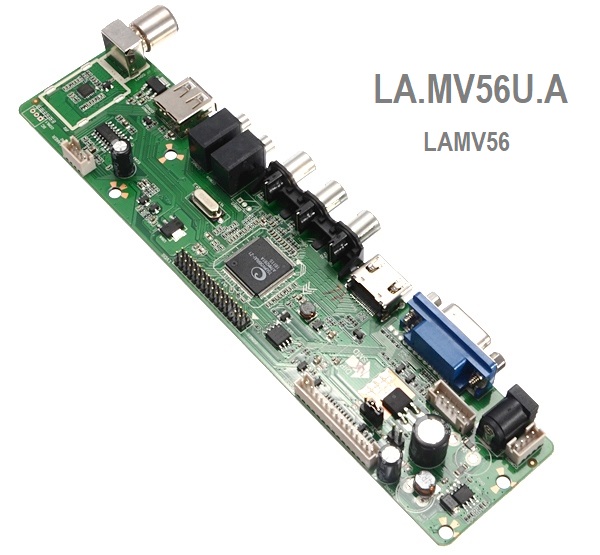

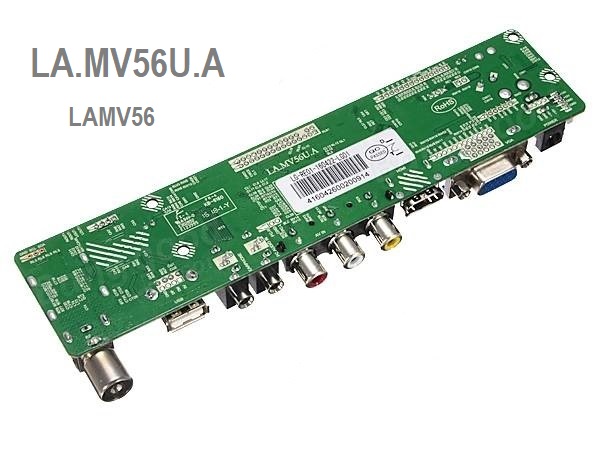

LA.MV56U.A Universal Board
LA.MV56U.A is a multi-functional motherboard, ready to be installed on any monitor to expand its functions. The monitor becomes a modern TV and works with the remote. Also, the board with a burnt staff scaler is suitable for the repair of old monitors. A prerequisite is a working matrix. The board is built on the MStar TSUM56RUU-Z1 multimedia chip, which is the next step in the development of the V59 chip since the latter is out of production.
LA.MV56U.A supports the playback of images and video inputs, as well as reading music and movies from flash drives. The board has input interfaces VGA, HDMI, AV, and TV.
Basic Features:
Processor: TSUM56RUU-Z1
Tuner: R842
Sound amplifier: NS4263
Memory: 25Q32BVSSIG
Maximum resolution: 1920 x 1200
Screen Supported: 10-32″
Display Format: 1080P
Aspect Ratio: 4:3, 16:9 & 16:10
General Specifications:
TV System: PAL/SECAM/NTSC
Panel Interface: Single channel or Dual channel LVDS
Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Source/Power
Multi-Language OSD: Yes (English/French/Spanish/Portuguese/Chinese)
Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out
Audio O/P Power: 2 x 2.5 Watt (8 ohm)
Panel Voltage: 3.3V/5V/12V (jumper cap setting)
USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)
Electrical Parameters:
Working Input Voltage: DC +12 Volt
Maximum Current: 2000mA (Without Panel)
Standby Power: <0.6W (for the mainboard only)
Maximum Current for USB: 500mA
How to Upgrade Firmware:
- Copy the Required Firmware/software in FAT32 USB Disk
- Connect the U disk into the Mainboard USB port of LCD/LED TV
- Switch ON the TV, it will start flashing, Wait for indicator led stops flashing
- Done. Unplug the Udisk
- Note that It will take max one minute to upgrade the firmware
Factory Service Mode:
Menu+1147
Note: Following firmware collection is usb bootable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware File:
Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here
LA.MV56U.A Firmware All resolutions Free Download Here :
- LAMV56-800×600-FIRMWARE-USB
- LAMV56-1024×600-FIRMWARE-USB
- LAMV56-1024×768-FIRMWARE-USB
- LAMV56-1280×720-FIRMWARE-USB
- LAMV56-1280×768-FIRMWARE-USB
- LAMV56-1280×800-FIRMWARE-USB
- LAMV56-1280×960-FIRMWARE-USB
- LAMV56-1280×1024-FIRMWARE-USB
- LAMV56-1366×768-FIRMWARE-USB
- LAMV56-1400×1050-FIRMWARE-USB
- LAMV56-1440×900-FIRMWARE-USB
- LAMV56-1600×900-FIRMWARE-USB
- LAMV56-1600×1200-FIRMWARE-USB
- LAMV56-1680×1050-FIRMWARE-USB
- LAMV56-1920×1080-FIRMWARE-USB
- LAMV56-1920×1200-FIRMWARE-USB
- LAMV56-3840×2160-FIRMWARE-USB
