Konka LED55X1800A Software Free Download

Konka LED55X1800A LED TV

Konka LED55X1800A is a 55-inch Android smart LED backlight TV. The supported maximum resolution of this TV is 1920×1080 Full HD. Its Operating system is Android 4.3. It can not support 3D Display. Its brightness is 600-1000 lumens. The Screen ratio of this LED TV is 16:9 and its Screen refresh rate is 240HZ. It is a Backlight LED TV. The scanning method used in this TV is Progressive Scan. Its response time is 3ms which is very good. It has a dual speaker system with 16 watts of RMS sound output. This LED TV has also the option of Earphones which is the very best option for the users.

Download Here

Konka LED55X1800A smart TV has Multi-screen interaction support. The Wi-Fi is built-in in this TV. Bluetooth is also built-in. The main input operating voltage is 220V. It has triple USB input ports. USB video formats supported and MP3, JPG, etc. Users can connect multiple USB devices with this TV such as pen drives for updating software, and hard disk drives, and can play multimedia files. Its CPU is Quad Core which processing is very fast. The other features of this LED TV are UI, thumb control, and other latest technologies, easily enjoy millions of Android apps.

Konka LED55X1800A General Information:

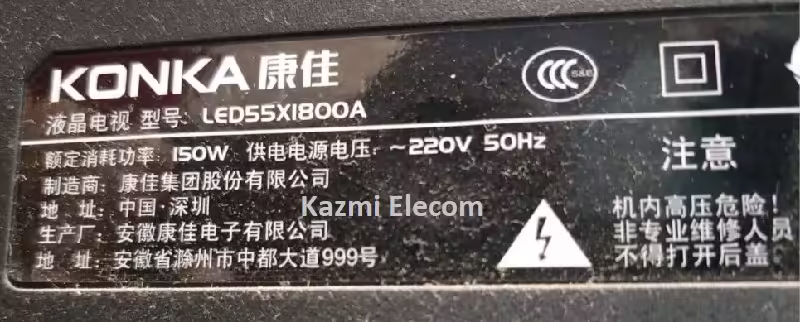

Model: LED55X1800A

Chassis: RTD2984

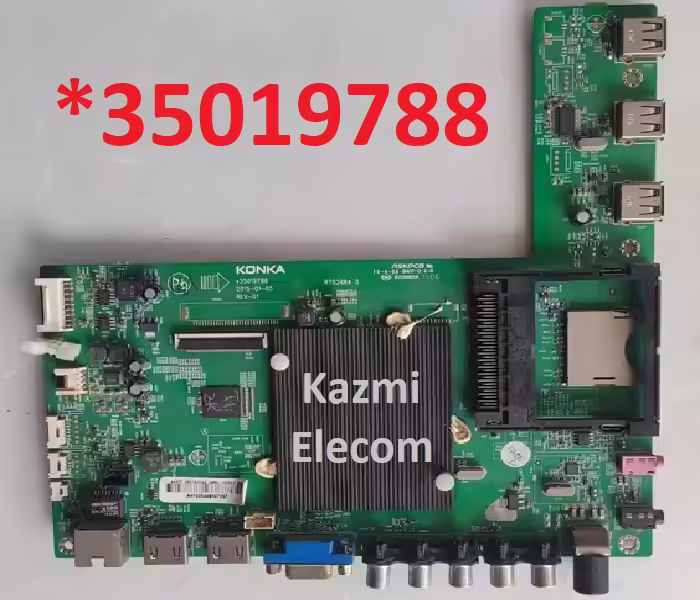

Main Board: *35019788

Panel: 55″

T-CON: NA

Resolution: 1920×1080

Audio Power: 2x8W (8 ohm)

Backlight Current: mA

Backlight Power: NA

USB Ports: 3

HDMI Ports2

SD Card Reader: Yes

RJ45: Yes

Analog Tuner: PAL, SECAM

Wifi: Built-in

Mira-Cast: No

Satellite Input: No

RAM: 512MB

ROM: 4 GB EMMC Flash

Power Rating: 220V~240V 50Hz

Power Consumption: 150 Watt

Firmware: NA

Firmware Type: EMMC Backup Dump

Product User: KONKA

Konka LED55X1800A Technical Specifications:

Product Brand KONKA
Product Model LED55X1800A
Energy efficiency rating
Screen size 55 inches
Resolution 1080P (1920*1080)
Operating system Android 4.3
3D Display Not supported
Brightness 600-1000 lumens
Screen ratio 16:9
Screen refresh rate 240HZ
Backlight led
Scanning method Progressive Scan
Response time 3ms
Speaker 2
Earphone 1
Multi-screen interaction support
Wi-Fi built-in
Bluetooth built-in Operating voltage 220V
USB video formats supported MP3, JPG
Product Positioning Full HD TV, LED TV, Internet TV, Smart TV
Recommended viewing distance 4.5-5.5 m
CPU Quad Core
Other features UI, thumb control, and other latest technologies, easily enjoy millions of Android apps

How to Write EMMC Backup:

Download the given Konka LED55X1800A EMMC backup shared in this post below
Find the EMMC Pinouts
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following Konka LED55X1800A firmware is a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
