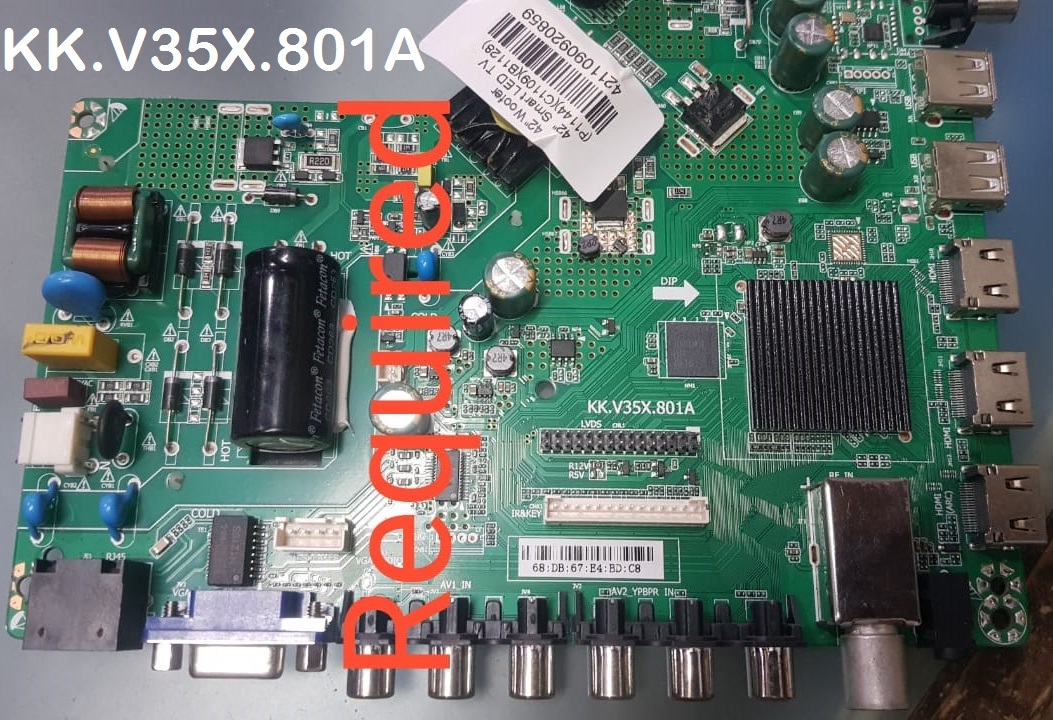

KK.V35X.801A Smart Android Board
KK.V35X.801A is an Android network driver smart LED TV board with an FHD resolution of 1920×1080. KK_V35X_801A has a powerful wifi system. Smart FHD TV With Latest Android Platform version 9.0 and great features to entertain Full HD Wide Screen with better to work SMART. KK V35X 801A Smart Board has multiple ports A/V, USB interface Ports, and many HDMI ports in addition to the VGA interface for computers.
KK-V35X-801A also has a LAN/RJ45 Connector interface port for the wired internet network. KK.V35X.801A is a Combo Network Triple play board that has a Digital TV tuner built-in in it (DTMB/DVB-C/ATSC/ISDB-T). The Graphics and Sound quality of the KK.V35X.801A Android board is very good and the Response rate is very efficient. KK.V35X.801A China smart network board can support up to 42″ LED Panels. KK.V35X.801A firmware file is available for the technician’s support.
General Specifications:
Brand/Mark: Main Board (Android WIFI Network Drive Smart Board)
Main Board: KK.V35X.801A
Main Chipset: Hi3751V350
Operating System: Android 9
CPU: Multi Core Arm Cortex A53 64-bit
GPU: Multi-Core Mali-T450
CPU Frequency: 1.2GHz
GPU Frequency: 432MHz
RAM: 512MB
ROM: 4 Gb
Resolution: up to 1920×1080
Screen Size supported: 32 to 42 Inch
Audio Output power: 2x8W
Mirror Mode: Yes
Logo Change: Yes
Tuner:
Input Voltage: 200-240V AC
Firmware Name: allupgrade_V3500N0N_4G_512M_75.bin
Firmware Version:
KKV35X_India_V35X_801A_Hi3751V350_DMO-eng 9_MI200402ZZY001_STAR_ASIA_V35X801A_600MA
Panel Name: LVDS_VGA_1366x768_60Hz_2D
Firmware Type: USB Updateable Firmware
Product User: Star Asia
Note The following given Software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download Firmware Files:
Download all parts of the following given firmware/Software and then extract any one of them you will get the folder. Now copy the files to USB. For more Details about the download process watch the video Click Here
KK.V35X.801A firmware file for free download:
KK.V35X.818A
Is me ka software
Resolatoin కోడ్ plese requst intex 43 inch fullhd panell note match
why your files in different parts ?
easy to upload
bhai download option aa nahi raha …error aa raha haii please check
OK I ADD LINK2
Usb mai software dal diya hai lekin Load nhi ho raha File name rename kr k kon sa likhu please help me kazmi bhai
usb disk change kar k check karen
hi dear, kya KK.v35x.818A ke liye alag file hogi ya same hi rahegi, or kya file name change karna padega as ye vali bin file se to software reboot nahi ho raha
same ho jye gi
Bhai mene kk.v35x.818a
Me setting me jake developer mode me jake ke kuch kar diya tha ab tv start nahi ho rahi hai
Wisdom share ara hai bas kya karu plzz help
software load hoga
Hlw bhai
Kk.v35x.818a
Ko reset nahi kar sakte kya keyboard lagakar
Recovery mode nahi hota hai kya isme ho to kya kya battan dabane hai jisse recovery mode ajaye
https://www.kazmielecom.tech/2020/03/21/how-to-reset-smart-tv.html
Try this otherwise load firmware
Please share real method of upgrade this firmware. Thanks
watch youtube tutorials
PLEASE KK.M368.AB BORD SOFTWERE
I did extract file but bin file doesn’t show
kK.v35x.818a
Upload software link
Kk.v35x.818 is same as kk.v35x.801A in smarttv.can I upload kk.v35x.801A in smarttv instead of kk v35x.818A
not tried but i hope no issue
I am trying to download KK.V35X.801A firmware….but the only can find the first five parts of the file…where can i find the last five parts…please help
all parts link given and working fine
Bhai kk.v35x.801a in 1920×1080 download nahin ho raha help me please
hi…sir
pendrive software not detecting
plese help me sir
change pendrive
sonuhasmi8094@gmail.com
9324918094
Board chahiye
Pb801 smart Android
1gb 8gb
sir plz service menu code batain
Menu 1147 ya Source 2580 check karen nai to one by one try karen
https://www.kazmielecom.tech/all-led-tv-factory-menu-code/
