JUG7.820.1047 Software Free Download

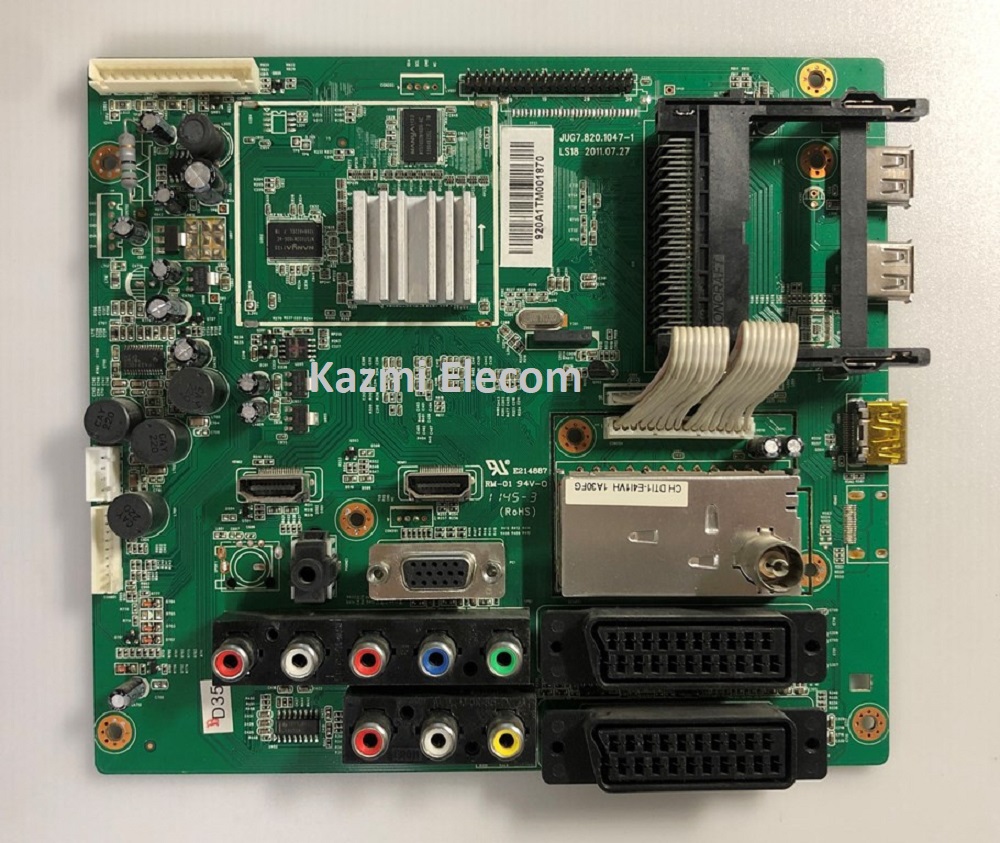

JUG7.820.1047 LED TV Board

JUG7.820.1047 is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. It is designed to support Full HD LCD/LED Panel Screens. This is a Non-Combo Board. The main power module and LED Backlight Inverter Circuit module are required separately but ATV Card is built into this motherboard. This board has all the features and connectivity ports as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart. Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. JUG7.820.1047 firmware files are given below for the technician’s support.

General Specifications:

Brand/Mark: Universal Board

Model: JUG7.820.1047

Main Chip:

Product: LCD/LED TV

LED Backlight: mA

Flash IC: 4Mb

Sound Chip:

Tuner IC:

Screen supported: 32-42 inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 12V DC

Firmware Name:

Firmware Type: Backup Dump

Service Code:

Source/Input

Note: The following firmware is a backup file and can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download your required resolution firmware/software and then extract it, you will get the folder. Now copy the files to USB or write flash by a programmer. For more Details about the download process watch the video Click Here

JUG7.820.1047 firmware for free download:

• JUG7-820-1047-1 ARTEL-32-DUMP
• JUG7-820-1047-1 ARTEL-42-DUMP
• JUG7-820-1047-1 CHANGHONG-32-DUMP
• JUG7-820-1047-1 ENIE-42-DUMP
• JUG7-820-1047-1 HEMA-42-DUMP

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
