JUC7.820.00296435 Software Free Download

JUC7.820.00296435 FHD Smart Board

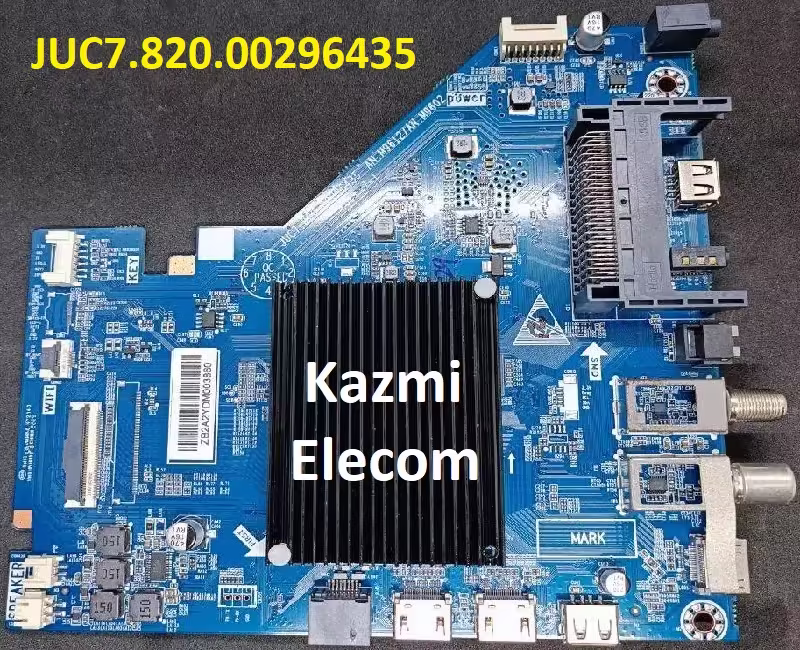

JUC7.820.00296435 is a smart Android LED TV controller motherboard. Its supported resolution is 1080P Full HD 1920×1080. This board is Non-Combo. To complete the LED TV setup with this board, the main input power supply module and the LED Backlight driver inverter module will be required separately. The RAM capacity of this board is 1.5 G-Byte and the ROM storage memory is 8 G Byte. This board has the option to receive analog TV system signals as well as digital TV system signals.

Download Here

JUC7.820.00296435 LED TV driver board has all the connectivity input-output interfaces such as HDMI input, CI slot, SPDIF, USB interface, RCA input, Headphones output interface, Ethernet connectivity (RJ45), and dual tuners. Special features in the software of this board are Voice control, sleep timer, video recording (PVR), EPG, Time Shift, DLNA, and child protection. This board can support digital formats such as AAC, AC3, AVI, DivX, MKV, MOV, MP4, MPEG4, WMA, XviD, and m4a.

JUC7.820.00296435 General Information:

Model Name: JUC7.820.00296435

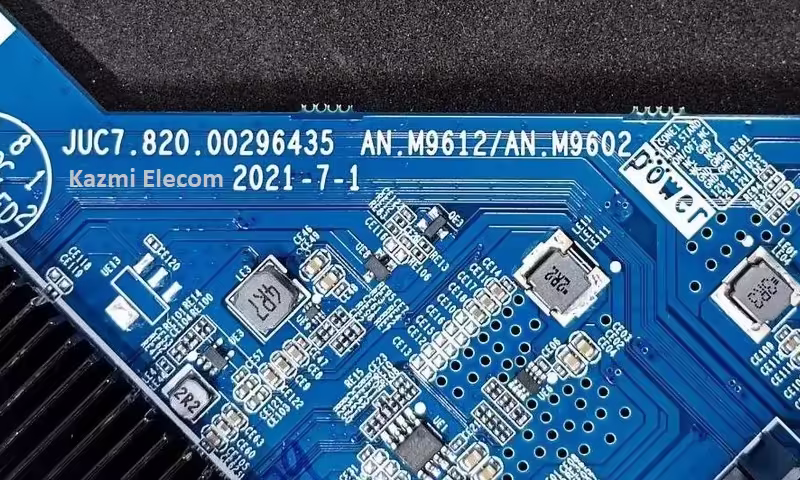

Chassis: AN.M9612/AN.M9602

Main Chipset: MediaTek

Android Version: 9.0

Resolution: 1920×1080

Processor: MediaTek

RAM: 1.5 GB

ROM: 8 GB EMMC

EMMC:

Aspect Ratio: 16:09

Audio Power Output: 16w (8×2)

System: PAL//SECAM/NTSC

Dual Tuner: Yes

Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S2

HDMI: 3

USB Ports: 2

VGA: No

SPDIF: No

Scart: No

CI+=Yes

LAN: Yes (RJ45)

Firmware:

Firmware Type: EMMC Backup Dump

JUC7.820.00296435 Technical Specifications:

Manufacturer: China
Display Type: 2K
Screen Resolution: Full HD (1920×1080)
SMART TV support: Yes
Digital tuner: Yes
Panel type: LED
Screen format: 16:9
Wi-Fi Connectivity: Yes
Inputs: AV, HDMI x3, USB x2, Ethernet (RJ-45), Wi-Fi 802.11ac, CI
Outputs: Optic
Sound system: 2×8 W
Dolby: Yes
Digital Format Supported: AAC, AC3, AVI, DivX, MKV, MOV, MP4, MPEG4, WMA, XviD, m4a
Supported formats: MPG, MPEG, MPEG2-PS, MP4, MKV, AVI, ASF, FLV, MP3, JPEG, PNG, BMP
Operating system: Linux
Refresh rate: 60 Hz
Wireless data transmission: Miracast
Contrast Ratio: 3,000,000: 1
Response Time: 2ms
Color System: PAL, SECAM, NTSC
Digital Tuner: DVB-T, DVB-T2, DVB-C, DVB-S2
TV System: PAL / NTSC
Operating System Linux
Component In (RGB Cable) Yes
Composite In (Audio Video Cable) Yes
Headphone Jack Yes
Sound Technology Dolby Digital Decoder
Wi-Fi Type 2.4GHz Wi-Fi 802.11 b/g/n 2T2R
CPU Dual Core A9 896MHz
GPU Dual Core MALI 400MHz
RAM/ROM 1.5 G Byte DDR3 / 8G Byte eMMC

How to Write JUC7.820.00296435 EMMC Backup:

Download the given JUC7.820.00296435 EMMC backup shared in this post below
Note the EMMC Pinouts
Jtag the mainboard with the Programming Tool
Write the EMMC data
Done.

Note: The following JUC7.820.00296435 firmware is USB bootable and a backup dump file. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
