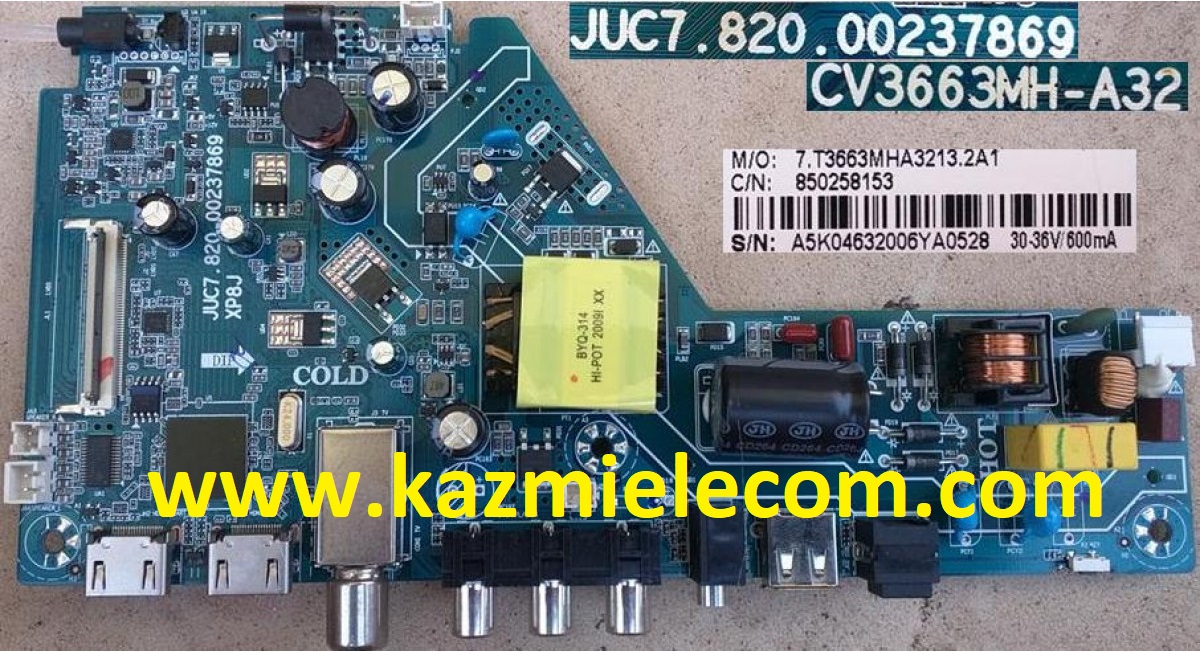

JUC7.820.00237869 LED TV Board
JUC7.820.00237869 is a simple ATV Driver Motherboard designed for LCD/LED TVs. This board is suitable for the Asia Pacific and the Middle East markets. This is a Combo Board. The main power module LED Backlight Inverter Circuit module and ATV Card are built into this motherboard. This board has all the features as per the latest requirements like HDMI input, USB interface, PC input, Component Input, TV, and Scart.JUC7.820.00237869 firmware files are given below for the technician’s support.
General Specifications:
Brand/Mark: Universal Board
Model: JUC7-820-00237869 XP8J, CV3663MH-A32
Main Chip: 3663MHA
Product: LED TV
LED Backlight: 30-36v 600mA
Flash IC: 4 Mb
Sound Chip:
Tuner IC:
Screen supported: 32 inch
Resolution: Up to 1920×1080
Panel Voltage: 5V, 12V
Power Input: 220V AC
Service Code:
Source/Input 2580
Note: The following given Software is a backup Dump and can be written by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First Check the mainboard and then install the software. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
JUC7.820.00237869 firmware for free download:
- JUC7-820-00237869-XP8J BRAVIS-32
- JUC7-820-00237869-XP8J CLASS PRO-32
- JUC7-820-00237869-XP8J HYUNDAI-32
- JUC7-820-00237869-XP8J SHINON-32
- JUC7-820-00237869-XP8J SIRAGON-32
- JUC7-820-00237869-XP8J THOMSON-32
For video tutorials, visit “Kazmi Elecom” my YouTube channel.
