JUC7.820.00208835 Software Free Download

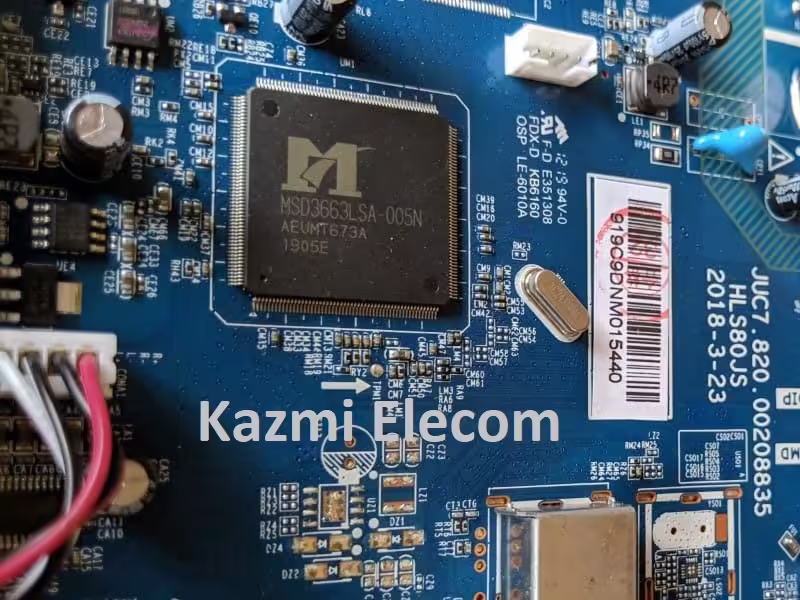

JUC7.820.00208835 LED TV Board

JUC7.820.00208835 is a simple ATV&DTV Driver Motherboard designed for LCD/LED TVs. It is designed to support Full HD LCD/LED Panel Screens. This board is suitable for the Asia Pacific and the Middle East markets. This is a three-in-one Combo Board. The main power module LED Backlight Inverter Circuit module and ATV Card are built into this motherboard. This board has all the features and connectivity ports as per the latest user requirements like two HDMI inputs, USB interface, Mini Component Input, Dual Tuner, and VGA interface not available.

Download Here

JUC7.820.00208835 is intended to receive satellite and digital signals and analog TV signals with dual DVB (Digital Video Broadcasting) and Satellite tuner support. Its USB interface can be used for updating software/firmware and for playing multimedia files as well. It can also support Earphone output. JUC7.820.00208835 firmware dump files are shared in this post for repairing purposes.

General Specifications:

Brand/Mark: Universal Board

Model: JUC7.820.00208835

Chassis: HLS80JS

Main Chip: MSD3663LSA-005N

Product: LCD/LED TV

LED Backlight: mA

Flash IC: 8Mb

Sound Chip: OB6228UP

Tuner: DVB + SAT

Screen supported: 32-inch

Resolution: Up to 1920×1080

Panel Voltage: 5V, 12V

Power Input: 220V AC

Firmware Name: NA

Firmware Type: Backup Dump

Service Code:

Source/Input 2580 or Menu 1147

Caution:

All the pictures and specification details related to JUC7.820.00208835 in this post are for reference only. If you are a user and do not have any experience of repairing then it is better to visit the nearest technician first without loading the software/firmware. Sometimes, the fault is different as per the visual observations. So, please do not try it at home.

Pros:

There are many advantages to installing the given JUC7.820.00208835 USB software or backup dump file. A few benefits are described below:

The dead board can be recovered and operational by loading the given software backup file
Remote and Logo may change at your own choice to satisfy the customer
Money saving instead of changing the mainboard
Time-saving instead of arranging a new board
Customer satisfaction to do an urgent job
Skill and confidence improvement

Cons:

There may be some disadvantages to installing the given JUC7.820.00208835 USB software or backup dump file. But it depends on the technician or user as per his understanding. A few drawbacks are described below:

The working board may go to the standby position
Remote Control may not work and the Logo may change by writing the given software
Panel screen parameters may be changed

JUC7.820.00208835 Version Upgrade:

Please note that the installed version in this board is the final version. So, no need to upgrade the software if the board is working normally. Only in case the default software is malfunctioning due to some bugs then the manufacturer will provide the software update. Otherwise, no version update is issued.

JUC7.820.00208835 Board Replacement:

If the board is completely dead and no chance to repair then replace the same board as already installed. And if the same board MSD3663LSA-005N chipset is not available on the market then search for the board that has the same specifications and latest features to avoid any difficulties. If the backlight module is faulty in the combo board then you can install only the backlight module separately then no need to change the complete board.

Note: The following firmware is USB bootable and a backup file that can be loaded by a programming tool. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.
