Jainex 53u.11.2 new Firmware Free Download

Jainex 53u.11.2 new

Basic Info:

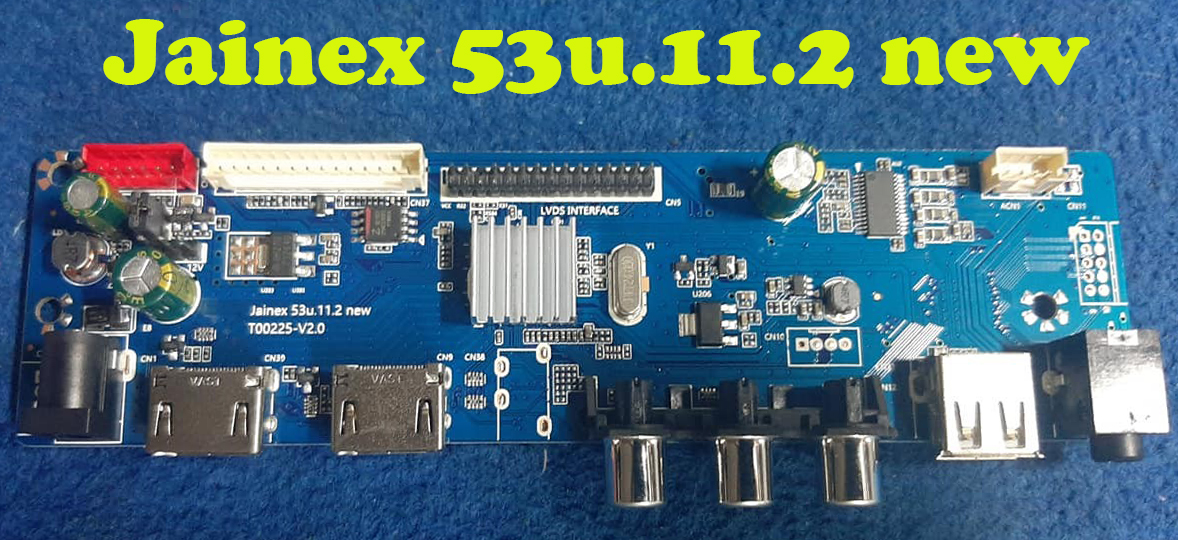

Model No. Jainex 53u.11.2 new T00225-V2.0

Main Chipset: TSUMV53

Tuner: Not Available in this Model

Sound IC: OB6228VP

Flash IC: 4Mb

Display Format: up to 1920×1080

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

VGA: Not Available

Tuner: Not Available

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for motherboard only)

Maximum Current for USB: 500mA

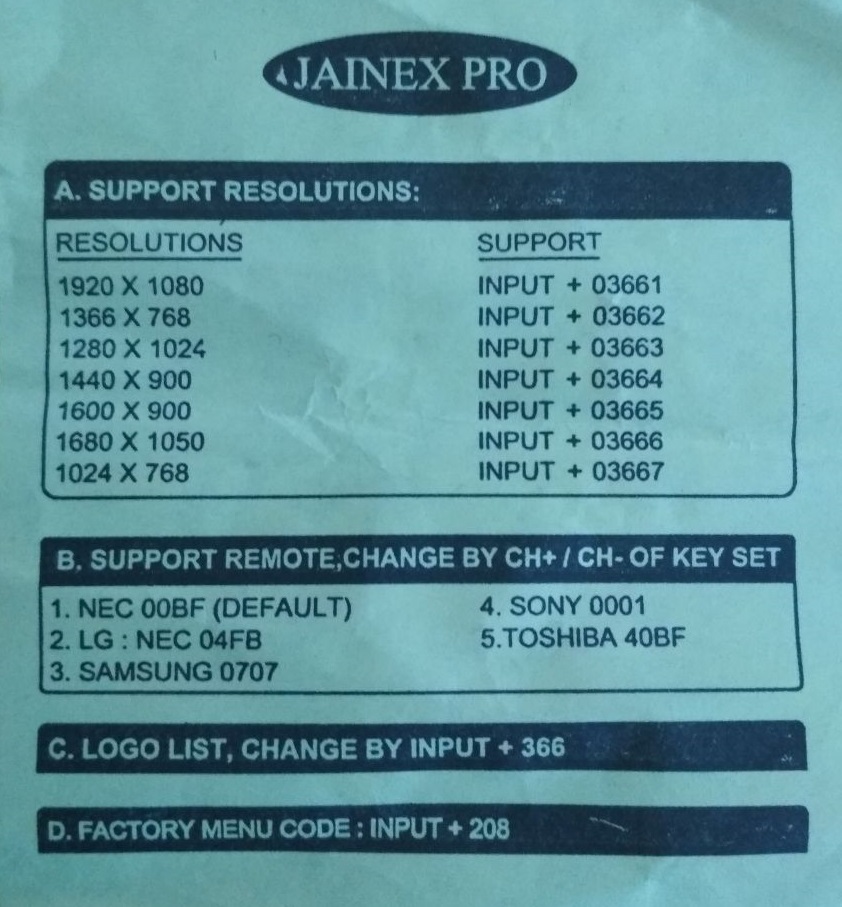

Factory Service Mode:

Source/Input 208

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

Jainex 53u.11.2 new Firmware Free Download:

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	Jainex 53U.11.2 new_All Resolution_Dump	Download

For video tutorials, visit “Kazmi Elecom” my youtube channel.
