ITV.V59.A81.13 Software Free Download

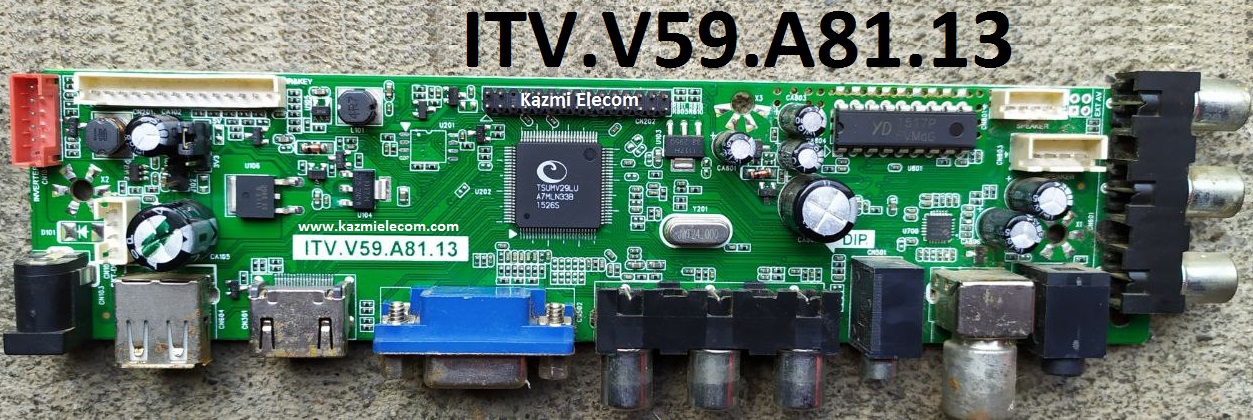

ITV.V59.A81.13 Universal Board

ITV.V59.A81.13 is a universal jumper board with multi-resolution panel screen-supported software.

Basic Info:

Model No. ITV.V59.A81.13

Main Chipset: TSUMV29LU

Display Format: up to 1920×1080

Aspect Ratio: 4:3, 16:9 & 16:10

Tuner:

Sound: 1517P

Bin Name:

Itv.v59.A81.13

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Copy the Required Firmware/software into the FAT32 USB Disk
Plugin the U disk into the Mainboard USB port of the LCD/LED TV
Switch ON the power and Wait until even the IR indicator LED stops flashing
Done. Unplug the U-disk (It will take a maximum of half a minute to upgrade firmware)

Factory Service Mode:

Menu+1147

Note:  The following firmware is a backup dump and can be written by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. First, check and verify the main board then install software. If you are new and do not have enough knowledge of loading/installing software/firmware or dump files, or facing any issues during firmware installation then visit and read here first.

How to Download:

Download your required resolution file and then extract it you will get the folder. For More Details about the download process, watch the video Click Here

ITV.V59.A81.13 Firmware All resolutions Free Download:

Kazmi-Elecom

For video tutorials, visit “Kazmi Elecom” my YouTube channel.
