ITV.V59.671 Firmware Free Download

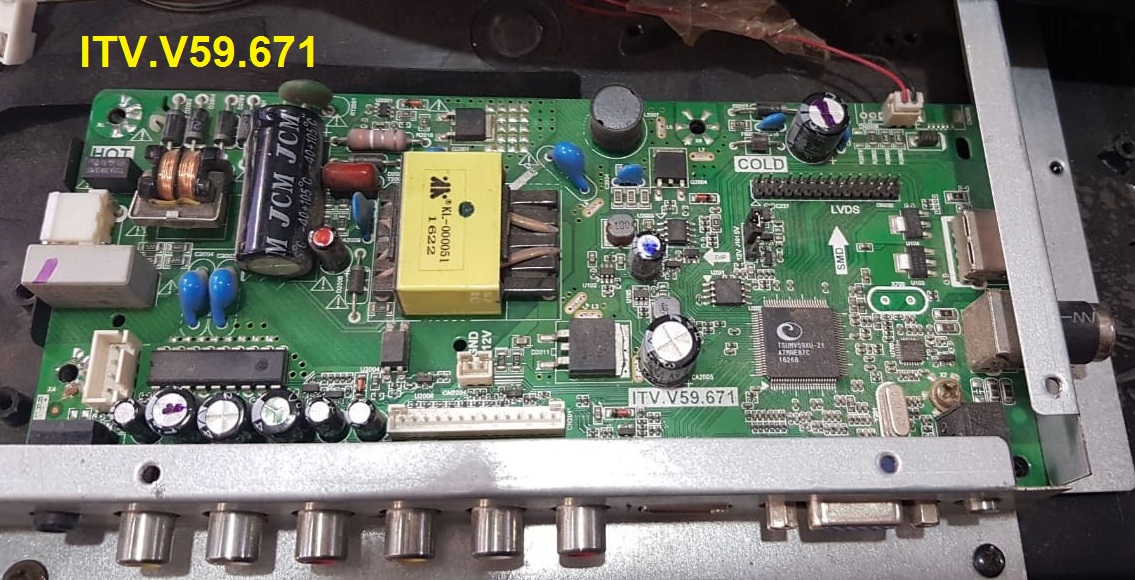

ITV.V59.671 Universal Board

Basic Info:

Model No. ITV.V59.671 (Combo Board)

Main Chipset: TSUMV59XU-Z1

LED Backlight: 220mA to 300mA

Display Format: up to 1920×1200

Panel Supported: 19″ t0 26″

Aspect Ratio: 4:3, 16:9 & 16:10

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single-channel or Dual-channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface, and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohms)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb), Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220V

Maximum Current: 3000mA (Without Panel)

Standby Power: <0.2W (for the motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

Step 1: Empty the U disk

Step 2: Copy the corresponding resolution program (*. Bin file) to the U disk.

Step 3: Connect the U disk with the Mainboard

Step 4: Connect the Keypad and IR also

Step 5: Connect the power supply, and check the keyboard light. If there is a flashing light, that is in the written program, waiting for the light to turn to Green, work is done. If there is no flashing light, please cut off the power supply, then connect the USB once again, then connect the power supply again,

Factory Service Mode:

Menu+1147

Note: Following firmware collection is a Backup Dump saved from working LED TVs that can be loaded by a programmer. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of uploading/downloading the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download ITV.V59.671 Firmware File:

Download your required file of the following firmware and then extract it you will get the folder. Now you can write the file with a programming tool. for More Detail about the download, process watch the video Click Here

ITV.V59.671 Firmware All resolutions Free Download Here :

S.NO.	BOARD/DESCRIPTION	DOWNLOAD LINK
1	ITV.V59.671_1366x768_Samsung_Backup_Dump	Download
