ITV.V59.031.13 Software Free Download All Resolution

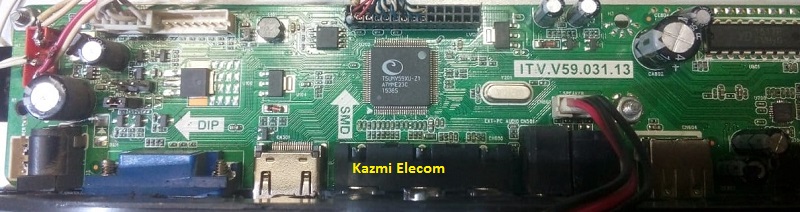

ITV.V59.031.13 Universal LCD/LED Controller Board

Basic Info:

Model No. ITV.V59.031.13

Main Chipset: TSUMV59XU-Z1

Trademark: CXEL

Display Format: up to 1920×1200

Aspect Ratio: 4:3, 16:9 & 16:10

Board Size: 168.00 X 42.0 (mm)

Itv.v59.031.13

General Specifications:

TV System: PAL/SECAM/NTSC

Panel Interface: Single channel or Dual channel LVDS

Key Button Functions: CH-/CH+/MENU/VOL-/VOL+Souce/Power

Multi-Language OSD: Yes

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 3 Watt (8 ohm)

Panel Voltage: +3.3V/+5V/+12V DC (jumping cap setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

USB File Format: Audio (Mp3, wma, m4a/aac), Video (avi, mp4, ts/trp, mkv/mov, mpg, dat, vob, rm/rmvb),                                                 Picture (Jpg, jpeg, bmp, png), Text (text)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: DC +12 Volt

Maximum Current: 2000mA (Without Panel)

Standby Power: <0.2W (for motherboard only)

Maximum Current for USB: 500mA

How to Upgrade Firmware:

  1. Copy the Required Firmware/software in FAT32 USB Disk
  2. Plug in the U disk into the Mainboard USB port of LCD/LED TV
  3. Switch ON the power and Wait even IR indicator led stops flashing
  4. Done. Unplug the Udisk (It will take max 1 min to upgrade firmware)

Factory Service Mode:

Menu+1147

Kazmi-Elecom

Note: The following given software/firmware is USB upgradeable. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.

How to Download:

Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here

ITV.V59.031.13 Firmware All resolutions Free Download Here :

Kazmi-Elecom

S.NO.BOARD/DESCRIPTIONDOWNLOAD LINK
1ITV.V59.031.13_1024X768_USBDownload
2ITV.V59.031.13_1280X1024_USBDownload
3ITV.V59.031.13_1366X768_USBDownload
4ITV.V59.031.13_1440X900_USBDownload
5ITV.V59.031.13_1680X1050_USBDownload
6ITV.V59.031.13_1920X1080_USBDownload
