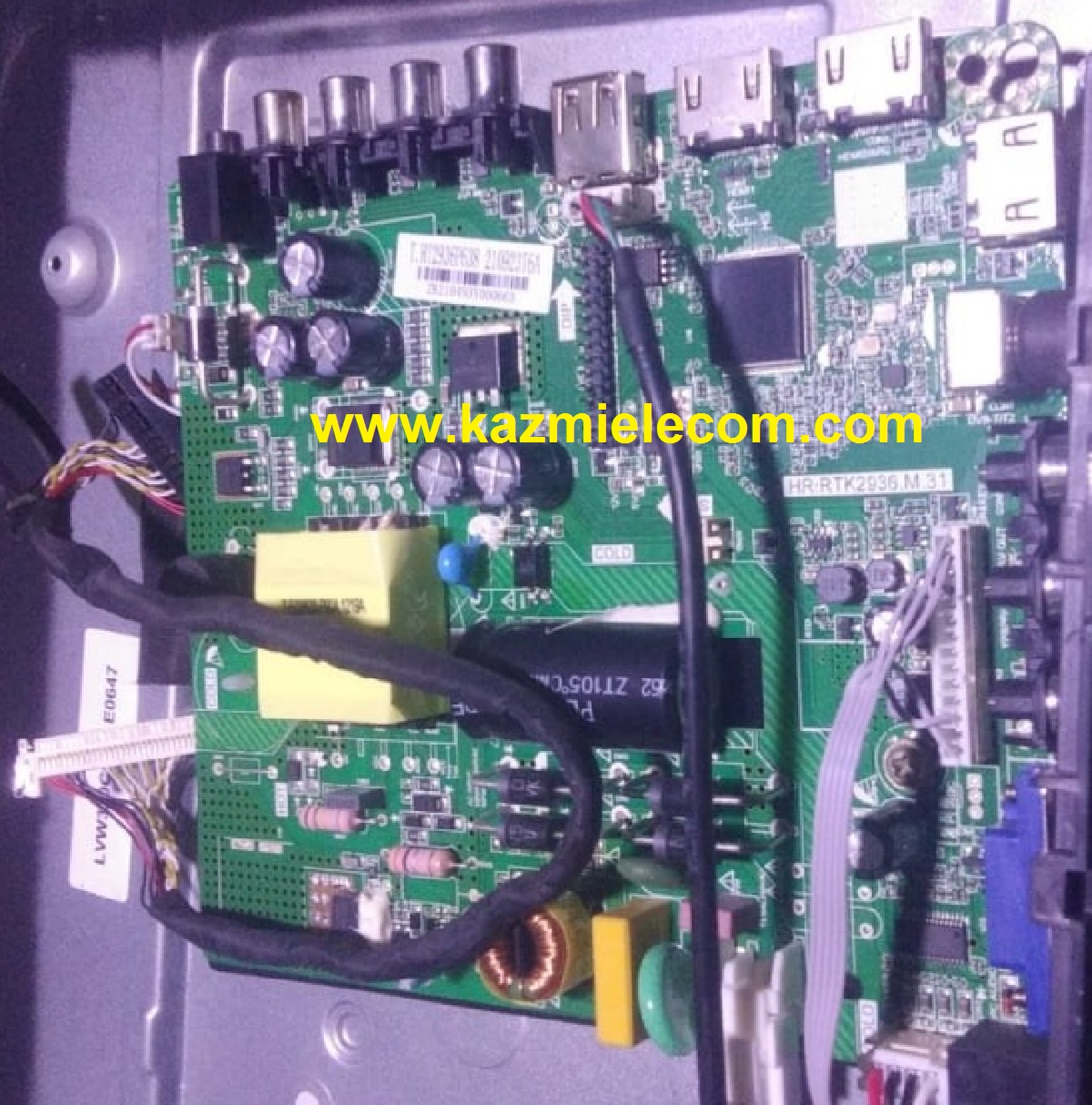

HR.RTK2936.M.31 LED TV Board
HR.RTK2936.M.31 is an LCD LED TV Board. It is suitable for the LVDS interface and supports more than 32-46 inches LED panels, with maximum resolution up to 19201080. HR_RTK2936.M.31 is a three-in-one (combo) board i.e power card, backlight driver module, and ATV board is builtin into it. HR-RTK2936.M.31 has multiple input interface ports like USB, HDMI, AV, VGA port, and VGA port for computer connectivity. The Wireless Module interface can also be connected to it.
General Specifications:
Model: HR.RTK2936.M.31
Main Chipset: RTD2936HBZ
Resolution Supported: 1920×1080
Flash Memory: 25Q64, 25Q128
Audio Output Power: 2X5 W (8Ω)
Backlight: 30 V to 94 V, 600mA
Backlight Power: 45 W
Tuner: DVB-T/T2
WIFI/Miracost: Optional
Service Code: Menu 8896
Note: The following given software/firmware is USB upgradeable and Backup Dump Files. Kazmi Elecom Team is not responsible for any type of damage/loss as a result of loading/installing the firmware. If you are new and do not have enough knowledge of loading or installing software/firmware or dump files then read here first.
How to Download:
Download the following given firmware/software and then extract you will get the folder. Now copy the files to USB. for More Detail about download process watch the video Click Here
HR.RT2936.M.31 Firmware file for Free Download:
